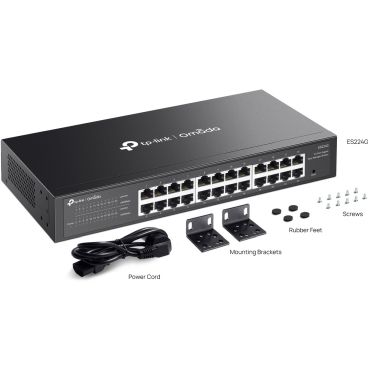

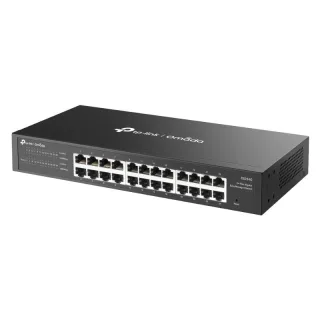

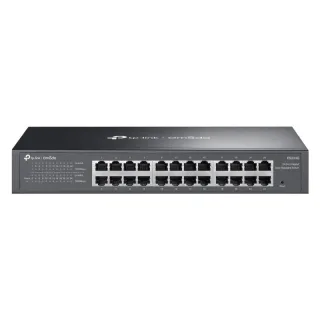

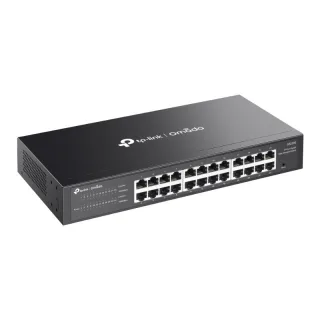

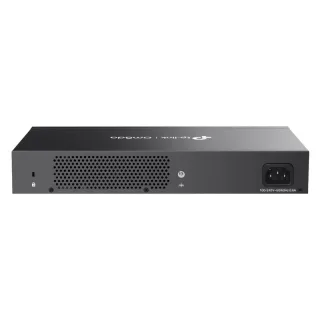

TP-Link ES224G
Interruptor gestionable de 24 puertos Gigabit para redes de vigilancia y oficina
24 puertos GigabitDiseño sin ventiladorCaja de aceroInstalación en rackIntegración OmadaBloqueo físico
Este interruptor de red de 24 puertos ofrece una solución robusta y silenciosa gracias a su diseño sin ventilador y carcasa de acero duradero. Ideal para instalaciones en rack o escritorio, garantiza una conexión estable con puertos Gigabit que soportan negociación automática y detección de bucles para proteger tu red de fallos.
Gestiona tu infraestructura de forma centralizada mediante la suite Omada, ya sea desde el controlador en la nube, hardware o software. Disfruta de funciones avanzadas como VLAN, aislamiento de puertos, control de calidad de servicio y diagnóstico de cables, todo configurado fácilmente para optimizar el rendimiento de tu red de seguridad.
Especificaciones técnicas
SOFTWARE FEATURES
Quality of ServicePort-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control ?L2 FeaturesStatic Link Aggregation • Loop Prevention / Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDPL2 MulticastIGMP Snooping - IGMP v1/v2/v3 Snooping - Fast LeaveVLANMTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VIDTransmission MethodStore-And-ForwardOmada AppYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.Centralized ManagementOmada Cloud-Based Controller • Omada Hardware Controller • Omada Software ControllerCloud AccessYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.Zero-Touch ProvisioningYes. Requires the use of Omada Cloud-Based ControllerManagement FeaturesWeb-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery † • Batch Configuration † • Batch Firmware Upgrading † • Unified Configuration †CertificacionesFCC, CE, RoHSPackage ContentsES224G • Power Cord • Rubber Feet • Mounting Brackets • Screws • Installation GuideEnvironmentOperating Temperature: -5?~50? (23?~122?) • Storage Temperature: -40?~70? (-40?~158?) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing
HARDWARE FEATURES
Interfaz24× 10/100/1000 Mbps RJ45 Ports • Auto-Negotiation/Auto MDI/MDIXFan QuantityFanlessInstalaciónDesktop • RackmountablePhysical Security Lock√Alimentación100-240 V~50/60 HzDimensiones11.6 × 5.5 × 1.7 in (294× 140 × 44 mm)Surge Protection±6kVSwitching Capacity48 GbpsPacket Forwarding Rate35.7 MppsMAC Address Table8KPacket Buffer Memory4 MbitJumbo Frame15 KB
Características
24× 10/100/1000Mbps RJ45 portsEasy to UseSupports plug-and-play for instant connectivity and simple configuration for additional featuresCentralized Cloud Management via the web or the Omada app†VLAN, Port Isolation, Cable Test?, QoS? for reliable surveillance networkingAutomatic Loop Prevention and IGMP SnoopingFanless design for silent operationDurable metal casing and desktop/rack mounting design
