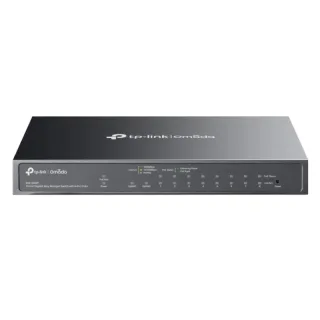

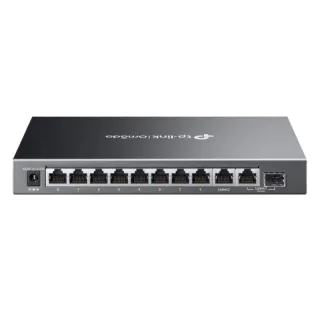

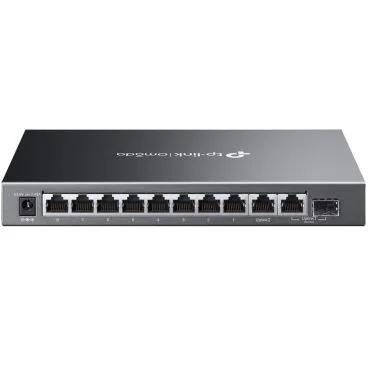

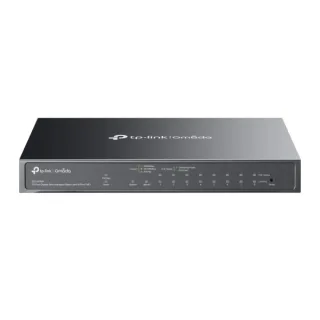

TP-Link ES210GMP
Interruptor gestionable fácil de 10 puertos Gigabit con 8 puertos PoE+
8 puertos PoE+123 W de potenciaPuerto Combo SFPSin ventiladorReinicio automáticoVLAN 802.1QControl OmadaProvisioning cero
Conecta hasta 8 dispositivos con alimentación PoE+ de hasta 30W por puerto y un total de 123W disponibles. Este interruptor de escritorio o pared ofrece una gestión centralizada a través de la aplicación Omada o el controlador en la nube, facilitando la configuración remota y el diagnóstico de cables sin complicaciones técnicas.
Diseñado para redes de videovigilancia y puntos de acceso Wi-Fi, cuenta con reinicio automático de alimentación para recuperar dispositivos caídos y protección contra sobretensiones de ±6kV. Su capacidad de 20 Gbps y la detección de bucles garantizan una transmisión estable y segura, ideal para entornos profesionales que requieren fiabilidad y simplicidad en la instalación.
Especificaciones técnicas
SOFTWARE FEATURES
Quality of ServicePort-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control ?L2 FeaturesStatic Link Aggregation • Loop Prevention / Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDPL2 MulticastIGMP Snooping - IGMP v1/v2/v3 Snooping - Fast LeaveVLANMTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VIDTransmission MethodStore-And-ForwardOmada AppYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.Centralized ManagementOmada Cloud-Based Controller • Omada Hardware Controller • Omada Software ControllerCloud AccessYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.Zero-Touch ProvisioningYes. Requires the use of Omada Cloud-Based ControllerManagement FeaturesWeb-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery † • Batch Configuration † • Batch Firmware Upgrading † • Unified Configuration †CertificacionesFCC, CE, RoHSPackage ContentsES210GMP • Power Adapter • Installation Guide • Rubber FeetEnvironmentOperating Temperature: 0?~40? (32?~104?) • Storage Temperature: -40?~70? (-40?~158?) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing
HARDWARE FEATURES
Interfaz8× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3at PoE+ and 802.3af PoE) • 1× 10/100/1000 Mbps RJ45 Port • 1× Gigabit SFP/RJ45 Combo Port • Auto-Negotiation/Auto MDI/MDIXFan QuantityFanlessInstalaciónDesktop • Wall MountPhysical Security Lock√AlimentaciónDC Power Adapter (Output: 53.5 VDC/ 2.43 A)PoE Ports (RJ45)Standard: 802.3af PoE and 802.3at PoE+ compliant • PoE Ports: 8 ports • PoE Budget: 123W available for all PoE+ ports, 30W max per port • PoE Auto Recovery ‡ • Up to 250m PoE transmission distanceDimensiones8.2×4.9×1.0 in (209×126×26 mm)Surge Protection±6kVSwitching Capacity20 GbpsPacket Forwarding Rate14.88 MppsMAC Address Table8KPacket Buffer Memory4 MbitJumbo Frame15 KB
Características
Easy to UseSupports plug-and-play for instant connectivity and simple configuration for additional features
