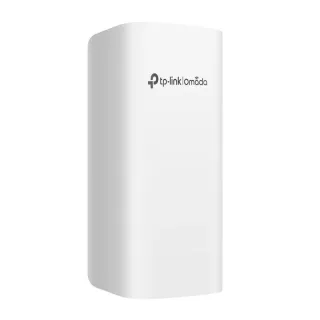

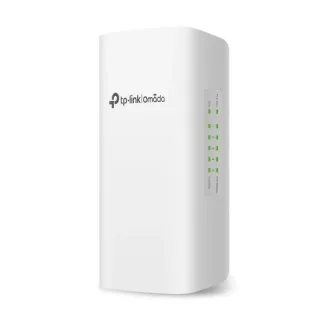

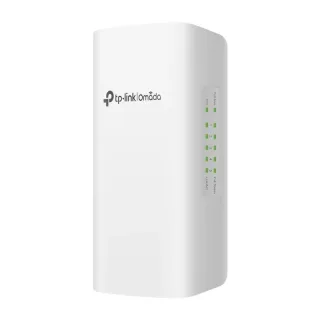

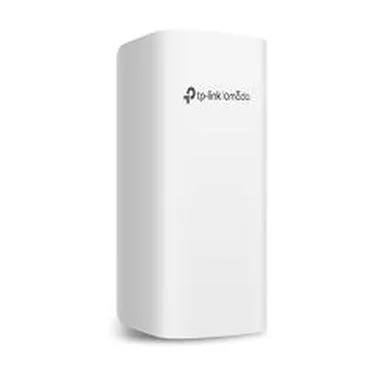

TP-Link SG2005P-PD
Switch Gigabit gestionable de 5 puertos con alimentación PoE++ y PoE+ para exteriores
5 puertos Gigabit1 puerto PoE++ In4 puertos PoE+ OutResistente a intemperieGestión centralizada OmadaSoporte IPv6
Este switch de 5 puertos está diseñado para instalaciones de exterior, soportando inclemencias como agua, polvo y radiación UV. Ofrece una capacidad de conmutación de 10 Gbps y una tasa de reenvío de 7,44 Mpps, garantizando un rendimiento estable y rápido incluso en entornos exigentes.
Disfruta de una gestión simplificada a través de la plataforma Omada, que permite el control centralizado desde la nube o mediante controladores de hardware. Configura VLANs, listas de control de acceso y políticas de QoS para optimizar el tráfico de red, asegurando que las aplicaciones críticas funcionen sin interrupciones.
Especificaciones técnicas
CARACTERÍSTICAS DE SOFTWARE
Calidad de Servicio802.1p CoS/DSCP priority • 8 priority queues • Priority Schedule Mode - SP (Strict Priority) - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port/Flow-based Rating Limit • Smoother Performance • Storm Control - Multiple Control Modes(kbps/ratio) - Broadcast/Multicast/Unknown-Unicast ControlCaracterísticas L2 y L2+32 IP Interfaces - Support IPv4/IPv6 Interface • Static Routing - 32 IPv4/IPv6 Static Routes • DHCP Server • DHCP Relay - DHCP Interface Relay - DHCP VLAN Relay • DHCP L2 Relay • Static ARP • Proxy ARP • Gratuitous ARP • Link Aggregation - Static link aggregation - 802.3ad LACP - Up to 8 aggregation groups and up to 8 ports per group • Spanning Tree Protocol - 802.1D STP - 802.1w RSTP - 802.1s MSTP - STP Security: TC Protect, BPDU Filter/Protect, Root Protect • Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - CPU Mirroring - One-to-One - Many-to-One - Flow-Based - Ingress/Egress/Both • Device Link Detect Protocol (DLDP) • 802.1ab LLDP/ LLDP-MEDMulticast L2511 IPv4, IPv6 shared multicast groups • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave - IGMP Snooping Querier - Static Group Config • Multicast VLAN Registration (MVR) • Multicast Filtering • MLD Snooping - MLD v1/v2 Snooping - Fast Leave - MLD Snooping Querier - Static Group Config • Limited IP Multicast (256 profiles and 16 entries per profile)Características AvanzadasAutomatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot ScheduleSoporte IPv6IPv6 Dual IPv4/IPv6 • Multicast Listener Discovery (MLD) Snooping • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications - DHCPv6 Client - Ping6 - Tracert6 - Telnet (v6) - IPv6 SNMP - IPv6 SSH - IPv6 SSL - Http/Https - IPv6 TFTPVLANVLAN Group - Max. 4K VLAN Groups • 802.1Q tag VLAN • MAC VLAN: 12 Entries • Protocol VLAN • GVRP • Voice VLANLista de Control de AccesoSupport up to 230 entries • Time-Range - Time Slice - Week Time-Range - Absolute Time-Range - Holiday • Time-based ACL • MAC ACL - Source MAC - Destination MAC - VLAN ID - User Priority - Ether Type • IP ACL - Source IP - Destination IP - IP Protocol - TCP Flag - TCP/UDP Source Port - TCP/UDP Destination Port - DSCP/IP TOS • IPv6 ACL • Combined ACL • Rule Operation - Permit/Deny • Policy Action - Mirror - Rate Limit - Redirect - QoS Remark • ACL Rules Binding - Port Binding - VLAN Binding • Actions for flows - Mirror (to supported interface) - Redirect (to supported interface) - Rate Limit - QoS RemarkSeguridadAAA • 802.1X - Port-based authentication - MAC (Host) based authentication - Authentication Method includes PAP/EAP-MD5 - MAB - Guest VLAN - Support Radius authentication and accountability • IP/IPv6-MAC Binding - 512 Binding Entries - DHCP Snooping - DHCPv6 Snooping - ARP Inspection - ND Detection • IP Source Guard - 253 Entries - Source IP+Source MAC • IPv6 Source Guard - 183 Entries - Source IPv6 Address+Source MAC • DoS Defend • Static/Dynamic/Permanent Port Security - Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control - kbps/ratio control mode • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC-based access controlMIBsMIB II (RFC1213) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIBs • RMON MIB(RFC1757, rmon 1,2,3,9)Omada AppYes, through • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software ControllerGestión CentralizadaOmada Cloud-Based Controller • Omada Hardware Controller • Omada Software ControllerAcceso a la nubeYes, through • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software ControllerAprovisionamiento sin contactoYes. Requiring the use of Omada Cloud-Based Controller.Funciones de gestiónWeb-based GUI • Command Line Interface (CLI) through telnet • SNMPv1/v2c/v3 • SNMP Trap/Inform • RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • SNTP • System Log
CARACTERÍSTICAS DE HARDWARE

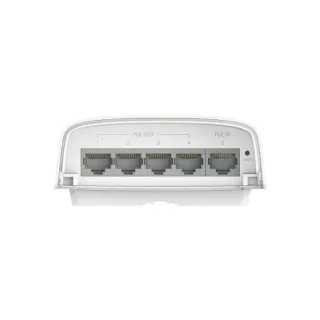

Estándares y ProtocolosIEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1xInterfaz1× 10/100/1000 Mbps RJ45 PoE In Ports (compliance with 802.3af/at/bt) • 4× 10/100/1000 Mbps RJ45 PoE Out Ports (compliance with 802.3af/at PoE)Medios de Red10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)Cantidad de VentiladoresFanlessFuente de AlimentaciónObtain Power from 802.3af/at/bt PoE SourcePuertos PoE (RJ45)PoE In Port: Port 5, Compliance with 802.3af/at/bt • PoE Out Ports: Ports 1-4, compliance with 802.3af/at PoE • PoE Power Budget: -64 W when powered by 802.3bt Type 4 (90 W) -44 W when powered by 802.3bt Type 3 (60 W) -19 W when powered by 802.3at -6 W when powered by 802.3afDimensiones3.9 × 1.5 × 6.7 in (100 × 38.5 × 170 mm)Consumo de Potencia Máximo71.5 W (when powered by 802.3bt Type 4 (90 W))Disipación máxima de calor243.99 BTU/hr (when powered by 802.3bt Type 4 (90 W))
RENDIMIENTO
Capacidad de Conmutación10 GbpsTasa de Reenvío de Paquetes7.44 MppsTabla de Direcciones MAC8kMemoria del Buffer de Paquete4.1 MbitJumbo Frame9 KB
Otros

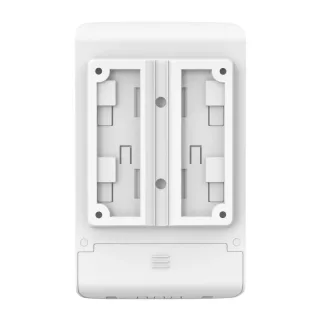

CertificacionesCE, FCC, RoHSContenido del PaqueteSG2005P-PD • Mounting Kits • Installation GuideRequisitos del sistemaMicrosoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.Factores AmbientalesOperating Temperature: -40 to 60 °C (-40 to 140 °F) • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
