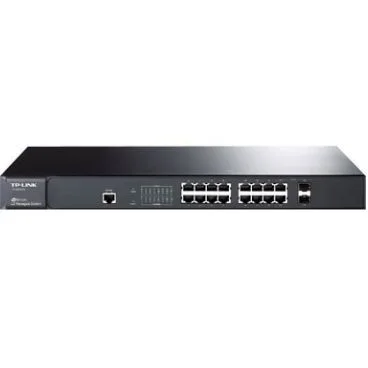

TP-Link TL-SG3216 REACON
Interruptor gestionable L2 de 16 puertos Pure-Gigabit con 2 ranuras SFP combo
16 puertos RJ452 puertos SFP comboBackplane de 32 GbpsIGMP Snooping V1/V2/V3VLAN 802.1QSTP/RSTP/MSTPACL L2-L4QoS 802.1p
Este interruptor gestionable es una solución robusta para redes empresariales que requiere flexibilidad y control total sobre el tráfico de datos. Con 16 puertos Gigabit Ethernet y 2 ranuras SFP combo, ofrece una conectividad versátil para cableado de cobre o fibra óptica, adaptándose a las necesidades de crecimiento de su infraestructura de red.
Dispone de funciones avanzadas de seguridad y gestión como la inspección dinámica de ARP, protección contra ataques DoS y control de tráfico basado en puertos. Su capacidad de gestión mediante interfaz web o línea de comandos, junto con soporte para SNMP y RMON, permite un monitoreo eficiente y una configuración sencilla para optimizar el rendimiento de su red.
Especificaciones técnicas
SOFTWARE FEATURES
Quality of ServiceSupport 802.1p CoS/DSCP priority Support 4 priority queues Queue scheduling: SP, WRR, SP+WRR Port/Flow- based Rate Limiting Voice VLANL2 FeaturesIGMP Snooping V1/V2/V3 802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group) Spanning Tree STP/RSTP/MSTP BPDU Filtering/Guard TC/Root Protect Loop back detection 802.3x Flow ControlVLANSupport IEEE802.1Q with 4K VLAN groups and 4K VIDs Port/ MAC/Protocol-based VLAN GARP/GVRPAccess Control ListL2?L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID Time Range BasedSecurityIP-MAC-Port-VID Binding IEEE 802.1X Port/MAC Based authentication, Radius,Guest VLAN DoS Defence Dynamic ARP inspection (DAI) SSH v1/v2 SSL v2/v3/TLSv1 Port Security Broadcast/Multicast/Unknown-unicast Storm ControlManagementWeb-based GUI and CLI management SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs RMON (1, 2, 3, 9 groups) DHCP/BOOTP Client,DHCP Snooping,DHCP Option82 CPU Monitoring Port Mirroring Time Setting: SNTP Integrated NDP/NTDP feature Firmware Upgrade: TFTP & Web System Diagnose: VCT SYSLOG & Public MIBSCertificacionesCE, FCCPackage ContentsSwitch; Power Cord; Quick Installation Guide; Resource CD; Rackmount Kit; Rubber FeetEnvironmentOperating Temperature: 0?~40? (32?~104?); Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
HARDWARE FEATURES
Standards and ProtocolsIEEE 802.3i,IEEE 802.3u,IEEE 802.3ab,IEEE802.3z, IEEE 802.3ad,IEEE 802.3x,IEEE 802.1d,IEEE 802.1s, IEEE 802.1w,IEEE 802.1q,IEEE 802.1x,IEEE 802.1pNetwork Media10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) 100BASE-FX:MMF,SMF 1000BASE-X: MMF, SMFInterfaz16 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 2 Combo 100/1000Mbps SFP Slots* 1 Console PortDimentions( W x D x H )17.3*8.7*1.7 in.(440*220*44 mm)Alimentación100~240VAC, 50/60HzBandwidth/Backplane32GbpsMAC Address Table8kPacket Buffer Memory512KBPacket Forwarding Rate23.8MppsJumbo Frame10240 Bytes
