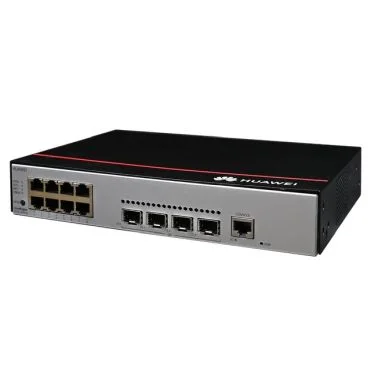

Huawei S5735-L8T4S-A1 Switch gestionable capa3 8xBASE-T 10/100/1000 4xGE SFP 4094 VLANs Guest/Voice/MUX VLAN Static route RIP

Huawei Enterprise S5735-L8T4S-A1 Switch gestionable capa 3 con 8 puertos BASE-T y 4 puertos GE SFP 8x BASE-T 10/100/1000 4x GE SFP 4094 VLANs Static route RIP RIPng OSPF Capacidad switching 24Gbps Este dispositivo de red Huawei Enterprise ofrece una gestión avanzada de capa 3 ideal para entornos empresariales. Cuenta con una capacidad de conmutación de 24Gbps y un rendimiento de reenvío de 18Mpps para asegurar la fluidez de tus datos. Dispone de soporte completo para protocolos de enrutamiento como RIP, RIPng, OSPF y OSPFv3, además de gestionar hasta 4094 VLANs con funciones Guest, Voice y MUX. Su diseño compacto de 1U y alimentación AC integrada lo convierten en una solución robusta y eficiente. Especificaciones técnicas General Item Details Description S5735-L8T4S-A1 (8*10/100/1000BASE-T ports, 4*GE SFP ports, AC power) Part Number 98011284 Model S5735-L8T4S-A1 Item Specification Chassis height [U] 1 U Typical heat dissipation [BTU/hour] 72.34 BTU/hour Maximum heat dissipation [BTU/hour] 89.74 BTU/hour MTTR [hours] 2 hours Availability > 0.99999 Number of card slots 0 Number of fans modules 1 RTC No compatible RPS input No compatible Types of fans Integrado Heat dissipation mode Heat dissipation with fan, intelligent fan speed adjustment Airflow direction Air intake from left and front, air exhaustion from right Certificaciones EMC certification Safety certification Manufacturing certification Red y protocolos Console port RJ45 Eth Management port No compatible USB No compatible Service port surge protection [kV] Common mode: ±7 kV Sistema S5735-L8T4S-A1 (licencia básica incluida) Switch gestionable capa 3 8x BASE-T 10/100/1000 4x GE SFP 4094 VLANs Guest/Voice/MUX VLAN Static route RIP RIPng OSPF OSPFv3 Capacidad de switching 24Gbps Forwarding capacity 18Mpps MTBF 71.82 years Almacenamiento Memory 512 MB Flash memory 512 MB Alimentación Typical power consumption [W] 21.2 W Consumo máximo 26.3 W Static power consumption [W] 14.8 W Number of power slots 0 Redundant power supply No compatible Modo de alimentación AC built-in Tensión de entrada AC input: 100 V AC to 240 V AC, 50/60 Hz Rango de tensión de entrada AC input: 90 V AC to 264 V AC 45 Hz to 65 Hz Maximum input current [A] 0.8 A Power supply surge protection [kV] ±6 kV in differential mode, ±6 kV in common mode PoE No compatible Condiciones de uso Noise at normal temperature (acoustic power) [dB(A)] 43 dB(A) Noise at normal temperature (acoustic pressure) [dB(A)] 31.5 dB(A) Temperatura de funcionamiento 5°C to +50°C (23°F to 122°F) (0 m to 1800 m altitude, non-industrial optical modules) -5°C to +55°C (23°F to 131°F) (0 m to 1800 m altitude, industrial optical modules with transmission distances less than or equal to 10 km) Temperatura de almacenamiento 40°C to +70°C (-40°F to +158°F) Long-term operating relative humidity [RH] 5% to 95%, noncondensing Long-term operating altitude [m(ft.)] 0-5000 m (0-16404 ft.) Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.) Grado de protección IP20 Dimensiones y montaje Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 250.0 mm x 180.0 mm (1.72 in. x 9.84 in. x 7.1 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 250.0 mm x 187.0 mm (1.72 in. x 9.84 in. x 7.36 in.) Dimensions with packaging (H x W x D) [mm(in.)] 90.0 mm x 370.0 mm x 380.0 mm (3.54 in. x 14.57 in. x 14.96 in.) Weight without packaging [kg(lb)] 1.38 kg (3.04 lb) Weight with packaging [kg(lb)] 2.02 kg (4.45 lb)
