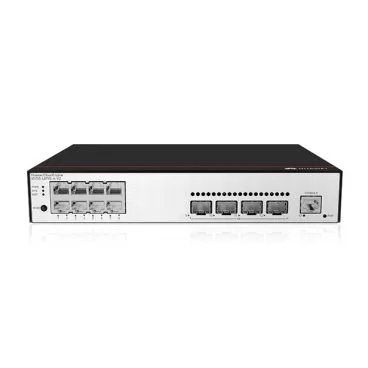

Huawei Enterprise S5735-L16T4S-A-V2 S5735-L16T4S-A-V2 (16*10/100/1000BASE-T ports, 4*GE SFP ports, AC power)

Huawei Enterprise S5735-L16T4S-A-V2 Switch de red de 16 puertos Gigabit y 4 puertos SFP para gestión de campus 16 puertos 10/100/1000BASE-T 4 puertos GE SFP Alimentación AC integrada Refrigeración por aire Chasis metálico MTBF de 72,43 años El Huawei Enterprise S5735-L16T4S-A-V2 es un dispositivo robusto diseñado para entornos de campus locales. Cuenta con un módulo de alimentación AC integrado que garantiza un funcionamiento estable y seguro. Su chasis metálico protege los componentes internos y disipa el calor de manera eficiente mediante ventiladores inteligentes que ajustan la velocidad según sea necesario. Este switch soporta el modo de licencia de Huawei IDN One Software, ideal para implementar soluciones CloudCampus. Con una disponibilidad superior a 0,99999, asegura la continuidad operativa de tu red. Sus especificaciones técnicas permiten operar en altitudes de hasta 5000 metros, adaptándose a diversas condiciones ambientales sin comprometer el rendimiento del sistema. Especificaciones técnicas General Item Specification Chassis height [U] 1 U Typical heat dissipation [BTU/hour] 72.23 BTU/hour Maximum heat dissipation [BTU/hour] 98.4 BTU/hour Availability > 0.99999 Number of card slots 0 Number of fans modules 1 RTC No compatible RPS input No compatible Types of fans Integrado Heat dissipation mode Air cooling for heat dissipation, intelligent fan speed adjustment Airflow direction Air intake from left and front, air exhaustion from right MTBF 72.43 years Certificaciones EMC certification Safety certification Manufacturing certification Dimensiones y montaje Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.) Dimensions with packaging (H x W x D) [mm(in.)] 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.) Chassis material Metal Weight without packaging [kg(lb)] 2.22 kg (4.89 lb) Weight with packaging [kg(lb)] 3.34 kg (7.36 lb) Almacenamiento Memory 2 GB Flash memory Physical space: 1 GB Alimentación Typical power consumption [W] 21.17 W Consumo máximo 28.84 W Static power consumption [W] 13.8 W Number of power slots 0 Redundant power supply No compatible Modo de alimentación AC built-in Tensión de entrada AC input: 100–240 V AC 50/60 Hz Rango de tensión de entrada AC input: 90 V AC to 264 V AC 45 Hz to 65 Hz Maximum input current [A] 0.8 A Power supply surge protection [kV] Differential mode: ±6 kV common mode: ±6 kV PoE No compatible Condiciones de uso Noise at normal temperature (acoustic power) [dB(A)] 47 dB(A) Noise at normal temperature (acoustic pressure) [dB(A)] 35 dB(A) Temperatura de funcionamiento 5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.) Temperatura de almacenamiento –40°C to +70°C (–40°F to +158°F) Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing Long-term operating altitude [m(ft.)] 0–5000 m (0–16404 ft.) Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.) Grado de protección IP20 Red y protocolos Console port RJ45 Eth Management port No compatible USB No compatible Service port surge protection [kV] Common mode: ±7 kV
