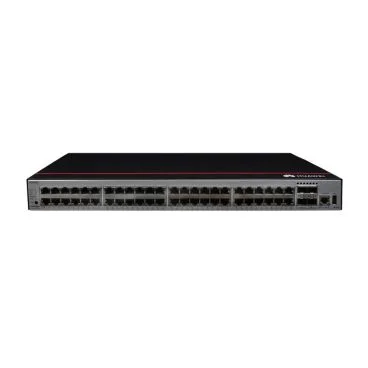

Huawei S5735-L48P4S-A1 Switch gestionable capa3 PoE+ 380W 48x GE 4xGE SFP 4094 VLANs Guest/Voice/MUX VLAN Static route RIP

Huawei Enterprise S5735-L48P4S-A1 Switch gestionable capa3 con PoE+ de 380W para redes empresariales de alto rendimiento 48 puertos GE BASE-T 4 puertos GE SFP PoE+ 380W integrado Capacidad switching 104 Gbps 4094 VLANs Protocolos OSPF y RIP Este switch gestionable de capa 3 ofrece una solución robusta para la infraestructura de red de su empresa. Con 48 puertos Gigabit Ethernet y 4 puertos SFP, garantiza una conectividad flexible y escalable para cualquier entorno de oficina o campus. Su potente alimentación PoE+ de 380W permite alimentar dispositivos como teléfonos IP y puntos de acceso Wi-Fi sin necesidad de fuentes externas. Gracias a su arquitectura de hardware optimizada, el equipo alcanza una capacidad de conmutación de 104 Gbps y un rendimiento de reenvío de 78Mpps, asegurando que la red nunca sea un cuello de botella. La gestión avanzada mediante protocolos como OSPF, RIP y OSPFv3, junto con soporte para VLANs Guest y Voice, facilita el despliegue de redes segmentadas y seguras. Su diseño compacto de 1U y ventilación inteligente lo convierten en una pieza clave para mantener su red operativa y eficiente. Especificaciones técnicas Alimentación Typical power consumption [W] 58.7 W Consumo máximo Not providing the PoE function: 76.1 W 100% PoE loads: 456.1 W (PoE: 380 W) Static power consumption [W] 35.3 W Number of power slots 0 Redundant power supply No compatible Modo de alimentación AC built-in Tensión de entrada AC input: 100 V AC to 240 V AC, 50/60 Hz High-Voltage DC input: 240 V DC Rango de tensión de entrada AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz High-Voltage DC input: 190 V DC to 290 V DC Maximum input current [A] 6 A Power supply surge protection [kV] ±6 kV in differential mode, ±6 kV in common mode PoE Compatible Condiciones de uso Noise at normal temperature (acoustic power) [dB(A)] 50 dB(A) Noise at normal temperature (acoustic pressure) [dB(A)] 38.2 dB(A) Temperatura de funcionamiento 5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.) Short-term operating temperature [°C(°F)] 5°C to +55°C (23°F to 131°F) at an altitude of 0-1800 m (0-5906 ft.) Temperatura de almacenamiento 40°C to +70°C (-40°F to +158°F) Long-term operating relative humidity [RH] 5% to 95%, noncondensing Long-term operating altitude [m(ft.)] 0-5000 m (0-16404 ft.) Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.) Grado de protección IP20 Sistema S5735-L48P4S-A1 (licencia básica incluida) Switch gestionable capa3 PoE+ 380W 48x BASE-T 10/100/1000 4x GE SFP 4094 VLANs Guest/Voice/MUX VLAN Static route RIP RIPng OSPF OSPFv3 Capacidad de switching 104 Gbps Forwarding capacity 78Mpps MTBF 44.9 years Almacenamiento Memory 512 MB Flash memory 512 MB General Item Details Description S5735-L48P4S-A1 (48*10/100/1000BASE-T ports, 4*GE SFP ports, PoE+, AC power) Part Number 98011345 Model S5735-L48P4S-A1 Item Specification Chassis height [U] 1 U Typical heat dissipation [BTU/hour] 200.29 BTU/hour Maximum heat dissipation [BTU/hour] Not providing the PoE function: 259.66 100% PoE loads: 1556.26 MTTR [hours] 2 hours Availability > 0.99999 Number of card slots 0 Number of fans modules 2 RTC No compatible RPS input No compatible Types of fans Integrado Heat dissipation mode Heat dissipation with fan, intelligent fan speed adjustment Airflow direction Air intake from left and front, air exhaustion from right Certificaciones EMC certification Safety certification Manufacturing certification Red y protocolos Console port RJ45 Eth Management port No compatible USB Compatible Service port surge protection [kV] Common mode: ±7 kV Dimensiones y montaje Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.) Dimensions with packaging (H x W x D) [mm(in.)] 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.) Weight without packaging [kg(lb)] 3.23 kg (7.12 lb) Weight with packaging [kg(lb)] 4.28 kg (9.44 lb)
