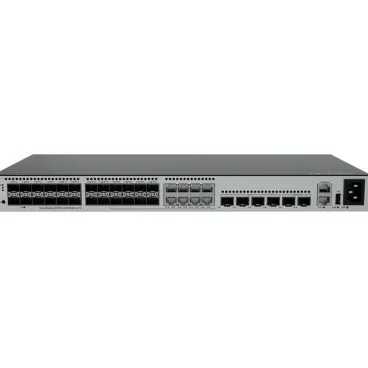

Huawei S5735-L24ST4XE-A-V2 Switch gestionable capa 3, 24x GE SFP 4x 10GE SPF+ 2x 12GE stack ports 4K VLANs Voice/MUX VLAN

Huawei Enterprise S5735-L24ST4XE-A-V2 Switch gestionable capa 3 de 24 puertos GE SFP, 4 puertos 10GE SFP+ y 2 puertos de apilamiento 12GE Switching 176 Gbps Forwarding 132Mpps 4K VLANs RIPv1/v2 OSPFv3 BGP Este switch de capa 3 de la serie CloudEngine de Huawei ofrece una plataforma de hardware de alto rendimiento y software unificado para redes Ethernet flexibles. Soporta múltiples protocolos de enrutamiento de capa 3 y destaca por su alta velocidad de conmutación y potente procesamiento de servicios, ideal para entornos empresariales exigentes. Dispone de 24 puertos de enlace descendente GE ópticos, 4 puertos de enlace ascendente 10GE y 2 puertos de apilamiento 12GE para una conectividad de alta velocidad. Incluye mecanismos avanzados de autenticación, control de seguridad contra ataques DoS y telemetría para la identificación precisa de fallos de red, garantizando una experiencia de usuario óptima. Especificaciones técnicas General VLAN Features Static route, RIPv1/v2, RIPng, OSPF, and OSPFv3 Item Specification Chassis height [U] 1 U Typical heat dissipation [BTU/hour] 111.23 BTU/hour Maximum heat dissipation [BTU/hour] 142.28 BTU/hour MTTR [hours] 2 hours Availability > 0.99999 Number of card slots 0 Number of fans modules 2 RTC No compatible RPS input No compatible Types of fans Integrado Heat dissipation mode Air cooling for heat dissipation, intelligent fan speed adjustment Airflow direction Air intake from left and front, air exhaustion from right MTBF 47.39 years Certificaciones EMC certification Safety certification Manufacturing certification Condiciones de uso Noise at normal temperature (acoustic power) [dB(A)] 38.1 dB(A) Noise at normal temperature (acoustic pressure) [dB(A)] 26.1 dB(A) Temperatura de funcionamiento 5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.) Temperatura de almacenamiento 40°C to +70°C (-40°F to +158°F) Long-term operating relative humidity [RH] 5% RH to 95% RH (non-condensing) Long-term operating altitude [m(ft.)] 0-5000 m (0-16404 ft.) Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.) Grado de protección IP20 Alimentación Typical power consumption [W] 32.6 W Consumo máximo 41.7 W Static power consumption [W] 17.57 W Number of power slots 0 Redundant power supply No compatible Modo de alimentación AC built-in Tensión de entrada AC input: 100 V AC to 240 V AC 50/60 Hz High-voltage DC input: 110 V DC to 250 V DC Rango de tensión de entrada AC input: 90 V AC to 264 V AC 47 Hz to 63 Hz High-voltage DC input: 88 V DC to 300 V DC Maximum input current [A] 2 A Power supply surge protection [kV] Differential mode: ±6 kV common mode: ±6 kV PoE No compatible Dimensiones y montaje Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.) Dimensions with packaging (H x W x D) [mm(in.)] 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.) Weight without packaging [kg(lb)] 2.9 kg (6.39 lb) Weight with packaging [kg(lb)] 3.55 kg (7.83 lb) Red y protocolos Console port RJ45 Eth Management port Compatible USB Compatible Almacenamiento Memory 2 GB Flash memory Physical space: 1 GB
