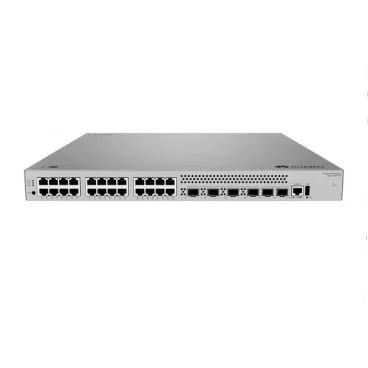

Huawei S530-24T4XE Switch gestionable capa3 4K VLANs IPv4 Static Route PBR IPv6 iStack ERPS SmartLink 24x 10/100/1000BASE-T

Huawei eKit Datacom S530-24T4XE Switch gestionable capa 3 con 24 puertos Gigabit y 4 puertos 10GE para redes empresariales robustas 4K VLANs IPv4 Static Route IPv6 iStack ERPS SmartLink Este dispositivo de red Huawei ofrece una arquitectura escalable ideal para entornos corporativos que demandan alta disponibilidad y rendimiento. Su diseño compacto de 1U y su chasis metálico garantizan una instalación eficiente en racks estándar, mientras que los módulos de alimentación redundantes aseguran la continuidad del servicio ante fallos eléctricos. Gracias a sus capacidades avanzadas de enrutamiento estático y soporte nativo para IPv6, el switch facilita la gestión de redes complejas con múltiples subredes. La tecnología de apilado iStack permite unificar varios dispositivos en una sola unidad lógica, simplificando la administración y optimizando los recursos de la infraestructura de red de la empresa. Especificaciones técnicas General Item Specification Chassis height [U] 1 U Typical heat dissipation [BTU/hour] 89.40 BTU/hour Maximum heat dissipation [BTU/hour] 112.94 (with two 80 W AC power modules) 156.10 (with two 180 W AC power modules) 290.71 (with two 1200 W DC power modules) MTTR [hours] 2 hours Availability > 0.99999 Number of card slots 0 Number of fans modules 1 Packet forwarding rate To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. RTC No compatible RPS input No compatible Types of fans Integrado Heat dissipation mode Air cooling for heat dissipation, intelligent fan speed adjustment Airflow direction Air intake from left, front, and right and air exhaust from rear 5 - 50 °C 40 - 70 °C MTBF 168.93 years Certificaciones EMC certification Safety certification Manufacturing certification Dimensiones y montaje Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.0 mm (1.72 in. x 17.40 in. x 17.56 in.) Dimensions with packaging (H x W x D) [mm(in.)] 185.0 mm x 650.0 mm x 550.0 mm (7.28 in. x 25.59 in. x 21.65 in.) Chassis material Metal Weight without packaging [kg(lb)] 5.4 kg (11.9 lb) Weight with packaging [kg(lb)] 7.3 kg (16.09 lb) Red y protocolos Console port RJ45 Eth Management port No compatible USB Compatible Service port surge protection [kV] Common mode: ±7 kV Alimentación Typical power consumption [W] 26.20 W Consumo máximo 33.10 W (with two 80 W AC power modules) 45.75 W (with two 180 W AC power modules) 85.20 W (with two 1200 W DC power modules) Static power consumption 23.2 Number of power slots 2 Redundant power supply 1+1 Power modules without fans and power modules with fans cannot be installed in the same chassis. Modo de alimentación Pluggable power supply Tensión de entrada AC input: 100 V AC to 240 V AC 50/60 Hz High-voltage DC input: 240 V DC DC input: –48 V DC to –60 V DC Rango de tensión de entrada AC input: 90 V AC to 290 V AC 45–65 Hz High-voltage DC input: 190 V DC to 290 V DC DC input: -38.4 V DC to -72 V DC Maximum input current [A] The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules. Power supply surge protection [kV] Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode PoE No compatible Condiciones de uso Noise at normal temperature (acoustic power) [dB(A)] 47 dB(A) Noise at normal temperature (acoustic pressure) [dB(A)] 35 dB(A) Temperatura de funcionamiento 5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.) Temperatura de almacenamiento –40°C to +70°C (–40°F to +158°F) Long-term operating relative humidity [RH] 5% RH to 95% RH (non-condensing) Long-term operating altitude [m(ft.)] 0–5000 m (0–16404 ft.) Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.) Grado de protección IP20 Almacenamiento Switching capacity To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. Memory 2 GB Flash memory Physical space: 1 GB
