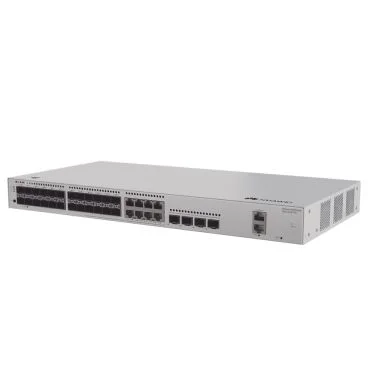

Huawei S310-24ST4X Swpitch gestionable capa3, 4K VLANs IPv4 Static Route, PBR, IPv6, iStack, ERPS, SmartLink 24xGE SFP(8 dual

Huawei eKit Datacom S310-24ST4X Switch gestionable capa 3 con 24 puertos Gigabit y 4 puertos 10GE para redes empresariales 4K VLANs IPv4 Static Route PBR IPv6 iStack ERPS Este conmutador Huawei ofrece una capacidad de conmutación de 128 Gbps y un rendimiento de reenvío de paquetes optimizado. Cuenta con un módulo de alimentación de CA integrado que garantiza una operación estable sin necesidad de fuentes externas. Su diseño compacto de 1U y refrigeración por aire lo hacen ideal para instalaciones en racks estándar. Dispone de puertos combinados flexibles que permiten alternar entre conexión eléctrica y óptica según las necesidades del enlace. Además, incluye un puerto de gestión Ethernet para configuración remota y un puerto consola RJ45 para la configuración local en sitio. Su robustez está certificada para operar en entornos con altitudes de hasta 5000 metros. Especificaciones técnicas Alimentación Typical power consumption [W] 32.6 W Consumo máximo 41.7 W Static power consumption [W] 17.57 W Number of power slots 0 Redundant power supply No compatible Modo de alimentación AC built-in Tensión de entrada AC input: 100 V AC to 240 V AC 50/60 Hz High-voltage DC input: 110 V DC to 250 V DC Rango de tensión de entrada AC input: 90 V AC to 264 V AC 47 Hz to 63 Hz High-voltage DC input: 88 V DC to 300 V DC Maximum input current [A] 2 A Power supply surge protection [kV] Differential mode: ±6 kV common mode: ±6 kV PoE No compatible Dimensiones y montaje Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.) Dimensions with packaging (H x W x D) [mm(in.)] 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.) Weight without packaging [kg(lb)] 2.9 kg (6.39 lb) Weight with packaging [kg(lb)] 3.55 kg (7.83 lb) Red y protocolos Console port RJ45 Eth Management port Compatible USB No compatible Almacenamiento Switching capacity To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. Memory 2 GB Flash memory Physical space: 1 GB General Item Specification Chassis height [U] 1 U Typical heat dissipation [BTU/hour] 111.23 BTU/hour Maximum heat dissipation [BTU/hour] 142.28 BTU/hour MTTR [hours] 2 hours Availability > 0.99999 Number of card slots 0 Number of fans modules 2 Packet forwarding rate To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. RTC No compatible RPS input No compatible Types of fans Integrado Heat dissipation mode Air cooling for heat dissipation, intelligent fan speed adjustment Airflow direction Air intake from left and front, air exhaustion from right MTBF 47.39 years Certificaciones EMC certification Safety certification Manufacturing certification Condiciones de uso Noise at normal temperature (acoustic power) [dB(A)] 38.1 dB(A) Noise at normal temperature (acoustic pressure) [dB(A)] 26.1 dB(A) Temperatura de funcionamiento 5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.) Temperatura de almacenamiento –40°C to +70°C (–40°F to +158°F) Long-term operating relative humidity [RH] 5% RH to 95% RH (non-condensing) Long-term operating altitude [m(ft.)] 0–5000 m (0–16404 ft.) Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.) Grado de protección IP20
