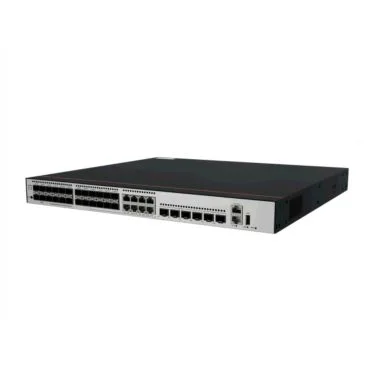

Huawei S530-24ST4XE Switch gestionable capa3 4K VLANs IPv4 Static Route PBR IPv6 iStack ERPS SmartLink 24xGE SFP (8 son

Huawei eKit Datacom S530-24ST4XE Switch gestionable capa 3 de 24 puertos SFP con capacidad de 176 Gbps y 132 Mpps. 24 puertos SFP 8 puertos combo 4 puertos 10GE 2 puertos 12GE 4K VLANs iStack Este conmutador Huawei S530-24ST4XE se destaca por su robusta arquitectura de capa 3, ideal para redes empresariales que requieren alta disponibilidad y rendimiento. Con una capacidad de conmutación de 176 Gbps y una tasa de reenvío de 132 Mpps, garantiza un flujo de datos eficiente y estable en entornos de tráfico intenso. Dispone de una configuración flexible con 24 puertos SFP, entre los que destacan 8 puertos combo Ethernet-SFP, 4 puertos de 10GE SFP+ y 2 puertos de 12GE para apilado. Además, soporta funciones avanzadas como 4K VLANs, enrutamiento estático IPv4, PBR y ERPS, facilitando la gestión de redes complejas con una fiabilidad superior. Especificaciones técnicas Alimentación Typical power consumption [W] 31.6 W Consumo máximo 48.70 W (with two 80 W AC power modules) 85.78 W (with two 1200 W DC power modules) Static power consumption 14 Number of power slots 2 Redundant power supply 1+1 Power modules without fans and power modules with fans cannot be installed in the same chassis. Modo de alimentación Pluggable power supply Tensión de entrada AC input: 100 V AC to 240 V AC 50/60 Hz High-voltage DC input: 240 V DC DC input: –48 V DC to –60 V DC Rango de tensión de entrada AC input: 90 V AC to 290 V AC 45–65 Hz High-voltage DC input: 190 V DC to 290 V DC DC input: -38.4 V DC to -72 V DC Maximum input current [A] The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules. Power supply surge protection [kV] Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode PoE No compatible Condiciones de uso Noise at normal temperature (acoustic power) [dB(A)] 38.1 dB(A) Noise at normal temperature (acoustic pressure) [dB(A)] 26.1 dB(A) Temperatura de funcionamiento 5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.) Temperatura de almacenamiento –40°C to +70°C (–40°F to +158°F) Long-term operating relative humidity [RH] 5% RH to 95% RH (non-condensing) Long-term operating altitude [m(ft.)] 0–5000 m (0–16404 ft.) Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.) Grado de protección IP20 Dimensiones y montaje Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.0 mm (1.72 in. x 17.40 in. x 17.56 in.) Dimensions with packaging (H x W x D) [mm(in.)] 185.0 mm x 650.0 mm x 550.0 mm (7.28 in. x 25.59 in. x 21.65 in.) Chassis material Metal Weight without packaging [kg(lb)] 5.6 kg (12.35 lb) Weight with packaging [kg(lb)] 7.4 kg (16.31 lb) General S530-24ST4XE 24 puertos SFP gigabit (8 de ellos combo 1G Ethernet-SFP), 4x 10GE SFP+ ports, 2x 12GE stack ports, 1x AC power module Item Specification Chassis height [U] 1 U Typical heat dissipation [BTU/hour] 107.82 BTU/hour Maximum heat dissipation [BTU/hour] 166.17 (with two 80 W AC power modules) 292.69 (with two 1200 W DC power modules) MTTR [hours] 2 hours Availability > 0.99999 Number of card slots 0 Number of fans modules 2 Packet forwarding rate To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. RTC No compatible RPS input No compatible Types of fans Integrado Heat dissipation mode Air cooling for heat dissipation, intelligent fan speed adjustment Airflow direction Air intake from left, front, and right and air exhaust from rear Tasa de reenvio: 132 Mpps. Entradas de dirección MAC de 32K como máximo. Multicast IGMP v1/v2/v3 e IGMP v1/v2/v3 snooping. MTBF 112.03 years Certificaciones EMC certification Safety certification Manufacturing certification Red y protocolos Console port RJ45 Eth Management port Compatible USB Compatible Administración vía Navegador web (Stand Alone), App eKit o Nube eKit. Asignación de VLAN basada en direcciones MAC, protocolos, subredes IP, políticas y puertos. Almacenamiento Switching capacity To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. Memory 2 GB Flash memory Physical space: 1 GB Capacidad de Switching 176 Gbps.
