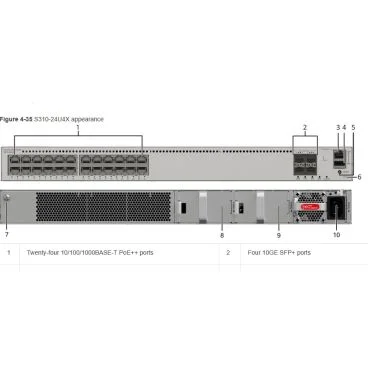

Huawei Ekit Datacom S310-24U4X Switch Capa 3 24 Puertos Gigabit Poe++ & 4 Puertos Sfp+ 10 Gbps / Poe Budget 580W / Stackable

Huawei eKit Datacom S310-24U4X Switch Capa 3 de 24 puertos Gigabit PoE++ y 4 puertos SFP+ de 10 Gbps 580W PoE Budget Stackable Gestión Gratuita Desde La Nube Sin Licenciamiento Chasis de Metal MTBF de 92.58 años Este switch de red empresarial combina un rendimiento robusto con una gestión simplificada. Gracias a su capacidad PoE++ de 580W, puede alimentar dispositivos de red avanzados directamente desde el conmutador. Su arquitectura Stackable permite escalar la red fácilmente, mientras que la gestión gratuita desde la nube elimina la necesidad de costosas licencias de software. Diseñado para entornos exigentes, cuenta con un chasis metálico y una MTBF de 92.58 años que garantiza una fiabilidad excepcional a largo plazo. Soporta una amplia gama de temperaturas de funcionamiento y altitudes, asegurando que la conexión permanezca estable incluso en condiciones climáticas adversas o en ubicaciones remotas. Especificaciones técnicas General S310-24U4X 580W PoE Budget Item Specification Chassis height [U] 1 U Typical heat dissipation [BTU/hour] 126.18 BTU/hour Maximum heat dissipation [BTU/hour] Without PoE: 176.06 (with two 600 W AC power modules) 186.64 (with two 1000 W AC power modules) 222.81 (with two 1000 W DC power modules) - Full PoE load: 8284.95 (PoE: 7738.64, with three 1000 W AC power modules) Availability > 0.99999 Number of card slots 0 Number of fans modules 2 RTC No compatible RPS input No compatible Types of fans Integrado Heat dissipation mode Air cooling for heat dissipation, intelligent fan speed adjustment Airflow direction Air intake from left, front, and right and air exhaust from rear MTBF 92.58 years Certificaciones EMC certification Safety certification Manufacturing certification Dimensiones y montaje Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.0 mm (1.72 in. x 17.40 in. x 17.56 in.) Dimensions with packaging (H x W x D) [mm(in.)] 185.0 mm x 650.0 mm x 550.0 mm (7.28 in. x 25.59 in. x 21.65 in.) Chassis material Metal Weight without packaging [kg(lb)] 5.92 kg (13.05 lb) Weight with packaging [kg(lb)] 7.99 kg (17.61 lb) Red y protocolos Console port RJ45 Eth Management port No compatible USB Compatible Almacenamiento Memory 2 GB Flash memory Physical space: 1 GB Alimentación Typical power consumption [W] 36.98 W Consumo máximo Without PoE: 51.60 W (with two 600 W AC power modules) 54.70 W (with two 1000 W AC power modules) 65.30 W (with two 1000 W DC power modules) - Full PoE load: 2428.11 W (PoE: 2268 W, with three 1000 W AC power modules) Static power consumption [W] 28.8 W Number of power slots 3 Redundant power supply 1+1+1 Pluggable AC and DC power modules can be used together on the same device. Modo de alimentación Pluggable power supply Tensión de entrada AC input: 100 V AC to 130 V AC, 200 V AC to 240 V AC 50/60 Hz High-voltage DC input: 240 V DC DC input: –48 V DC to –60 V DC Rango de tensión de entrada AC input: 90 V AC to 290 V AC 45–65 Hz High-voltage DC input: 190 V DC to 290 V DC DC input: -38.4 V DC to -72 V DC Maximum input current [A] The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules. Power supply surge protection [kV] Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode PoE Compatible Condiciones de uso Noise at normal temperature (acoustic power) [dB(A)] Three 600 W AC PoE power modules with 30% load: 50 dBA Three 1000 W AC PoE power modules with 30% load: 49.9 dBA Three 1000 W DC PoE power modules with 30% load: 48.5 dBA Noise at normal temperature (acoustic pressure) [dB(A)] Three 600 W AC PoE power modules with 30% load: 38 dBA Three 1000 W AC PoE power modules with 30% load: 37.9 dBA Three 1000 W DC PoE power modules with 30% load: 36.5 dBA Temperatura de funcionamiento 5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.) Temperatura de almacenamiento –40°C to +70°C (–40°F to +158°F) Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing Long-term operating altitude [m(ft.)] 0–5000 m (0–16404 ft.) Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.) Grado de protección IP20
