Huawei S310S-24T4JX Switch gestionable capa2+ 16K MAC entries 4K VLANs STP/RSTP/MSTP/ERPS 24xGE

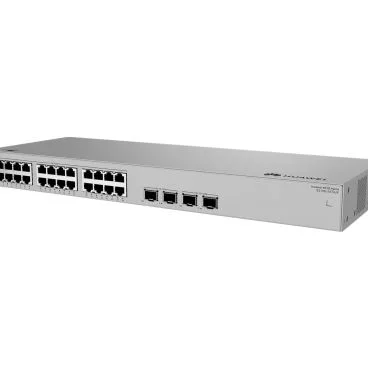

S310S-24T4JX 24x 10/100/1000BASE-T ports 2x 10GE SFP+ ports 2x 2.5GE SFP Huawei S310S-24T4JX is a manageable L2+ switch equipped with 24x 1Gbit Ethernet, 2x 2.5G SFP and 2x SFP+ ports. It supports all common L2 functions and additionally offers static routing and a DHCPv4 server. Management is possible through a web interface or via the Huawei eKit cloud service using the web portal or the Huawei eKit App. Thanks to the Huawei Online Upgrade Platform (HOUP), the switch offers one-click automatic updates. Power Supply System The switch has a built-in AC power module and does not support pluggable power modules. Heat Dissipation System The device has no fans and uses natural heat dissipation. Package Contents Device 19" rack mounts 230V AC power cable Grounding cable Rubber adhesive pads Table 4-75 Technical specifications of the S310S-24T4JX Item Specification Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442 mm x 160 mm (1.72 in. x 17.40 in. x 6.30 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442 mm x 167 mm (1.72 in. x 17.40 in. x 6.57 in.) Dimensions with packaging (H x W x D) [mm(in.)] 90.0 mm x 550.0 mm x 260.0 mm (3.54 in. x 21.65 in. x 10.24 in.) Chassis height [U] 1 U Chassis material Metal Weight without packaging [kg(lb)] 1.97 kg (4.34 lb) Weight with packaging [kg(lb)] 2.76 kg (6.08 lb) Typical power consumption [W] 21.32 W Typical heat dissipation [BTU/hour] 72.75 BTU/hour Maximum power consumption [W] 21.9 W Maximum heat dissipation [BTU/hour] 74.72 BTU/hour Static power consumption [W] 11.14 W MTBF [years] 59.31 years MTTR [hours] 2 hours Availability > 0.99999 Noise at normal temperature (acoustic power) [dB(A)] Noise-free (no fans) Noise at normal temperature (acoustic pressure) [dB(A)] Noise-free (no fans) Number of card slots 0 Number of power slots 0 Number of fans modules 0 Redundant power supply Not supported Long-term operating temperature [°C(°F)] –5°C to +40°C (41°F to 104°F) at an altitude of 0-1800 m (0-5905.44 ft.) Restriction on the operating temperature variation rate [°C(°F)] When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Devices cannot start when the temperature is lower than 0°C (32°F). Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F) Long-term operating relative humidity [RH] 5% RH to 95% RH (non-condensing) Long-term operating altitude [m(ft.)] 0–5000 m (0–16404 ft.) Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.) Power supply mode AC built-in Rated input voltage [V] AC input: 100–240 V AC 50/60 Hz Input voltage range [V] AC input: 90 V AC to 264 V AC 45 Hz to 65 Hz Maximum input current [A] 0.8 A Memory DDR4: 512 MB Flash memory NAND flash: 256 MB Console port Not supported Eth Management port Not supported USB Not supported RTC Not supported RPS input Not supported Power supply surge protection [kV] ±4 kV in differential mode and ±4 kV in common mode Ingress protection level (dustproof/waterproof) IP20 Types of fans None Heat dissipation mode Natural heat dissipation Airflow direction - PoE Not supported Certification EMC certification Safety certification Manufacturing certification
