Huawei eKit Datacom S210I-8P4SX Switch de 8 puertos 10/100/1000BASE-T, 2 puertos SFP GE, 2 puertos SFP+ 10GE, PoE+, montaje

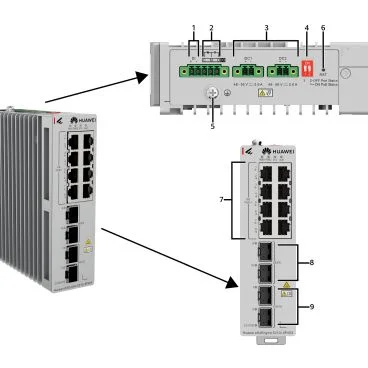

Huawei eKit Datacom S210I-8P4SX Switch de 8 puertos 10/100/1000BASE-T, 2 puertos SFP GE, 2 puertos SFP+ 10GE, PoE+, montaje en riel DIN, alimentación redundante dual de 48 a 57 V CC, sin ventilador, sin módulo de alimentación 8 puertos 10/100/1000BASE-T 2 puertos SFP GE 2 puertos SFP+ 10GE PoE+ Montaje en riel DIN Alimentación redundante 1+1 Sin ventilador Disipación natural Este conmutador de red de Huawei eKit Datacom ofrece una solución compacta y robusta para entornos industriales y de exterior. Gracias a su diseño sin ventiladores, opera de forma silenciosa y fiable gracias a la disipación térmica natural, garantizando un funcionamiento estable incluso en condiciones exigentes. Dispone de una versatilidad de conexión excepcional con puertos Gigabit Ethernet y SFP+ de 10GE, además de soporte completo para PoE+ para alimentar dispositivos periféricos. Su alimentación externa redundante de 48 a 57 V CC asegura la continuidad del servicio, mientras que su construcción metálica protege los componentes internos contra polvo y humedad. Especificaciones técnicas Condiciones de uso Noise at normal temperature (acoustic power) [dB(A)] Noise-free (no fans) Noise at normal temperature (acoustic pressure) [dB(A)] Noise-free (no fans) Temperatura de funcionamiento 0–1800 m (0–5906 ft.) altitude, industrial optical modules: Sealed cabinet: –40°C to +60°C (–40°F to +140°F) Vented cabinet (≥ 80 LFM): –40°C to +70°C (–40°F to +158°F) Blower-equipped cabinet (≥ 200 LFM): –40°C to +75°C (–40°F to +167°F) Temperatura de almacenamiento 40°C to +85°C (-40°F to +185°F) Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing Long-term operating altitude [m(ft.)] 0–5000 m (0–16404 ft.) Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.) Grado de protección IP40 Red y protocolos Eth Management port No compatible USB No compatible Service port surge protection [kV] Common mode: ±6 kV 802.3af (15.4 W per port) 8 802.3at (30 W per port) 7 802.3at (30 W per port) 8 Dimensiones y montaje Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 150.0 mm x 44.0 mm x 133.0 mm (5.91 in. x 1.73 in. x 5.24 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 162.0 mm x 44.0 mm x 142.0 mm (6.38 in. x 1.73 in. x 5.59 in.) Dimensions with packaging (H x W x D) [mm(in.)] 113.0 mm x 235.0 mm x 188.0 mm (4.45 in. x 9.25 in. x 7.40 in.) Chassis material Metal Weight without packaging [kg(lb)] 0.986 kg (2.17 lb) Weight with packaging [kg(lb)] 1.35 kg (2.98 lb) General Item Specification Chassis height [U] 3.65 U Typical heat dissipation [BTU/hour] 53.09 BTU/hour Maximum heat dissipation [BTU/hour] Without PoE: 55.41 Full PoE load: 878.96 Availability > 0.99999 Number of card slots 0 Number of fans modules 0 RTC No compatible RPS input No compatible Types of fans Ninguno Heat dissipation mode Natural heat dissipation MTBF 133.599 years Flash memory Physical space: 16 MB Certificaciones EMC certification Safety certification Manufacturing certification Alimentación Typical power consumption [W] 15.56 W Consumo máximo Without PoE: 16.24 W Full PoE load: 257.6 W (PoE: 240 W) Static power consumption [W] 9.52 W Number of power slots 0 Redundant power supply 1+1 Modo de alimentación DC external Tensión de entrada DC input: 56 V DC Rango de tensión de entrada DC input: 54 V DC to 57 V DC (PoE/PoE+) 48 V DC (PoE) Maximum input current [A] 5.6 A Power supply surge protection [kV] DC power: ±2 kV in common mode and ±1 kV in differential mode PoE Compatible
