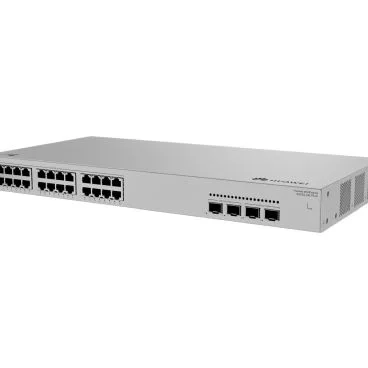

Huawei S220S-24LP4JX Switch gestionable capa 2 16K MAC entries 4K VLANs STP/RSTP/MSTP/ERPS 24xBASE-T 10/100/1000 PoE+ (195W)

Huawei eKit Datacom S220S-24LP4JX Switch gestionable capa 2 con 24 puertos PoE+ y capacidad de conmutación de 98 Gbps 24 puertos BASE-T PoE+ 195W 16K entradas MAC 4K VLANs STP/RSTP/MSTP/ERPS 2 puertos 2.5GE SFP 2 puertos 10GE SFP+ Este switch de red ofrece una capacidad de reenvío de 73 Mpps y garantiza una gestión eficiente de la red gracias a sus protocolos de estabilidad como STP, RSTP, MSTP y ERPS. Su diseño compacto de 1U y su fuente de alimentación integrada con protección contra sobretensiones aseguran un funcionamiento robusto en entornos de oficina o pequeña empresa. Equipado con dos puertos ópticos de alta velocidad para conectar a servidores o switches superiores, este dispositivo optimiza el tráfico de datos con velocidades de hasta 10 Gbps. Su sistema de refrigeración por aire con ventiladores integrados mantiene las temperaturas bajo control, mientras que su consumo energético eficiente lo convierte en una solución ideal para reducir costes operativos sin sacrificar rendimiento. Especificaciones técnicas General Item Specification Chassis height [U] 1 U Typical heat dissipation [BTU/hour] 113.68 BTU/hour Maximum heat dissipation [BTU/hour] Without PoE: 131.63 Full PoE load: 947.03 MTTR [hours] 2 hours Availability > 0.99999 Number of card slots 0 Number of fans modules 2 RTC No compatible RPS input No compatible Types of fans Integrado Heat dissipation mode Air cooling for heat dissipation, intelligent fan speed adjustment Airflow direction Air intake from left and front, air exhaustion from right MTBF 48.77 years Certificaciones EMC certification Safety certification Manufacturing certification Dimensiones y montaje Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442 mm x 220 mm (1.72 in. x 17.40 in. x 8.66 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442 mm x 227 mm (1.72 in. x 17.40 in. x 8.94 in.) Dimensions with packaging (H x W x D) [mm(in.)] 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.) Chassis material Metal Weight without packaging [kg(lb)] 2.8 kg (6.17 lb) Weight with packaging [kg(lb)] 3.71 kg (8.18 lb) Almacenamiento Memory DDR4: 512 MB Flash memory NAND flash: 256 MB Alimentación Typical power consumption [W] 33.32 W Consumo máximo Without PoE: 38.58 W Full PoE load: 277.55 W (PoE: 195 W) Static power consumption [W] 18.74 W Number of power slots 0 Redundant power supply No compatible Modo de alimentación AC built-in Tensión de entrada AC input: 100 V AC to 240 V AC, 50/60 Hz High-voltage DC input: 240 V DC Rango de tensión de entrada AC input: 90 V AC to 290 V AC 45 Hz to 65 Hz High-voltage DC input: 190 V DC to 290 V DC Maximum input current [A] 6 A Power supply surge protection [kV] Differential mode: ±6 kV common mode: ±6 kV PoE Compatible Condiciones de uso Noise at normal temperature (acoustic power) [dB(A)] 52.8 dB(A) Noise at normal temperature (acoustic pressure) [dB(A)] 40.1 dB(A) Temperatura de funcionamiento –5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.) Temperatura de almacenamiento –40°C to +70°C (–40°F to +158°F) Long-term operating relative humidity [RH] 5% RH to 95% RH (non-condensing) Long-term operating altitude [m(ft.)] 0–5000 m (0–16404 ft.) Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.) Grado de protección IP20 Red y protocolos Console port No compatible Eth Management port No compatible USB No compatible
