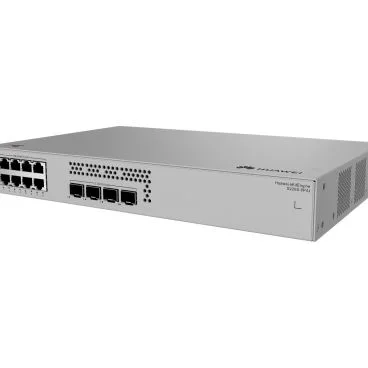

Huawei S220S-8P4J Switch gestionable capa2 16K MAC entries 4K VLANs STP/RSTP/MSTP/ERPS 8xBASE-T 10/100/1000 PoE+ (128W

Huawei eKit Datacom S220S-8P4J Switch gestionable capa 2 con 8 puertos PoE+ y 4 puertos SFP de 2.5G 16K MAC entries 4K VLANs STP/RSTP/MSTP/ERPS 27 Mpps 36 Gbps 128W budget PoE Este dispositivo de red de la marca Huawei eKit Datacom ofrece una capacidad de conmutación de 36 Gbps y una capacidad de reenvío de 27 Mpps. Diseñado para entornos exigentes, cuenta con protección contra sobretensiones de 6 kV y un funcionamiento silencioso sin ventiladores activos. Dispone de 8 puertos BASE-T de 10/100/1000 Mbps con un presupuesto de energía PoE de 128 W para alimentar dispositivos conectados. Además, incluye 4 puertos SFP de 2.5 Gbps para enlaces de alta velocidad, garantizando una gestión eficiente de la red en oficinas y pequeñas empresas. Especificaciones técnicas Alimentación Typical power consumption [W] 22.73 W Consumo máximo Without PoE: 23.23 W Full PoE load: 161.56 W (PoE: 128 W) Static power consumption [W] 13.93 W Number of power slots 0 Redundant power supply No compatible Modo de alimentación AC built-in Tensión de entrada AC input: 100–240 V AC 50/60 Hz Rango de tensión de entrada AC input: 90 V AC to 300 V AC 47 Hz to 63 Hz Maximum input current [A] 3 A Power supply surge protection [kV] Differential mode: ±6 kV common mode: ±6 kV PoE Compatible Dimensiones y montaje Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 320 mm x 210 mm (1.72 in. x 12.60 in. x 8.27 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 320 mm x 217 mm (1.72 in. x 12.60 in. x 8.54 in.) Dimensions with packaging (H x W x D) [mm(in.)] 91.0 mm x 465.0 mm x 355.0 mm (3.58 in. x 18.31 in. x 13.98 in.) Chassis material Metal Weight without packaging [kg(lb)] 2.53 kg (5.58 lb) Weight with packaging [kg(lb)] 3.43 kg (7.56 lb) Red y protocolos Console port No compatible Eth Management port No compatible USB No compatible Almacenamiento Memory DDR4: 512 MB Flash memory NAND flash: 256 MB General S220S-8P4J Switch gestionable capa 2 16K MAC entries 4K VLANs STP/RSTP/MSTP/ERPS. Forwarding Capacity: 27 Mpps. Switching Capacity: 36 Gbps. 128W budget PoE Item Specification Chassis height [U] 1 U Typical heat dissipation [BTU/hour] 77.56 BTU/hour Maximum heat dissipation [BTU/hour] Without PoE: 79.26 Full PoE load: 551.26 MTTR [hours] 2 hours Availability > 0.99999 Number of card slots 0 Number of fans modules 0 RTC No compatible RPS input No compatible Types of fans Ninguno Heat dissipation mode Natural heat dissipation MTBF 83.83 years Certificaciones EMC certification Safety certification Manufacturing certification Condiciones de uso Noise at normal temperature (acoustic power) [dB(A)] Noise-free (no fans) Noise at normal temperature (acoustic pressure) [dB(A)] Noise-free (no fans) Temperatura de funcionamiento –5°C to +40°C (41°F to 104°F) at an altitude of 0-1800 m (0-5905.44 ft.) Temperatura de almacenamiento –40°C to +70°C (–40°F to +158°F) Long-term operating relative humidity [RH] 5% RH to 95% RH (non-condensing) Long-term operating altitude [m(ft.)] 0–5000 m (0–16404 ft.) Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.) Grado de protección IP20
