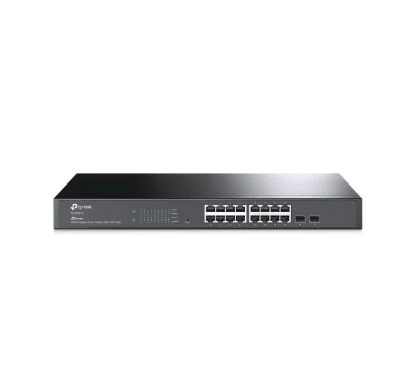

TP-Link TL-SG2218
Switch inteligente JetStream de 16 puertos Gigabit sin ventilador con ranuras SFP para gestión centralizada
16 puertos Gigabit RJ452 ranuras SFPSin ventiladorRack MountableSwitching 36 GbpsGestión Omada
Este switch inteligente integra la tecnología JetStream para ofrecer un rendimiento óptimo sin necesidad de ventiladores, garantizando un funcionamiento silencioso y fiable. Con 16 puertos Gigabit y dos ranuras SFP, se adapta perfectamente a redes de oficina o pequeñas empresas que requieren alta capacidad de transferencia de datos y flexibilidad en la conexión de dispositivos de fibra óptica.
Disfruta de una gestión simplificada gracias a su integración con el ecosistema Omada, permitiendo el aprovisionamiento automático y el monitoreo inteligente desde la nube. Cuenta con robustas herramientas de seguridad como filtrado DHCP, inspección ARP y control de tormentas, además de funciones avanzadas de QoS para priorizar el tráfico de voz y vídeo, asegurando una red estable y eficiente.
Especificaciones técnicas
General
Fan QuantityFanlessMax Heat Dissipation41.97 BTU/hrPacket Forwarding Rate26.8 MppsMAC Address Table8KJumbo Frame9 KBIntegrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring.Centralized Management: Cloud access and Omada app for ultra convenience and easy management.Standalone ManagementWeb, CLI (Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilitiesQuality of Service8 priority queues • 802.1p CoS/DSCP priority • Queue scheduling - SP (Strict Priority) - WRR (Weighted Round Robin) - SP+WRR • Bandwidth Control - Port/Flow based Rating Limiting • Smoother Performance • Action for Flows - Mirror (to supported interface) - Redirect (to supported interface) - Rate Limit - QoS RemarkL2 and L2+ FeaturesLink Aggregation - Static link aggregation - 802.3ad LACP - Up to 8 aggregation groups and up to 8 ports per group • Spanning Tree Protocol - 802.1d STP - 802.1w RSTP - 802.1s MSTP - STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect • Loopback Detection - Port-based - VLAN based • Flow Control - 802.3x Flow Control - HOL Blocking Prevention • Mirroring - Port Mirroring - CPU Mirroring - One-to-One - Many-to-One - Tx/Rx/BothL2 MulticastSupports 511 (IPv4, IPv6) IGMP groups • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave - IGMP Snooping Querier - IGMP Authentication • IGMP Authentication • MVR • MLD Snooping - MLD v1/v2 Snooping - Fast Leave - MLD Snooping Querier - Static Group Config - Limited IP Multicast • Multicast Filtering: 256 profiles and 16 entries per profileVLANVLAN Group - Max 4K VLAN Groups • 802.1q Tagged VLAN • MAC VLAN: 12 Entries • Protocol VLAN: Protocol Template 16, Protocol VLAN 16 • GVRP • VLAN VPN (QinQ) - Port-Based QinQ - Selective QinQ • Voice VLANAccess Control ListTime-based ACL • MAC ACL - Source MAC - Destination MAC - VLAN ID - User Priority - Ether Type • IP ACL - Source IP - Destination IP - Fragment - IP Protocol - TCP Flag - TCP/UDP Port - DSCP/IP TOS - User Priority • Combined ACL • Packet Content ACL • IPv6 ACL • Policy - Mirroring - Redirect - Rate Limit - QoS Remark • ACL apply to Port/VLANSecurityIP-MAC-Port Binding - DHCP Snooping - ARP Inspection - IPv4 Source Guard • IPv6-MAC-Port Binding - DHCPv6 Snooping - ND Detection - IPv6 Source Guard • DoS Defend • Static/Dynamic Port Security - Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control - kbps/ratio/pps control mode • IP/Port/MAC based access control • 802.1X - Port based authentication - Mac based authentication - VLAN Assignment - MAB - Guest VLAN - Support Radius authentication and accountability • AAA (including TACACS+) • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2IPv6IPv6 Dual IPv4/IPv6 • Multicast Listener Discovery (MLD) Snooping • IPv6 ACL • IPv6 Interface • Static IPv6 Routing • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications - DHCPv6 Client - Ping6 - Tracert6 - Telnet (v6) - IPv6 SNMP - IPv6 SSH - IPv6 SSL - Http/Https - IPv6 TFTPL3 Features16 IPv4/IPv6 Interfaces • Static Routing - 48 static routes • Static ARP • 316 ARP Entries • Proxy ARP • Gratuitous ARP • DHCP Server • DHCP Relay • DHCP L2 RelayManagementWeb-based GUI • Command Line Interface (CLI) through console port, telnet • SNMPv1/v2c/v3 - Trap/Inform - RMON (1, 2, 3, 9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP AutoInstall • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • Password Recovery • SNTP • System LogAdvanced FeaturesSupport Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • ZTP (Zero-Touch Provisioning)Switching Capacity36 GbpsOptimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.CertificacionesCE, FCC, RoHSPackage ContentsTL-SG2218 Switch • Power Cord • Quick Installation Guide • Rackmount Kit • Rubber FeetEnvironmentOperating Temperature: 0–40 ? (32–104 ?); • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
Red y protocolos
Interfaz16× 10/100/1000 Mbps RJ45 Ports • 2× Gigabit SFP SlotsFull Gigabit PortsStatic Routing: Helps route internal traffic for more efficient use of network resources.Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
Alimentación
Alimentación100-240 V AC~50/60 HzConsumo máximo12.3 W (220 V/50 Hz)
Dimensiones y montaje
Dimensiones17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)MountingRack Mountable
