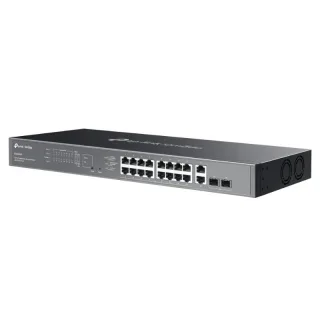

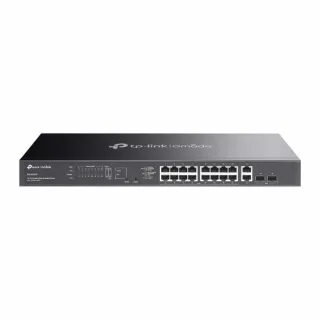

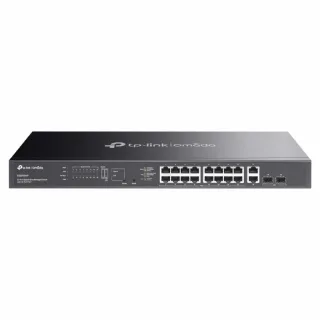

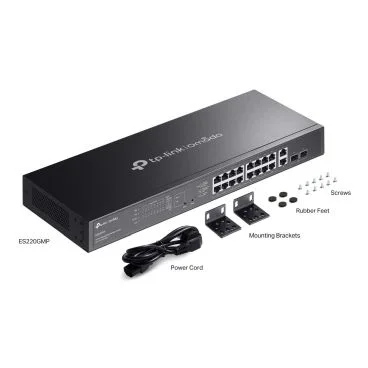

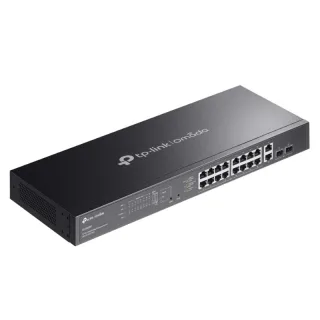

TP-Link ES220GMP
Interruptor de red gestionable fácil de 20 puertos Gigabit con 16 puertos PoE+
16 puertos PoE+2 puertos SFP250W presupuesto PoECaja metálica 1UBloqueo físicoProtección de sobretensiones
El interruptor Omada ES220GMP ofrece una solución robusta para redes de vigilancia y oficinas. Conecta hasta 16 dispositivos con alimentación PoE+ de hasta 30W por puerto, garantizando un suministro estable para cámaras IP y puntos de acceso. Su diseño compacto de 1U permite una instalación profesional en racks estándar, optimizando el espacio en tu armario de red.
Gestiona tu infraestructura de forma sencilla mediante la aplicación Omada o el controlador en la nube. Disfruta de funciones avanzadas como prevención de bucles, agregación de enlaces estática y control de calidad de servicio para priorizar el tráfico crítico. La configuración automática y el diagnóstico de cables facilitan el mantenimiento, asegurando una conexión fiable y escalable para tu negocio.
Especificaciones técnicas
SOFTWARE FEATURES
Quality of ServicePort-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control ?L2 FeaturesStatic Link Aggregation • Loop Prevention / Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDPL2 MulticastIGMP Snooping - IGMP v1/v2/v3 Snooping - Fast LeaveVLANMTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VIDTransmission MethodStore-And-ForwardOmada AppYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.Centralized ManagementOmada Cloud-Based Controller • Omada Hardware Controller • Omada Software ControllerCloud AccessYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.Zero-Touch ProvisioningYes. Requires the use of Omada Cloud-Based ControllerManagement FeaturesWeb-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery † • Batch Configuration † • Batch Firmware Upgrading † • Unified Configuration †CertificacionesFCC, CE, RoHSPackage ContentsES220GMP • Power Adapter • Installation Guide • Rubber FeetEnvironmentOperating Temperature: -5?~50? (23?~122?) • Storage Temperature: -40?~70? (-40?~158?) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing
HARDWARE FEATURES
Interfaz16× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3at PoE+ and 802.3af PoE) • 2× 10/100/1000 Mbps RJ45 Port • 2× Gigabit SFP SlotFan Quantity2InstalaciónRackmountablePhysical Security Lock√Alimentación100–240 VAC, 50/60 HzPoE Ports (RJ45)Standard: 802.3af PoE and 802.3at PoE+ compliant • PoE Ports: 16 ports • PoE Budget: 250W available for all PoE+ ports, 30W max per port • Fast PoE & Perpetual PoE • PoE Auto Recovery ‡ • Up to 250m PoE transmission distanceDimensiones17.3 × 7.1 × 1.7 in.(440 × 180 × 44 mm)Surge Protection±6kVSwitching Capacity40 GbpsPacket Forwarding Rate29.76 MppsMAC Address Table8KPacket Buffer Memory4 MbitJumbo Frame15 KB
Características
16× Gigabit 802.3at/af-compliant PoE+ RJ45 ports2× Gigabit RJ45 port, 2× Gigabit SFP port250W Power Budget, with up to 30W for each PoE portEasy to UseSupports plug-and-play for instant connectivity and simple configuration for additional featuresCentralized Cloud Management via the web or the Omada app†Up to250m PoE**, QoS?, PoE Auto Recovery‡, and Port Isolation for reliable surveillance networkingAutomatic Loop Prevention, VLAN, and IGMP SnoopingDurable metal casing and rack-mountable design
