TP-Link IES206GPP
Switch industrial gestionable de 6 puertos con alimentación PoE y carril DIN para entornos extremos
6 puertos GigabitAlimentación PoE++Carril DINRango -40 a 75 gradosGestión OmadaProvisioning Zero-Touch
Este switch industrial de TP-Link combina robustez y funcionalidad avanzada para redes exigentes. Cuenta con una arquitectura sin ventiladores que garantiza un funcionamiento silencioso y fiable, capaz de operar en temperaturas extremas desde -40 hasta 75 grados. Su diseño profesional incluye protección contra sobretensiones y una fuente de alimentación redundante 1+1 para asegurar la continuidad del servicio en cualquier condición ambiental.
Gestiona tu red con total control gracias a la suite Omada, permitiendo configuración centralizada, diagnóstico digital y despliegue automático sin intervención manual. Ofrece un presupuesto de PoE flexible con puertos de hasta 60W y 30W, ideal para alimentar dispositivos IoT y cámaras de seguridad. Además, cuenta con funciones de seguridad como detección de bucles, agregación de enlaces y control de tráfico para optimizar el rendimiento de tu infraestructura.
Especificaciones técnicas
General
Quantidade de ventoinhasFanlessInstalaçãoDIN-rail mounting • Wall mountingFonte de alimentação12-57V 1+1 Redundant DC Power InputDimensões (L x P x A)6.1 × 4.7 × 2.4 in (155 × 120 × 60 mm)Surge Protection±6 kV in common mode for Ethernet ports • ±4 kV in common mode for DC power input portsPacket Forwarding Rate8.93 MppsMAC Address Table8KJumbo Frame15 KBQuality of Service802.1p DSCP Priority • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rate Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast ControlL2 FeaturesLink Aggregation - Static Link Aggregation - Up to 2 aggregation groups and up to 4 ports per group • Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP • Spanning Tree - STP (802.1d) - RSTP (802.1w)L2 MulticastIGMP Snooping - IGMP v1/v2/v3 Snooping - Fast LeaveVLANMTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VIDTransmission MethodStore-And-ForwardOmada AppYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.Centralized ManagementOmada Cloud-Based Controller • Omada Hardware Controller • Omada Software ControllerCloud AccessYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.Zero-Touch ProvisioningYes. Requires the use of Omada Cloud-Based ControllerManagement FeaturesWeb-based GUI • DHCP Client • Cable Diagnostics • Digital Diagnostic Monitoring (DDM) • Automatic Device Discovery † • Batch Configuration † • Batch Firmware Upgrading † • Unified Configuration †CertificaçõesFCC, CE, RoHSConteúdo da embalagemIES206GPP • DIN-Rail Mounting Bracket • Wall-Mounting Plates • Installation GuideProfessional Industrial-Grade Design40~75°C Operating Temperature, 6kV Lighting Protection, and 1+1 Redundant Power InputAbundant FeaturesUp to 820ft (250m) PoE,** VLAN, QoS, and STP/RSTPTemperatura e HumidadeOperating Temperature: -40?~75? (-40?~167?) • Storage Temperature: -40?~85? (-40?~185?) • Operating Humidity: 5%~95% non-condensing • Storage Humidity: 5%~95% non-condensing
Red y protocolos

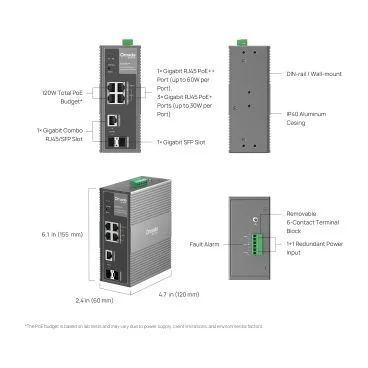

Interfaz1× 10/100/1000 Mbps PoE++ RJ45 Ports • 3× 10/100/1000 Mbps PoE+ RJ45 Ports • 1× Gigabit SFP/RJ45 Combo Slot • 1× Gigabit SFP Slot • Auto-Negotiation/Auto MDI/MDIXPoE Ports (RJ45)Standard: 802.3af/at/bt compliant • PoE++ Ports (802.3af/at/bt PoE): 1 Port, up to 60W per port • PoE+ Ports (802.3af/at PoE): 3 Ports, up to 30W per port • PoE Budget: - 60W (Input: 12V / 7.0A - 21V / 3.5A)) - 120W (Input: 21V / 6.5A - 57V / 2.3A)
Almacenamiento
Switching Capacity12 GbpsPacket Buffer Memory4 Mbit
