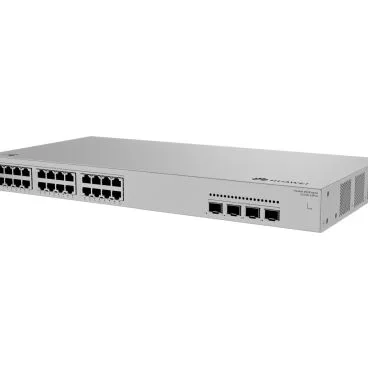

Huawei S310S-24P4J Switch gestionable capa2+ 16K MAC entries 4K VLANs STP/RSTP/MSTP/ERPS 24xGE PoE+ (400W budget)

Huawei eKit Datacom S310S-24P4J Switch gestionable capa 2+ con 24 puertos Gigabit Ethernet PoE+ y 4 puertos 2.5G SFP 24 puertos GE PoE+ 4 puertos 2.5G SFP Presupuesto PoE 400W 16K entradas MAC 4K VLANs Soporte STP/RSTP/MSTP Este switch gestionable de capa 2+ ofrece una solución robusta para redes empresariales exigentes. Cuenta con 24 puertos Gigabit Ethernet con alimentación PoE+ y 4 puertos adicionales de 2.5G para conectividad de alta velocidad. Su diseño compacto de 1U y refrigeración activa garantizan un funcionamiento estable y silencioso en entornos de oficina. Gracias a su capacidad de reenvío de 51 Mpps y conmutación de 68 Gbps, el dispositivo asegura un rendimiento óptimo para la gestión de tráfico. Incluye funciones avanzadas como enrutamiento estático, servidor DHCPv4 y soporte para protocolos de redundancia de enlace, todo gestionable a través de una interfaz web o la nube Huawei eKit. Especificaciones técnicas General Item Specification Chassis height [U] 1 U Typical heat dissipation [BTU/hour] 113.68 BTU/hour Maximum heat dissipation [BTU/hour] Without PoE: 131.63 Full PoE load: 1646.51 MTTR [hours] 2 hours Availability > 0.99999 Number of card slots 0 Number of fans modules 2 RTC No compatible RPS input No compatible Types of fans Integrado Heat dissipation mode Air cooling for heat dissipation, intelligent fan speed adjustment Airflow direction Air intake from left and front, air exhaustion from right MTBF 48.77 years Certificaciones EMC certification Safety certification Manufacturing certification Dimensiones y montaje Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442 mm x 220 mm (1.72 in. x 17.40 in. x 8.66 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442 mm x 227 mm (1.72 in. x 17.40 in. x 8.94 in.) Dimensions with packaging (H x W x D) [mm(in.)] 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.) Chassis material Metal Weight without packaging [kg(lb)] 2.8 kg (6.17 lb) Weight with packaging [kg(lb)] 3.71 kg (8.18 lb) Almacenamiento Memory DDR4: 512 MB Flash memory NAND flash: 256 MB Alimentación Typical power consumption [W] 33.32 W Consumo máximo Without PoE: 38.58 W Full PoE load: 482.55 W (PoE: 400 W) Static power consumption [W] 18.74 W Number of power slots 0 Redundant power supply No compatible Modo de alimentación AC built-in Tensión de entrada AC input: 100 V AC to 240 V AC, 50/60 Hz High-voltage DC input: 240 V DC Rango de tensión de entrada AC input: 90 V AC to 290 V AC 45 Hz to 65 Hz High-voltage DC input: 190 V DC to 290 V DC Maximum input current [A] 6 A Power supply surge protection [kV] Differential mode: ±6 kV common mode: ±6 kV PoE Compatible Condiciones de uso Noise at normal temperature (acoustic power) [dB(A)] 52.8 dB(A) Noise at normal temperature (acoustic pressure) [dB(A)] 40.1 dB(A) Temperatura de funcionamiento –5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.) Temperatura de almacenamiento –40°C to +70°C (–40°F to +158°F) Long-term operating relative humidity [RH] 5% RH to 95% RH (non-condensing) Long-term operating altitude [m(ft.)] 0–5000 m (0–16404 ft.) Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.) Grado de protección IP20 Red y protocolos Console port No compatible Eth Management port No compatible USB No compatible
