Huawei eKit Datacom AR180 Router inalámbrico de grado empresarial Wi-Fi 7 de doble banda a 3600 Mbps. incluye un puerto intercambiable LAN/WAN 2.5GE de alta velocidad, un puerto GE LAN fijo

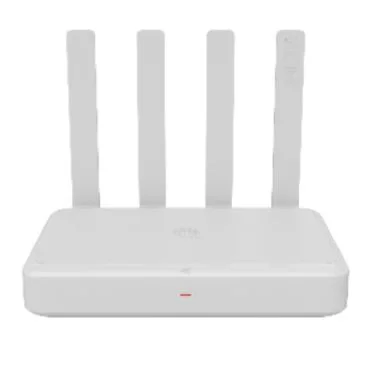

Huawei eKit Datacom AR180
Router inalámbrico de grado empresarial Wi-Fi 7 de doble banda a 3600 Mbps con diseño compacto y silencioso.

Wi-Fi 73600 MbpsPuerto 2.5GEFanlessIPsecMesh

Diseñado para pequeñas y medianas empresas con menos de 150 dispositivos conectados, este router ofrece una interconexión inteligente y de alta velocidad entre todos los equipos. Su arquitectura elimina los puntos ciegos de cobertura, garantizando una conexión estable y eficiente para el día a día del negocio.

Protege las comunicaciones de las sucursales con hasta 8 túneles IPsec y gestiona el acceso a las aplicaciones en función de la hora y la dirección IP. Gracias a su puerto dedicado Turbo, prioriza el tráfico para un streaming y gaming fluidos, mientras que su instalación flexible se adapta a cualquier entorno.

Especificaciones técnicas

Alimentación

PoENo compatibleTypical power consumption [W]7 WConsumo máximo13 WModo de alimentaciónAC power adapterNumber of power modules1Tensión de entrada110 V AC–220 V AC; 50/60 HzRango de tensión de entrada90 V AC–264 V AC; 45 Hz–65 HzMaximum input current [A]2 AMaximum output power [W]24 WRedundant power supplyNo compatible

Red y protocolos

Console portNo compatibleLAN ports4 x GE electrical interfacesWAN ports1 x 2.5GE electrical portComing with multiple WAN ports that enable flexible traffic steering and enhanced network efficiency and stability in diverse scenariosSmart Mesh networking with up to eight devices and 20 m auto-discovery range, enabling easy deployment and full coverageSupport for application control to accurately control network access as required

Dimensiones y montaje

Installation typeWork bench Against the wallDimensions without packaging (H x W x D) [mm(in.)]Basic dimensions: 35 mm x 195 mm x 130 mm (1.38 in. x 7.68 in. x 5.12 in.) Maximum dimensions: 163 mm x 195 mm x 150 mm (6.42 in. x 7.68 in. x 5.91 in.)Dimensions with packaging (H x W x D) [mm(in.)]90 mm x 230 mm x 185 mm (3.54 in. x 9.06 in. x 7.28 in.)Weight with packaging [kg(lb)]0.99 kg (2.18 lb)Weight without packaging [kg(lb)]0.63 kg (1.39 lb)Flexible installation optionsdesktop or wall-mounted to suit various environments

Condiciones de uso

Noise at normal temperature (acoustic power) [dB(A)]Fanless, silentTemperatura de funcionamiento0°C to 40°C (32°F to 104°F)Long-term operating relative humidity [RH]5% RH to 95% RH, non-condensingLong-term operating altitude [m(ft.)]< 5000 m (16404.2 ft.)Temperatura de almacenamiento40°C to +70°C (-40°F to +158°F)Overtemperature alarmCompatible

Vídeo y audio

MIC slots (default/maximum)0/0Dedicated Turbo acceleration port that prioritizes traffic for smooth video streaming and gaming

General

AR180Router inalámbrico de grado empresarial Wi-Fi 7 de doble banda a 3600 Mbps. incluye un puerto intercambiable LAN/WAN 2.5GE de alta velocidad, un puerto GE LAN fijo y tres puertos GE intercambiablesNOTAen la familia AR todos los interfaces de tipo LAN pueden configurarse como tipo WANNOTEWhen the altitude is 1800 m-5000 m (5906 ft.-16404.2 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).ModeloNúmero de túnelesAR180IPsec site-to-site, hasta 8 túneles, 200 MbpsAR180 PlusIPsec site-to-site, hasta 12 túneles, 200 MbpsAR180 ProIPsec site-to-site, hasta 12 túneles, 200 MbpsAR280IPsec site-to-site, hasta 16 túneles, 200 MbpsItemSpecificationChassis height [U]0.8 URTCNo compatibleNumber of service board slots0SIC slots (default/maximum)0/0WSIC slots (default/maximum)0/0XSIC slots (default/maximum)0/0Redundant MPUsNo compatibleRPS inputNo compatibleIP ratingIP20Availability> 0.99999Types of fansNingunoNumber of fan modules0Heat dissipation modeNatural heat dissipationAirflowNatural heat dissipationOne2.5GE high-speed WAN port that provides ultra-gigabit bandwidthSupport for various authentication modes, such as Facebook, X, Google, SMS, and Email, and Portal page customizationThe AR180/AR180 Plus supports for one-touch LED off switch for glare-free nighttime comfortCertificacionesEMC certification Safety certification Manufacturing certificationSupport for Wi-Fi 7 technology, which is 20% faster than Wi-Fi 6

Sistema

Procesador1.3 GHz, dual-coreMTBF148.98 years

Almacenamiento

Memory512 MBNAND Flash256 MB
