Huawei eKit Datacom AR180 Pro Router inalámbrico de grado empresarial Wi-Fi 7 de doble banda a 3600 Mbps. incluye dos puertos intercambiable LAN/WAN 2.5GE de alta velocidad, un puerto GE LAN

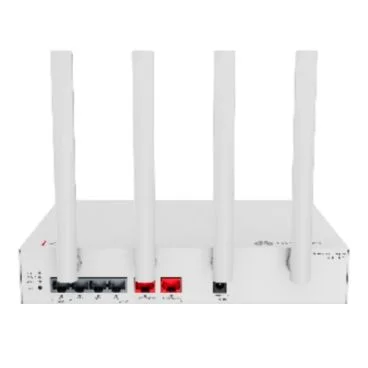

Huawei eKit Datacom AR180 Pro
Router inalámbrico de grado empresarial Wi-Fi 7 de doble banda a 3600 Mbps con diseño compacto y silencioso.

Wi-Fi 73600 MbpsPuerto 2.5GEPoEIPsecMesh

Este router empresarial de grado superior integra tecnología Wi-Fi 7 para ofrecer una velocidad de transmisión 20% superior a las generaciones anteriores. Su arquitectura de doble banda garantiza una conexión estable y rápida para entornos profesionales exigentes, mientras que su diseño sin ventiladores asegura un funcionamiento completamente silencioso.

Dispone de puertos de alta velocidad intercambiables LAN/WAN y un puerto dedicado para turbo aceleración, optimizando el tráfico de video y juegos. Además, cuenta con capacidades de control de aplicaciones y autenticación flexible para gestionar el acceso a la red según la hora y dirección IP, creando un espacio de trabajo eficiente y seguro.

Especificaciones técnicas

Alimentación

PoENo compatibleTypical power consumption [W]7 WConsumo máximo13 WModo de alimentaciónAC power adapterNumber of power modules1Tensión de entrada110 V AC–220 V AC; 50/60 HzRango de tensión de entrada90 V AC–264 V AC; 45 Hz–65 HzMaximum input current [A]2 AMaximum output power [W]24 WRedundant power supplyNo compatible

Red y protocolos

Console portNo compatibleLAN ports4 x GE electrical interfacesWAN ports1 x 2.5GE electrical portComing with multiple WAN ports that enable flexible traffic steering and enhanced network efficiency and stability in diverse scenariosSmart Mesh networking with up to eight devices and 20 m auto-discovery range, enabling easy deployment and full coverageSupport for application control to accurately control network access as required

Dimensiones y montaje

Installation typeWork bench Against the wallDimensions without packaging (H x W x D) [mm(in.)]Basic dimensions: 35 mm x 195 mm x 130 mm (1.38 in. x 7.68 in. x 5.12 in.) Maximum dimensions: 163 mm x 195 mm x 150 mm (6.42 in. x 7.68 in. x 5.91 in.)Dimensions with packaging (H x W x D) [mm(in.)]90 mm x 230 mm x 185 mm (3.54 in. x 9.06 in. x 7.28 in.)Weight with packaging [kg(lb)]0.99 kg (2.18 lb)Weight without packaging [kg(lb)]0.63 kg (1.39 lb)Flexible installation optionsdesktop or wall-mounted to suit various environments

Sistema

Procesador1.3 GHz, dual-coreMTBF148.98 years

Vídeo y audio

MIC slots (default/maximum)0/0Dedicated Turbo acceleration port that prioritizes traffic for smooth video streaming and gaming

Almacenamiento

Memory512 MBNAND Flash256 MB

General

NOTAen la familia AR todos los interfaces de tipo LAN pueden configurarse como tipo WANNOTEWhen the altitude is 1800 m-5000 m (5906 ft.-16404.2 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).ModeloNúmero de túnelesAR180IPsec site-to-site, hasta 8 túneles, 200 MbpsAR180 PlusIPsec site-to-site, hasta 12 túneles, 200 MbpsAR180 ProIPsec site-to-site, hasta 12 túneles, 200 MbpsAR280IPsec site-to-site, hasta 16 túneles, 200 MbpsItemSpecificationChassis height [U]0.8 URTCNo compatibleNumber of service board slots0SIC slots (default/maximum)0/0WSIC slots (default/maximum)0/0XSIC slots (default/maximum)0/0Redundant MPUsNo compatibleRPS inputNo compatibleIP ratingIP20Availability> 0.99999Types of fansNingunoNumber of fan modules0Heat dissipation modeNatural heat dissipationAirflowNatural heat dissipationOne2.5GE high-speed WAN port that provides ultra-gigabit bandwidthSupport for various authentication modes, such as Facebook, X, Google, SMS, and Email, and Portal page customizationThe AR180/AR180 Plus supports for one-touch LED off switch for glare-free nighttime comfortCertificacionesEMC certification Safety certification Manufacturing certificationSupport for Wi-Fi 7 technology, which is 20% faster than Wi-Fi 6

Condiciones de uso

Noise at normal temperature (acoustic power) [dB(A)]Fanless, silentTemperatura de funcionamiento0°C to 40°C (32°F to 104°F)Long-term operating relative humidity [RH]5% RH to 95% RH, non-condensingLong-term operating altitude [m(ft.)]< 5000 m (16404.2 ft.)Temperatura de almacenamiento40°C to +70°C (-40°F to +158°F)Overtemperature alarmCompatible
