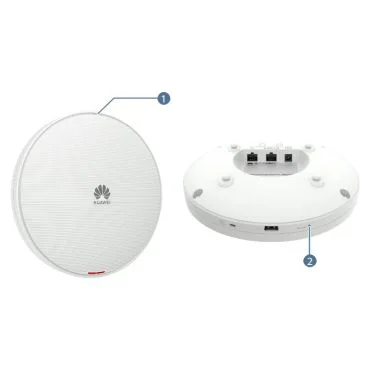

Huawei AirEngine6761-22T Punto de acceso para interior WiFi6E (802.11ax) 2+2+4 tri band (24 5 6 GHz) 6.575 Gbps Smart

Huawei Enterprise AirEngine6761-22T Punto de acceso WiFi6E tri banda para interiores con antenas inteligentes y puertos 2.5GE WiFi 6E Tri banda 24 5 6 GHz Antenas Smart Puerto 2.5GE Puerto GE Puerto USB BLE 5.2 WPA3 Este dispositivo de Huawei Enterprise redefine la conectividad empresarial con su tecnología WiFi6E de última generación. Dispone de tres bandas de frecuencia simultáneas, incluyendo la banda de 6 GHz, lo que garantiza una capacidad de transmisión de hasta 6,575 Gb/s. Sus antenas inteligentes adaptan automáticamente la cobertura y la potencia de señal para ofrecer una experiencia de red fluida y estable, ideal para entornos dinámicos como oficinas móviles, centros educativos o grandes estadios. La gestión y el mantenimiento se simplifican gracias a su módulo Bluetooth integrado, que permite la operación y administración mediante la aplicación CloudCampus. Además, cuenta con puertos de red de alto rendimiento, incluyendo un puerto de 2.5GE y otro GE, junto con una interfaz USB para expansión IoT. Su diseño compacto y robusto asegura un funcionamiento fiable en amplios rangos de temperatura, protegiendo la inversión con cifrado de hardware avanzado. Especificaciones técnicas Alimentación Power Input DC: 12 V ±10% PoE power supply: in compliance with 802.3at. Consumo máximo 24.2 W (excluding USB) Note: The actual maximum power consumption depends on local laws and regulations. Consumo máximo 24.2 (without USB), supporting 802.3at/af power supply Modo de alimentación DC adapter PoE Tensión de entrada 12 V Rango de tensión de entrada DC: 12 V ± 10% PoE: 802.3at/af Maximum transmit power 2.4 GHz: 20 dBm/chain 23 dBm (combined power) 5 GHz (2x2): 20 dBm/chain 23 dBm (combined power) 6 GHz (4x4): 19 dBm/chain 25 dBm (combined power) BLE: < 10 dBm 802.3bt power supply description In 802.3bt power supply mode, the AP still negotiates the power supply standard to 802.3at. The function constraints are the same as those in 802.3at power supply. 802.3at power supply description When the USB port is not used, no function is restricted. When the 2.5 W USB port is used: Wi-Fi: 2.4 GHz (2x2) + 5 GHz (2x2) + 6 GHz (4x4). The maximum combined power is adjusted to 21 dBm (2.4 GHz), 21 dBm (5 GHz), and 23 dBm (6 GHz). Wired network port: not restricted. When the 5 W USB port is used: Wi-Fi: 2.4 GHz (2x2) + 5 GHz (2x2) + 6 GHz (2x2). The maximum combined power is adjusted to 21 dBm (2.4 GHz), 21 dBm (5 GHz), and 20 dBm (6 GHz). Wired network port: not restricted. 802.3af power supply description Wi-Fi: 2.4 GHz (1x1) + 5 GHz (1x1) + 6 GHz (1x1). The maximum combined power is adjusted to 18 dBm (2.4 GHz), 18 dBm (5 GHz), and 17 dBm (6 GHz). Wired network port: The speed of the 2.5GE/PoE_IN electrical port is reduced to GE, and the GE electrical port is unavailable. Other ports: The USB port is unavailable. DC power supply description When the USB port is not used, no function is restricted. When the 2.5 W USB port is used: Wi-Fi: 2.4 GHz (2x2) + 5 GHz (2x2) + 6 GHz (4x4). The maximum combined power is adjusted to 21 dBm (2.4 GHz), 21 dBm (5 GHz), and 23 dBm (6 GHz). Wired network port: not restricted. When the 5 W USB port is used: Wi-Fi: 2.4 GHz (2x2) + 5 GHz (2x2) + 6 GHz (2x2). The maximum combined power is adjusted to 21 dBm (2.4 GHz), 21 dBm (5 GHz), and 20 dBm (6 GHz). Wired network port: not restricted. Condiciones de uso Temperatura de funcionamiento –10°C to +50°C Temperatura de funcionamiento –10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) Temperatura de almacenamiento –40°C to +70°C (–40°F to +158°F) Long-term operating relative humidity [RH] 5% RH to 95% RH Long-term operating altitude [m(ft.)] –60 m to +5000 m (–196.85 ft to +16404.20 ft) Vídeo y audio MIMO:Spatial Streams 2.4 GHz: 2 x 2:2 5 GHz: 2 x 2:2 6 GHz: 4 x 4:4 MIMO spatial streams Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2 Radio 2 (6 GHz): 4x4 General Parameters AirEngine 6761-22T Maximum Number of Users ≤ 1536 Note: The actual number of users varies according to the environment. Maximum Rate 6.575 Gbit/s Item Specification Maximum number of physical ports on the entire device 2.5GE (RJ45) x 1, 100M/1000M/2500M auto-sensing GE (RJ45) x 1, 10M/100M/1000M auto-sensing Atmospheric pressure [kPa] 53kPa - 106kPa ETSI 300 019-2-3 Ground floating ground BLE BLE5.2 MTTR [hour] 0.5 hour Working modes Fit, Fat, and cloud management Almacenamiento NAND Flash 512 MB Antenna gain 2.4 GHz: 4 dBi/chain (peak) 2 dBi (combined gain) 5 GHz: 5 dBi/chain (peak) 3 dBi (combined gain) 6 GHz: 5 dBi/chain (peak) 3 dBi (combined gain) BLE: 4 dBi MTBF 117 year Red y protocolos Radio Protocols 802.11a/b/g/n/ac/ac Wave 2/ax Console port BLE console Service port surge protection PoE port: Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B USB USB 2.0 Radio interface Built-in smart antennas 1x 2.5GE electrical port + 1x GE electrical port USB port for IoT expansion (such as ZigBee and RFID) Inalámbrico Antenna Type Built-in Smart Antennas Radio number 3 Operating frequency band 2.4GHz 5GHz 6GHz Wi-Fi standard 2.4G: 802.11b/g/n/ax 5G: 802.11a/n/ac/ac Wave 2/ax 6G: 802.11a/n/ac/ac Wave 2/ax Singal radio transmit power [dBm] 2.4G: -10 dBm to +20 dBm/chain 5G: -10 dBm to +20 dBm/chain 6G: -10 dBm to +19 dBm/chain Frequency stability [ppm] +/-20 Dimensiones y montaje Dimensiones Φ220 x 50 mm Installation Type Wall Ceiling T-Rail Dimensions without packaging (H x W x D) [mm(in.)] Diameter x depth: 220 mm x 50 mm (8.66 in. x 1.97 in.) Dimensions with packaging (H x W x D) [mm(in.)] 93 mm x 284 mm x 251 mm (3.66 in. x 11.18 in. x 9.88 in.) Weight without packaging [kg(lb)] 1.07 kg (2.36 lb) Weight with packaging [kg(lb)] 1.53 kg (3.37 lb)
