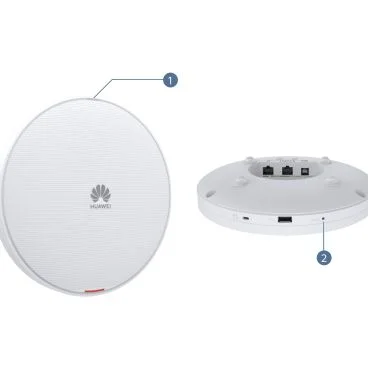

Huawei AirEngine5761-21 Punto de acceso interiores WiFi6 (802.11ax) 2+4 dual band 5.375 Gbps Smart antennas USB BLE Puertos

Huawei Enterprise AirEngine5761-21 Punto de acceso WiFi6 de banda dual con antenas inteligentes para interiores WiFi 802.11ax 5.375 Gbps Antenas inteligentes Puerto 2.5GE Bluetooth 5.2 WPA3 Este dispositivo de banda dual ofrece una velocidad máxima de 5.375 Gbps combinando las bandas de 2.4 GHz y 5 GHz. Gracias a sus antenas inteligentes integradas, garantiza una cobertura precisa y reduce la interferencia, mejorando notablemente la calidad de la señal para todos los usuarios conectados. Ideal para entornos de alta densidad como oficinas de PYME, instituciones educativas y puntos de venta, soporta hasta 1024 usuarios simultáneos. Su interfaz USB permite la expansión de dispositivos IoT y cuenta con protección contra sobretensiones para una operación fiable en condiciones exigentes. Especificaciones técnicas Alimentación Power Input DC: 12 V ±10% PoE power supply: In compliance with 802.3at. Consumo máximo 17.9 W (excluding USB) Note: The actual maximum power consumption depends on local laws and regulations. Consumo máximo 17.9 (excluding USB), 802.3at/af power supply Modo de alimentación DC adapter PoE Tensión de entrada 12 V Rango de tensión de entrada DC: 12 V ± 10% PoE: 802.3at/af Maximum transmit power 2.4 GHz: 22 dBm/chain 25 dBm (combined power) 5 GHz: 22 dBm/chain 28 dBm (combined power) BLE: < 10 dBm 802.3at power supply description No function is limited. 802.3af power supply description Wi-Fi: 2.4 GHz (2x2) + 5 GHz (2x2). The maximum combined power is adjusted to 22 dBm (2.4 GHz) and 22 dBm (5 GHz). Wired network port: 2.5GE/POE_IN ports are used as GE ports, and GE electrical ports are unavailable. Other ports: The USB port is unavailable. DC power supply description No function is limited. Red y protocolos Radio Protocols 802.11a/b/g/n/ac/ac wave2/ax Console port BLE console Service port surge protection PoE port: Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B USB USB 2.0 Radio interface Built-in smart antennas USB interface can be used for external IoT expansion( supports protocols such as ZigBee, and RFID). Supports Bluetooth serial interface-based O&M through built-in Bluetooth and CloudCampus APP, and precise locating of Dimensiones y montaje Dimensiones Φ220 x 50 mm Installation Type Wall Ceiling T-Rail Dimensions without packaging (H x W x D) [mm(in.)] Diameter x depth: 220 mm x 50 mm (8.66 in. x 1.97 in.) Weight without packaging [kg(lb)] 1.06 kg (2.34 lb) Vídeo y audio MIMO:Spatial Streams 2.4 GHz: 2x2:2 5 GHz: 4x4:4 MIMO spatial streams Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 4x4 General Parameters AirEngine 5761-21 Maximum Number of Users ≤ 1024 Note: The actual number of users varies according to the environment. Item Specification Maximum number of physical ports on the entire device 2.5GE (RJ45) x 1, 100M/1000M/2.5G auto-sensing GE (RJ45) x 1, 10M/100M/1000M auto-sensing Atmospheric pressure [kPa] 53kPa - 106kPa ETSI 300 019-2-3 Ground floating ground BLE BLE5.2 MTTR [hour] 0.5 hour 2 x GE ports. Bluetooth terminals by collaborating with location server. Supports the Fat, Fit, and cloud three working modes. Almacenamiento NAND Flash 512 MB Antenna gain 2.4G: 4 dBi/chain (peak value) 2 dBi (combined gain) 5G: 5 dBi/chain (peak value) 3 dBi (combined gain) BLE: 4 dBi MTBF 784 year Inalámbrico Antenna Type Built-in Smart Antennas Radio number 2 Operating frequency band 2.4GHz 5GHz Wi-Fi standard 2.4 GHz: 802.11b/g/n/ax 5 GHz: 802.11a/n/ac/ac Wave 2/ax Singal radio transmit power [dBm] 2.4G: -10 dBm to 22 dBm/chain 5G: -10 dBm to 22 dBm/chain Frequency stability [ppm] +/-20 Built-in smart antennas to provide precise coverage for STAs, reduce interference, and improve signal quality. Condiciones de uso Temperatura de funcionamiento –10°C to +50°C Temperatura de funcionamiento –10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) Temperatura de almacenamiento –40°C to +70°C (–40°F to +158°F) Long-term operating relative humidity [RH] 5% RH to 95% RH Long-term operating altitude [m(ft.)] –60 m to +5000 m (–196.85 ft to +16404.20 ft)
