Huawei AirEngine5761-12W Punto de acceso para interior WiFi6 (802.11ax) 2+2 dual band 1.775 Gbps Smart antennas BLE Puertos

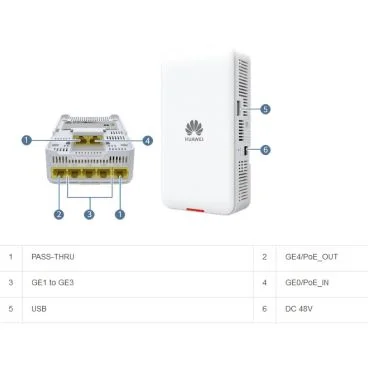

Huawei Enterprise AirEngine5761-12W Punto de acceso WiFi6 de pared con antenas inteligentes para cobertura precisa WiFi 6 (802.11ax) Velocidad 1.775 Gbps Dual band 2.4/5 GHz Antenas inteligentes Puertos 5xGE + 2 USB Bluetooth 5.2 Cifrado WPA3 Este punto de acceso de pared integra funciones avanzadas de controlador WLAN, permitiendo gestionar otros dispositivos en empresas medianas sin necesidad de licencias adicionales. Gracias a su diseño compacto y sus antenas inteligentes, ofrece una cobertura optimizada que reduce la interferencia y mejora la calidad de la señal para todos los terminales conectados en entornos interiores. Disfruta de una gestión simplificada a través de la nube, eliminando la necesidad de instalar servidores de autenticación locales. Implementa funciones como planificación de red, despliegue e inspección remota desde la plataforma Huawei. En escenarios multi-sede, configura el dispositivo desde la nube y conecta el equipo en el sitio para un despliegue rápido y automatizado que ahorra tiempo y recursos. Especificaciones técnicas Alimentación Consumo máximo 13.1 (excluding USB and PoE OUT) Modo de alimentación DC adapter PoE Tensión de entrada 48 V Rango de tensión de entrada DC: 43.2 V to 57.6 V PoE: 802.3at/af Maximum PoE output power [W] 11 W (Max distance: 20 m) Maximum transmit power 2.4 GHz: 20 dBm/chain 23 dBm (combined power) 5 GHz: 20 dBm/chain 23 dBm (combined power) BLE: < 10 dBm 802.3at power supply description The PoE out (802.3af) and USB functions are mutually exclusive. PoE OUT function takes precedence. PoE out supports a maximum of 11 W output power. 802.3af power supply description The USB function and PoE out are not supported. Other functions are not restricted. DC power supply description PoE out supports a maximum of 11 W output power. Other functions are not restricted. Inalámbrico Wi-Fi 6 (802.11ax) wall plate access point (AP) rate of up to 1.775Gbps Radio number 2 Operating frequency band 2.4GHz 5GHz Wi-Fi standard 2.4 GHz: 802.11b/g/n/ax 5 GHz: 802.11a/n/ac/ac Wave 2/ax Singal radio transmit power [dBm] 2.4G: -10 dBm to 20 dBm/chain 5G: -10 dBm to 20 dBm/chain Frequency stability [ppm] +/-20 Built-in smart antennas to provide precise coverage for STAs, reduce interference, and improve signal quality. Condiciones de uso Temperatura de funcionamiento 0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) Temperatura de almacenamiento –40°C to +70°C (–40°F to +158°F) Long-term operating relative humidity [RH] 5% RH to 95% RH Long-term operating altitude [m(ft.)] –60 m to +5000 m (–196.85 ft to +16404.20 ft) General Item Specification Maximum heat dissipation [BTU/hour] 42.6 BTU (without USB and PoE OUT) Maximum number of physical ports on the entire device GE (RJ45) x 5, 10M/100M/1000M auto-sensing Atmospheric pressure [kPa] 53kPa - 106kPa ETSI 300 019-2-3 Ground floating ground BLE BLE5.2 MTTR [hour] 0.5 hour Supports the Fat, Fit, and cloud three working modes. Almacenamiento NAND Flash 512 MB MIMO spatial streams Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2 Antenna gain 2.4 GHz: 2.5 dBi/chain (peak) 1 dBi (combined gain) 5 GHz: 3 dBi/chain (peak value) 1 dBi (combined gain) BLE: 4 dBi MTBF 246 year Red y protocolos Console port BLE console Service port surge protection PoE port: Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B USB USB 2.0 Radio interface Built-in smart antennas Uplink: 1 x GE port downlink: 4 x GE and 2 x RJ45 pass-through. USB port for external IoT expansion (supporting protocols such as ZigBee, and RFID) Supports Bluetooth serial interface-based O&M through built-in Bluetooth and CloudCampus APP. PoE OUT supported by GE port, supplying power for STAs such as IP phones. Dimensiones y montaje Installation Type Wall Dimensions without packaging (H x W x D) [mm(in.)] 160 mm x 86 mm x 38 mm (6.30 in. x 3.39 in. x 1.50 in.) Weight without packaging [kg(lb)] 0.320 kg (0.705 lb) Various installation modes for easy deployment, including wall-mounting and plate-mounting.
