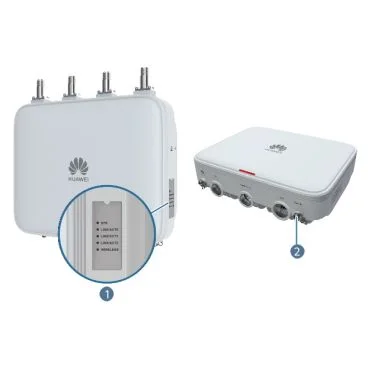

Huawei AirEngine6760R-51E Punto de acceso para exterior WiFi6 (802.11ax) 4+4 dual bands 5.95 Gbps Antena externa BLE Puertos

Huawei Enterprise AirEngine6760R-51E Punto de acceso WiFi6 para exterior con antenas externas, 4+4 dual bands y hasta 5.95 Gbps WiFi 6 802.11ax 4+4 dual bands 5.95 Gbps Antenas externas Puerto BLE IP68 Diseñado para entornos exigentes, este punto de acceso exterior garantiza una conectividad robusta gracias a su certificación IP68 contra polvo y agua. Su tecnología MU-MIMO 8x8 y soporte para bandas duales aseguran velocidades de hasta 5.95 Gbps, ideal para plazas, calles peatonales y espacios públicos que requieren alta capacidad y estabilidad en condiciones climáticas adversas. La gestión y operación se simplifican mediante su interfaz de consola Bluetooth integrada, permitiendo un mantenimiento eficiente sin necesidad de cables adicionales. Además, ofrece una protección superior contra sobretensiones de hasta 6 kA en puertos Ethernet y 5 kA en antenas, asegurando la durabilidad del equipo y la continuidad del servicio en escenarios industriales y al aire libre. Especificaciones técnicas General Item Specification Maximum heat dissipation [BTU/hour] 120.4 BTU/hour Maximum number of physical ports on the entire device 5GE (RJ45) x 1, 10M/100M/1000M/2.5GE/5GE auto-sensing GE (RJ45) x 1, 10M/100M/1000M auto-sensing 10GE optical port (SFP+), GE/10GE auto-sensing Atmospheric pressure [kPa] 53kPa - 106kPa ETSI 300 019-2-3 Ground Ground Wind resistance 67 m/s BLE BLE5.2 MTTR [hour] 0.5 hour Working modes Fit, Fat, and cloud management Almacenamiento NAND Flash 512 MB NOR Flash 16 MB MIMO spatial streams Radio 0 (2.4 GHz): 4x4 Radio 1 (5 GHz): 4x4 Antenna gain BLE: 5 dBi MTBF 91.9 year Condiciones de uso Temperatura de funcionamiento –40°C to +65°C (–40°F to +149°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) Temperatura de almacenamiento –40°C to +85°C (–40°F to +185°F) Long-term operating relative humidity [RH] 0% RH to 100% RH Long-term operating altitude [m(ft.)] –60 m to +5000 m (–196.85 ft to +16404.20 ft) Grado de protección IP68 Dimensiones y montaje Installation Type Wall Pole Dimensions without packaging (H x W x D) [mm(in.)] 85 mm x 270 mm x 220 mm (3.35 in. x 10.63 in. x 8.66 in.) Weight without packaging [kg(lb)] 3.1 kg (6.83 lb) Inalámbrico con antenas externas (AirEngine 6760R-51E) 8x8 MU-MIMO y son capaces de alcanzar una velocidad de dispositivo de hasta 5.95 Gbit/s. Radio number 2 Operating frequency band 2.4GHz 5GHz Wi-Fi standard 2.4 GHz: 802.11b/g/n/ax 5 GHz: 802.11a/n/ac/ac Wave 2/ax Singal radio transmit power [dBm] 2.4G: -10 dBm to 24 dBm/chain 5G: -10 dBm to 24 dBm/chain Frequency stability [ppm] +/-20 The dual-radio mode is supported with 4x4 4 MIMO on 2.4 GHz and 4x4:4 MIMO on 5 GHz Alimentación Consumo máximo 35.3 W Modo de alimentación PoE Rango de tensión de entrada PoE: 802.3bt/at Maximum transmit power 2.4 GHz: 30 dBm 5 GHz: 30 dBm (Note: This is the total MIMO radio power, the same as: 2.4 GHz: 24 dBm/chain 5 GHz: 24 dBm/chain) BLE: < 10 dBm 802.3bt power supply description No function is limited. 802.3at power supply description Wi-Fi: 2.4 GHz (2x2) + 5 GHz (2x2), without affecting the transmit power of radios Wired network port: The rate of the 5GE electrical port is reduced to GE or lower. The 5GE electrical port and the SFP+ optical port work as combo ports, and when one of them is working, the other is unavailable. The GE electrical port is unavailable. Red y protocolos Console port BLE console Service port surge protection 6 kA in common mode Antenna port surge protection [kA] 5 kA surge protection capability without external surge protection devices Radio interface External antenna
