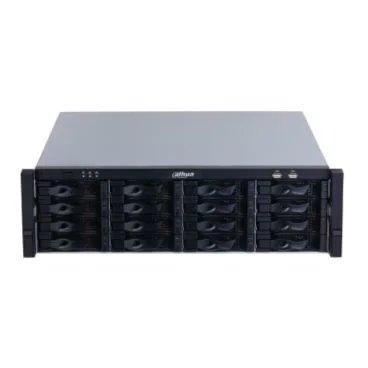

Dahua DHI-NVR616H-128-XI
Grabador de video inteligente de 128 canales con procesador industrial y sistema WizMind
128 canales de accesoProcesador industrialSistema Linux embebido16 puertos SATASoporte RAID 0/1/5/6/10Interfaz web y local
Este grabador Dahua de 3U está diseñado para entornos exigentes con un procesador de grado industrial que garantiza un funcionamiento estable. Soporta hasta 16 discos duros de 20 TB cada uno, permitiendo configuraciones RAID flexibles para asegurar la integridad de los datos y la continuidad operativa en instalaciones de seguridad críticas.
Gracias a la tecnología WizMind, el equipo realiza detección y reconocimiento facial, análisis de perímetro y detección de matrículas en múltiples canales simultáneamente. Su capacidad de compresión Smart H.265+ optimiza el almacenamiento sin perder calidad, mientras que sus múltiples salidas de video permiten la visualización en pantallas de alta resolución para centros de control.
Especificaciones técnicas
General
AI by RecorderFace detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD PlusAI by CameraFace detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD; stereo analysis, crowd distribution; people counting; ANPR; heat map; PPE detectionAcuPick AI by Camera + RecorderMax. 64-channel, 1 combined event per channelPerimeter Performance AI by Recorder (Number of Channels)Simultaneous mode: 32 channels, 10 IVS rules for each channel Heterogeneous mode: 24 channels, 10 IVS rules for each channel Refer to the information on video output for details on the modePerimeter Performance of AI by Camera (Number of Channels)All channels (64 targets/s)Face Attributes6 attributesSMD Plus by Recorder32 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition changeSMD Plus by CameraAll channels (128 targets/s)Metadata Performance of AI by Recorder (Number of Channels)8 channels, 23 attributes extraction.Metadata Performance of AI by Camera (Number of Channels)64 channelsPeople Attributes9 human body attributesMotor Vehicle Attributes9 attributesNon-motor Vehicle Attributes4 attributesANPR by Camera (Number of Channels)All channels (64 targets/s)Access Channel128 channelsDecoding CapabilityAI disabled: 2-channel 32 MP@30 fps; 2-channel 24 MP@30 fps; 4-channel 16 MP@30 fps; 5-channel 12 MP@30 fps; 8-channel 8 MP@30 fps; 11-channel 6 MP@30 fps; 12-channel 5 MP@30 fps; 16-channel 4 MP@30 fps; 32-channel 1080p@30 fps；128-channel D1@30 fps AI enabled: 1-channel 32 MP@30 fps; 1-channel 24 MP@30 fps; 2-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 4-channel 8 MP@30 fps; 5-channel 6 MP@30 fps; 6-channel 5 MP@30 fps; 8-channel 4 MP@30 fps; 16-channel 1080p@30 fps； 80-channel D1@30 fpsThird-party Camera AccessONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; HanwhaMobile Phone AccessiOS; AndroidMulti-channel PlaybackUp to 16 channelsRecord ModeGeneral, motion detection; intelligent; alarm; POSBackup MethodUSB device and networkPlayback ModeInstant playback; general playback; event playback; tag playback; smart playbackDisk GroupSíRAIDRAID 0/1/5/6/10Hot SwappingSíeSATA1RS-2321RS-4852 (1 port for half-duplex serial communication, 1 port for full-duplex serial communication)HDMI4VGA2Simultaneous mode8 channels (up to 12 face images/s each channel)Heterogeneous mode5 channels (up to 12 face images/s each channel)Resolución32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIFMulti-screen DisplayMain Screen: 1/4/8/9/16/25/36/64 Sub Screen: 1/4/8/9/16/25/36CertificationsClass A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
Sistema
Main ProcessorIndustrial-grade processorSistema operativoEmbedded Linux
Alimentación
Alimentación100–240 VAC, 50±2% HzConsumo<25 W (without HDD)
Red y protocolos
Operating InterfaceWeb, Local GUINetwork BandwidthAI disabled: 1280 Mbps incoming, 1280 Mbps recording and 1024 Mbps outgoing AI enabled: 640 Mbps incoming, 640 Mbps recording and 512 Mbps outgoingProtocolos de redHTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; SNMP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; PPPoE; FTP; DDNS; Alarm Server; IP Search (Supports IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration; iSCSIInteroperabilidadONVIF 22.06(Profile T; Profile S; Profile G); CGI; SDKNavegadorChrome; IE; Safari; Edge; FirefoxNetwork ModeMulti-address; load balance; fault toleranceDisk Interface16 SATA ports, each disk can contain up to 20 TB. This limit varies depending on the environment temperature.USB4 (2 front USB 2.0 ports, 2 rear USB 3.0 ports)Puerto de red4 (10/100/2500 Mbps Ethernet port, RJ-45)
Detección y alarmas
Alarmas generalesMotion detection; local alarm; alarm box; camera external alarm; network alarm; scene changing; PIR alarm; thermal alarmAnomaly AlarmError (no disk, disk error, low space, RAID exception, low quota space; abnormal disk health; network disconnection; IP conflict; MAC conflict; abnormal fan speed); video loss; video tampering; camera offline; audio detectionIntelligent AlarmFace detection; face and body detection; face recognition; perimeter protection; SMD; video metadata; stereo analysis, crowd distribution; ; ANPR; heat mapAcciones ante alarmaRecord; snapshot (panoramic); local alarm output; IPC external alarm output; access controller; audio; buzzer; log, preset; emailEntrada de alarma32 channelsSalida de alarma16 channels
Vídeo y audio
Salida de vídeo2 VGA, 4 HDMI; VGA: 1920 × 1080, 1280 × 1024, 1280 × 720; HDMI1&2: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; HDMI3: 7680 × 4320, 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; HDMI4: 1920 × 1080, 1280 × 1024, 1280 × 720 Simultaneous mode (simultaneously outputs video sources for all the HDMI1-4 and VGA1-2 ports) Max. resolution of VGA1 and VGA2 is 1080p; max. resolution of HDMI1 and HDMI2 is 4K; max. resolution of HDMI3 is 8K; max. resolution of HDMI4 is 1080p Heterogeneous mode (simultaneously outputs video sources for the VGA1 and HDMI1, or VGA2 and HDMI2. It also outputs heterogeneous video sources for HDMI1–4) Max. resolution of VGA1 and VGA2 is 1080p; max. resolution of HDMI1, HDMI2 and HDMI3 is 4K; max. resolution of HDMI4 is 1080pCompresión de vídeoSmart H.265+; H.265; Smart H.264+; H.264Compresión de audioG.711a; G.711u; PCM; G726Entrada de audio1-channel RCASalida de audio2-channel RCA
Dimensiones y montaje
Peso neto11.95 (26.35 lb)Peso bruto16.14 kg (35.58 lb)Dimensiones485.0 mm × 508.3 mm × 133.2 mm(19.09" × 20.01" × 5.24") (W × D × H)Packaging Dimensions634.0 mm × 709.0 mm × 429.0 mm(24.96" × 27.91" × 16.89") (W × D × H)InstalaciónRack or desktop
Condiciones de uso
Temperatura de funcionamiento–10 °C to +55 °C (14 °F to +131 °F)Temperatura de almacenamiento–20 °C to +60 °C (–4 °F to +140 °F)Humedad de funcionamiento10%–93% (RH), non-condensing
Almacenamiento
Face Database CapacityUp to 40 face databases with 300,000 images, with a total capacity of 48 G.License Plate Database Capacity1. Up to 20,000 plate numbers. 2. Blocklist and allowlist
