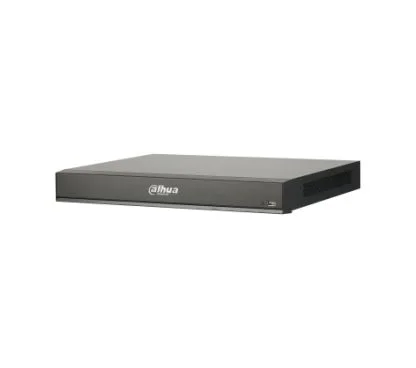

Dahua DHI-NVR5216-8P-I
Grabador de red mini de 16 canales con procesador multinúcleo y sistema operativo Linux embebido para gestión avanzada de vídeo
16 canales IPPoE 8 puertosH.265+320 MbpsReconocimiento facialHDMI y VGAHDD SATA IIIONVIF 2.4
Este grabador de red Dahua destaca por su potente capacidad de análisis inteligente, permitiendo la clasificación de objetos y el reconocimiento facial con hasta 20 bases de datos. Gracias a su compresión H.265+, optimiza el almacenamiento sin perder calidad, mientras que sus múltiples salidas HDMI y VGA facilitan la visualización en pantallas de alta resolución para un control centralizado eficiente.
La gestión de alarmas es sencilla y completa, con entradas y salidas de relé configurables para conectar sensores y activar dispositivos externos. Su interfaz web intuitiva y la compatibilidad con móviles iOS y Android permiten supervisar las cámaras desde cualquier lugar, asegurando la seguridad de sus instalaciones con un rendimiento estable y una gestión de usuarios robusta para entornos profesionales.
Especificaciones técnicas
General
Performance16 channel, 10 IVS rules for each channelObject classificationHuman/Vehicle secondary recognition for tripwire and intrusionAI SearchSearch by target classification (Human, Vehicle)PerformanceMax 24 face pictures /sec processing (modeling and comparing)Stranger ModeDetect strangers' faces(not in device's face database).Similarity threshold can be set manually.AI SearchUp to 8 target face images search at same time, similarity threshold can be set for each target face image.Database ManagementUp to 20 face databases with 100,000 face images in total. Name, gender, birthday, nationality, address, ID information can be added to each face picture.Database ApplicationEach database can be applied to video channels independently.Trigger EventsBuzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc.FaceGender, age, glasses, beard, mask.VehicleVehicle color, vehicle model, vehicle logo, plate color, vehicle decorations, call, seatbelt.Human BodyTops style,tops color,bottom style,bottom color, hat, bag.Non-motor VehicleType, color, people number.AI SearchSupport search target video by metadata.IP Camera Input16 ChannelTwo-way Talk1 Channel Input, 1 Channel Output, RCADecoding Capability4-ch@8MP(30fps), 16-ch@1080P(30fps)Record ModeManual, Schedule (Continuous, MD(Motion Detection) , Alarm, IVS)Record Interval1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 secTrigger EventsAlarm Out, Video Push, Email, Recording, PTZ, Tour, Snapshot, Voice Prompt, Buzzer and Screen TipsRelay Output2 ChannelSync Playback1/4/9/16Search ModeTime /Date, Alarm, MD and Exact Search (accurate to second)Backup ModeUSB Device/NetworkThird-party SupportArecont Vision, Airlive, AXIS, Canon, Dynacolor, JVC, LG, Panasonic, Pelco, PSIA, Samsung, Sanyo, Sony, Watchnet and moreMax. User Access128 usersSmart PhoneiPhone, iPad, AndroidInternal HDD2 SATA III Ports, Up to 8 TB capacity for each HDDeSATANo aplicaRS2321 Port, for PC Communication and KeyboardRS4851 Port, for PTZ ControlFanSmart fan, automatically adjust running speedCondiciones de funcionamiento10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpaULUL 60950-1Multi-screen Display1/4/8/9/16Bandwidth320Mbps (160Mbps when AI function enabled)Entrada de alarma4 ChannelStorage Conditions20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH
Red y protocolos
Interfaz1 HDMI, 1 VGAInterfaz1 RJ-45 Ports (10/100/1000Mbps)Network FunctionHTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.), P2PInteroperabilidadONVIF 2.4, SDK, CGIUSB2 USB Ports (1 Rear USB 3.0 , 1 Front USB 2.0 )
Alimentación
PoE8 ports (IEEE802.3af/at) 1-8 ports support ePoE & EoCAlimentaciónSingle, AC100V ~ 240V, 50 ~ 60 HzConsumoNVR: <15.6W (Without HDD)PoEMax 25.5W for single port
Dimensiones y montaje
Dimensiones1U, 375mm x 327.3mm x 53mm ; (14.8" x 12.9" x 2.1")Peso neto2.70kg (6.0 lb) (without HDD)Peso bruto4.00kg (8.8 lb) (without HDD)
Sistema
Main ProcessorMulti-core embedded processorSistema operativoEmbedded LINUX
Imagen y óptica
ResoluciónHDMI/VGA: 3840 × 2160 , 1920 × 1080 , 1280 × 1024, 1280 × 720 , 1024 × 768Resolución16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1 etc.
Vídeo y audio
CompresiónSmart H.265+/H.265/Smart H.264+/H.264/MJPEGVideo DetectionMotion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Scene Change
Certificaciones
CEEN55032, EN55024, EN50130-4, EN60950-1FCCPart 15 Subpart B, ANSI C63.4-2014
