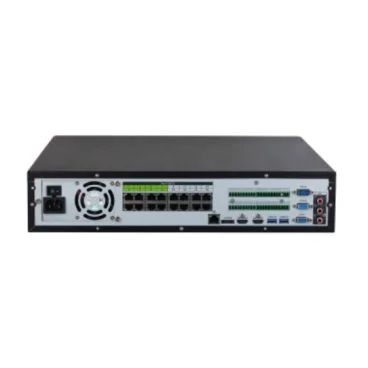

Dahua DHI-NVR5864-16P-EI
Grabador de vídeo industrial con procesador especializado y hasta 16 puertos PoE para gestionar cámaras de alta resolución.
Procesador industrial16 puertos PoEDetección facialReconocimiento facialProtección de perímetroSMD Plus
Este grabador Dahua integra inteligencia artificial avanzada directamente en el dispositivo y en las cámaras conectadas. Gracias a su capacidad de análisis de vídeo, permite identificar rostros, vehículos y objetos con gran precisión, reduciendo falsas alarmas causadas por condiciones ambientales.
Dispone de múltiples funciones de seguridad como el análisis estereoscópico, conteo de personas y mapas de calor. Su robusta arquitectura soporta entornos exigentes con temperaturas extremas, garantizando un funcionamiento estable y fiable para instalaciones críticas.
Especificaciones técnicas
Red y protocolos
Operating InterfaceWeb, Local GUINetwork BandwidthAI disabled: 384 Mbps incoming, 384 Mbps recording and 384 Mbps outgoing AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoingProtocolos de redHTTP; HTTPS; TCP/IP; IPv4/IPv6; UDP; SNMP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; PPPoE; FTP; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration; iSCSIInteroperabilidadONVIF 22.12 (Profile T; Profile S; Profile G); CGI; SDKNavegadorChrome;IE;Safari;Edge;FirefoxHDD Interface8 SATA ports, each disk can contain up to 20 TB. This limit varies depending on the environment temperature.USB4 (2 front USB 2.0 ports, 2 rear USB 3.0 ports)Puerto de red1(10/100/1000 Mbps Ethernet port, RJ-45)PoE Port16 ports, 10/100 Mbps, IEEE 802.3 af/at, 1-8 ports support ePoE
Detección y alarmas
Alarmas generalesMotion detection; privacy masking; local alarmAnomaly AlarmCamera offline; storage error; disk full; IP conflict; MAC conflict; login lock; abnormal behavior of fan; cybersecurity exceptionIntelligent AlarmFace detection; perimeter protection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat mapAcciones ante alarmaRecord; snapshot (panoramic); local alarm output; IPC external alarm output; access controller; audio; buzzer; log, preset; emailEntrada de alarma16 channelsSalida de alarma8 channels (1-channel 12 V 1 A output)
Vídeo y audio
Salida de vídeo2 VGA, 2 HDMI VGA:1920 × 1080, 1280 × 1024, 1280 × 720 HDMI:3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720Heterogeneous video source output for HDMI1 and HDMI2 Simultaneous video source output for VGA1 and HDMI1 Simultaneous video source output for VGA2 and HDMI2Compresión de vídeoSmart H.265+; H.265; Smart H.264+; H.264; MJPEGCompresión de audioG.711a; G.711u; PCM; G726Entrada de audio1-channel RCASalida de audio2-channel RCA
Dimensiones y montaje
Peso neto6.90 kg (15.21 lb)Peso bruto9.49 kg (20.92 lb)Dimensiones440.1 mm × 457.9 mm x 89.1 mm (17.32" × 18.03" × 3.51") (W ×D × H)Packaging Dimensions570.0 mm × 570.0 mm x 226.0 mm (22.44" × 22.44" × 8.90") (W ×D × H)InstalaciónRack or desktop
Condiciones de uso
Temperatura de funcionamiento–10 °C to +55 °C (14 °F to +131 °F)Temperatura de almacenamiento–20 °C to +60 °C (–4 °F to +140 °F)Humedad de funcionamiento10%–93% (RH)
Sistema
Main ProcessorIndustrial-grade processorSistema operativoEmbedded Linux
Alimentación
Alimentación100–240 VAC, 50-60 HzConsumoTotal output of NVR is ≤ 13 W (without HDD) Total output power of PoE is 150 W, the maximum output power of a single port is 25.5 W
General
AI by RecorderFace detection; face recognition; perimeter protection; SMD PlusAI by CameraFace detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat mapAcuPick AI by Camera + RecorderMax. 16-channel, 1 combined event per channel/sPerimeter Performance AI by Recorder (Number of Channels)4 channels, 10 IVS rules for each channelPerimeter Performance of AI by Camera (Number of Channels)16 channelsFace AttributesGender; age group; glasses; expressions; face mask; beardSMD Plus by Recorder8 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition changeSMD Plus by Camera16 channelsMetadata Performance of AI by Camera (Number of Channels)8 channelsHuman AttributesTop color, top type, bottom color, bottom type, hat, bag, age, gender and umbrellaMotor Vehicle AttributesLicense plate, plate color, vehicle body, vehicle model, vehicle logo, calling, seatbelt, vehicle interior, vehicle registration location.Non-motor Vehicle AttributesVehicle model, vehicle color, number of persons, helmet.ANPR by Camera (Number of Channels)8 channelsAccess Channel64Decoding CapabilityAI disabled: 2-channel 32 MP@25 fps; 2-channel 24 MP@25 fps; 4-channel 16 MP@30 fps; 5-channel 12 MP@30 fps; 8-channel 8 MP@30 fps; 12-channel 5 MP@30 fps; 16-channel 4 MP@30 fps; 32-channel 1080p@30 fps AI enabled: 1-channel 32 MP@25 fps; 1-channel 24 MP@25 fps; 2-channel 16 MP@30 fps; 4-channel 12 MP@30 fps; 6-channel 8 MP@30 fps; 8-channel 5 MP@30 fps; 12-channel 4 MP@30 fps; 24-channel 1080p@30 fpsThird-party Camera AccessONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; SamsungMobile Phone AccessiOS; AndroidMulti-channel PlaybackUp to 16 channelsRecord ModeGeneral, motion detection; intelligent; alarm; POSBackup MethodUSB device and networkPlayback ModeInstant playback, general playback, event playback, tag playback, smart playback (face and motion detection)Disk GroupSíRAIDRAID 0/1/5/6/10eSATA1RS-2321RS-4852 (1 port for half-duplex serial communication, 1 port for full-duplex serial communication)HDMI2VGA2Resolución32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 5 MP; 4 MP; 1080p; 720p; D1; CIF; QCIFMulti-screen DisplayMain screen: 1/4/8/9/16/25/36/64 Sub screen: 1/4/8/9/16CertificationsFCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032: 2015+A1: 2020; EN IEC 61000-3-2: 2019+A1: 2021; EN 61000-3-3: 2013+A1: 2019+A2: 2021; EN 55035: 2017+A11: 2020; EN 50130-4: 2011+A1: 2014 CE-LVD: EN 62368-1: 2014
Almacenamiento
Face Database CapacityUp to 20 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image.License Plate Database Capacity1. Create up to 20,000 plate numbers. 2. Blocklist and allowlist
