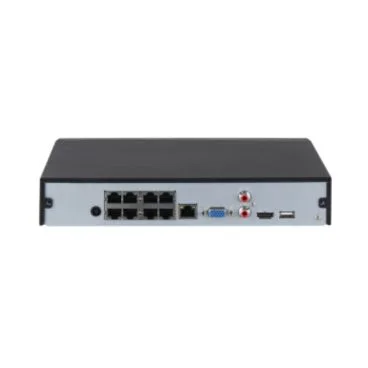

Dahua DHI-NVR4108HS-8P-EI
Grabadora de red industrial con procesador especializado y sistema Linux para gestión avanzada de vídeo
8 puertos PoE10/100/1000 MbpsHDMI y VGALinuxFace RecognitionSMD Plus
Esta grabadora de red Dahua destaca por su capacidad de análisis inteligente integrada directamente en el equipo. Dispone de hasta 10 bases de datos faciales con capacidad para 20.000 imágenes, permitiendo identificar personas y gestionar accesos con gran precisión. Su sistema de detección de perímetro y análisis de movimiento reduce falsas alarmas gracias a la tecnología SMD Plus.
Diseñada para entornos exigentes, soporta temperaturas extremas desde -10 hasta 55 grados centígrados y garantiza un funcionamiento estable. Conecta hasta 8 cámaras IP a través de sus puertos PoE y ofrece decodificación de hasta 16 canales en 1080p. Ideal para instalaciones industriales o de seguridad crítica que requieren fiabilidad y potencia de procesamiento superior.
Especificaciones técnicas
General
AI by RecorderFace detection, face recognition, perimeter protection, and SMD Plus;AI by CameraFace detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat mapPerimeter Performance AI by Recorder (Number of Channels)2 channels, 10 IVS rules for each channelPerimeter Performance of AI by Camera (Number of Channels)8 channelsFace AttributesGender; age group; glasses; expressions; face mask; beardSMD Plus by Recorder4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition changeSMD Plus by Camera8 channelsAccess Channel8 channelsDecoding CapabilityAI disabled: 2-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 4-channel 8 MP@30 fps; 6-channel 5 MP@30 fps; 8-channel 4 MP@30 fps AI enabled: 1-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 3-channel 8 MP@30 fps; 4-channel 5 MP@30 fps; 6-channel 4 MP@30 fps; 8-channel 1080p@30 fpsThird-party Camera AccessPanasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, CanonMobile Phone AccessiOS; AndroidMulti-channel PlaybackUp to 8 channelsRecord ModeGeneral, motion detection; intelligent; alarmBackup MethodUSB device and networkPlayback ModeInstant playback, general playback, event playback, tag playback, smart playbackHDMI1VGA1Face Database CapacityUp to 10 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image.Resolución16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIFMulti-screen Display1st Screen: 1/4/8/9 2nd Screen: 1/4/8/9CertificationsFCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
Detección y alarmas
Alarmas generalesMotion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarmAnomaly AlarmCamera disconnection; storage error; disk full; IP conflict; MAC conflict; login locked; and cybersecurity exceptionIntelligent AlarmFace detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat mapAcciones ante alarmaRecord; snapshot; IPC external alarm output; audio; buzzer; log; preset; email
Red y protocolos
Operating InterfaceWeb; Local GUINetwork BandwidthAI disabled: 256 Mbps incoming, 256 Mbps recording and 256 Mbps outgoing AI enabled: 180 Mbps incoming, 180 Mbps recording and 180 Mbps outgoingProtocolos de redHTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto registerInteroperabilidadONVIF 22.06(Profile T; Profile S; Profile G); CGI; SDKNavegadorChrome; IE9 and later; FirefoxHDD Interface1 SATA port, up to 16 TB.The maximum HDD capacity varies with environment temperature.USB2 (1 front USB 2.0 port, 1 rear USB 2.0 port)Puerto de red1 (10/100/1000 Mbps Ethernet port, RJ-45)PoE Port8 ports, 10/100 Mbps, IEEE 802.3 af/at
Vídeo y audio
Salida de vídeo1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable.Compresión de vídeoSmart H.265+; H.265; Smart H.264+; H.264; MJPEGCompresión de audioG.711a; G.711u; PCM; G726Entrada de audio1-channel RCASalida de audio1-channel RCA
Dimensiones y montaje
Peso neto0.92 kg (2.03 lb)Peso bruto2.05 kg (4.52 lb)Dimensiones260 mm × 232.7 mm × 47.6 mm (10.24" × 9.16" × 1.87") (W × L × H)Packaging Dimensions372 mm × 117 mm × 308 mm (14.65" × 4.61" × 12.13") (W × L × H)InstalaciónRack or desktop
Condiciones de uso
Temperatura de funcionamiento–10 °C to +55 °C (14 °F to +131 °F)Temperatura de almacenamiento–20 °C to +60 °C (–4 °F to +140 °F)Humedad de funcionamiento10%–93% (RH)
Sistema
Main ProcessorIndustrial-grade processorSistema operativoEmbedded Linux
Alimentación
Alimentación53 VDC, 1.812 AConsumoTotal output of NVR is <10 W(without HDD) Total output power of PoE is 72W,the maximum output power of asingle port is 25.5W
