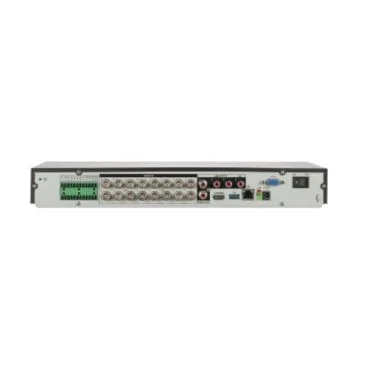

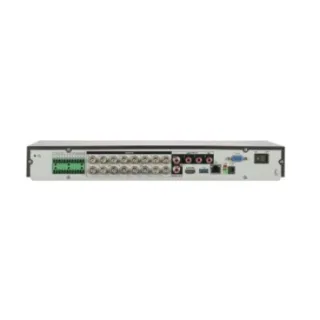

Dahua DH-XVR5216A-I3
Grabadora de vídeo digital WizSense con procesador industrial y sistema Linux para gestión de hasta 24 canales IP o 16 analógicos
H.265+Dual-streamSMD PlusFace RecognitionPerimeter ProtectionAI Coding
Esta grabadora Dahua integra inteligencia artificial avanzada para la detección precisa de personas y vehículos, reduciendo falsas alarmas gracias a su tecnología SMD Plus. Compatible con múltiples formatos de cámara, ofrece una gestión eficiente del almacenamiento y un rendimiento superior en entornos exigentes.
Optimiza el ancho de banda y el espacio de disco con su compresión H.265+ y codificación inteligente, manteniendo la calidad de la imagen. Su interfaz web y soporte para móviles facilitan el control remoto, mientras que sus puertos de audio y alarmas permiten una integración completa en sistemas de seguridad profesionales.
Especificaciones técnicas
Vídeo y audio
AI Video Quality Analytics by Recorder16 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and whiteDual-streamSíTasa de bits de vídeo32 kbps–6144 kbpsAudio Sampling8 kHz, 16 bitTasa de bits de audio64 kbpsSalida de vídeo1 HDMI, 1 VGA VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 It changes to 1920 × 1080, 1280 × 1024, 1280 × 720 when Face or IVS&SMD is selected in AI Mode.Compresión de vídeoAI Coding; Smart H.265+; H.265; Smart H.264+; H.264Compresión de audioG.711a; G.711u; PCMEntrada de audio4-channel RCA 16-channel BNC (Coaxial Audio)Salida de audio1-channel RCA
Red y protocolos
Operating InterfaceWeb; Local GUIProtocolos de redHTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)InteroperabilidadONVIF 23.12 (Profile T; Profile S; Profile G); CGI; SDKNavegadorChrome; IE; Safari; Edge; FirefoxDisk Interface2 SATA ports. Each disk can contain up to 16 TB. This limit varies depending on the environment temperature.USB2 (1 front USB 2.0 port, 1 rear USB 3.0 port)Puerto de red1 (10/100/1000 Mbps Ethernet port, RJ-45)
Detección y alarmas
Alarmas generalesMotion detection; local alarm; alarm box; HDCVI alarm; camera external alarm; network alarm; PIR alarmAnomaly AlarmError (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offlineIntelligent AlarmFace detection; face recognition; perimeter protection; SMD PlusAcciones ante alarmaRecord; snapshot (panoramic); local alarm output; IPC external alarm output; audio; buzzer; log; preset; emailEntrada de alarma16 channelsSalida de alarma3 channels
Sistema
Main ProcessorIndustrial-grade processorSistema operativoEmbedded Linux
Almacenamiento
Face Database CapacityUp to 10 face databases with 10,000 images.Encoding CapacityMain stream: 5 MP Mode: 4-ch 5 MP@(1 fps-6 fps); others 5M-N@(1 fps-12 fps) 5M-N Mode: 5M-N@(1 fps –12 fps); 4M-N/1080p@(1 fps–15 fps); 1080N/720p/960H/D1/CIF@(1 fps–25/30 fps) Sub stream: D1/CIF@(1 fps–15 fps)
Alimentación
Alimentación12 VDC, 4 AConsumo<12 W(without HDD)
General
DH-XVR5216A-I316CH Penta-brid 5MP Value/1080P 1U 2HDDs WizSense Digital Video RecorderPerimeter Performance AI by Recorder (Number of Channels)Advanced Mode: 2 channels, 10 IVS rules for each channel General Mode: 4 channels, 10 IVS rules for each channelFace Attributes6 attributesSMD Plus by Recorder16 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition changeSMD Plus by Camera24 channelsScene Changing by Recorder1 channelIrregular Black Block Masking by Recorder1 channelAnalog Camera Input16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detectCamera Input1. CVI: 5 MP@25 fps; 5 MP@20 fps; 5 MP@10/12.5 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@50/60 fps; 720p@25/30fps. 2. TVI: 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps. 3. AHD: 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.IP Camera InputUp to 24 channels of IPC access 8 IP channels by default + 16 channels (analog channels are converted to IP channels) incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps *After IP extension is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, SMD, Perimeter Protection cannot be used.Third-party Camera AccessPanasonic; Sony; Hanwha; Axis; Arecont; ONVIFMobile Phone AccessiOS; AndroidRecord ModeGeneral; alarm; motion detection; intelligent; POSRecording Playback1/4/9/16 It changes to 1/4/9 split when Face or IVS&SMD is selected in AI Mode.Backup MethodUSB device and networkPlayback ModeInstant playback; general playback; event playback; tag playback; smart playbackDisk GroupSíTwo-way TalkYes (share the same audio input with the first channel)RS-4851HDMI1VGA1Multi-screen DisplayWhen IP extension mode not enabled: 1/4/8/9/16 When IP extension mode enabled: 1/4/8/9/16/25CertificationsCE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B
Dimensiones y montaje
Peso neto1.64 kg (3.62 lb)Peso bruto2.94 kg (6.49 lb)Dimensiones375.0 mm × 289.6 mm × 53.0 mm (14.76" × 11.39" × 2.09") (W × D × H)Packaging Dimensions433.0 mm × 141.0 mm × 366.0 mm (17.05" × 5.55" × 14.41") (W × D × H)InstalaciónDesktop
Condiciones de uso
Temperatura de funcionamiento–10 °C to +55 °C (+14 °F to +131 °F)Temperatura de almacenamiento–20 °C to +60 °C (–4 °F to +140 °F)Humedad de funcionamiento10%–90% (RH), non-condensing
