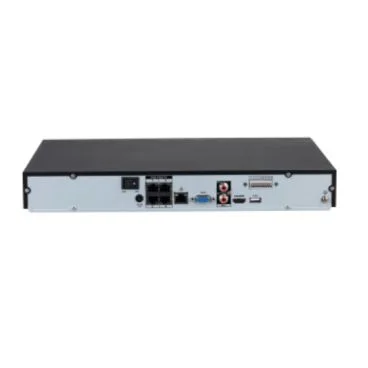

Dahua DHI-NVR4204-P-EI
Grabadora de red industrial con procesador de grado industrial y sistema operativo Linux, diseñada para entornos exigentes de -10 a 55 grados.
Procesador industrialLinux embebido16 MP decodificaciónDetección facialProtección perímetroSMD Plus4 puertos PoEHDMI y VGA
Esta grabadora de red Dahua combina potencia de procesamiento industrial con capacidades avanzadas de inteligencia artificial. Soporta hasta 16 canales en decodificación simultánea y gestiona múltiples bases de datos faciales para una identificación precisa. Su robustez permite operar en condiciones extremas de temperatura, garantizando el funcionamiento continuo en entornos industriales o exteriores.
Optimiza la seguridad con funciones como detección facial, reconocimiento de género y edad, y análisis de calor. El sistema SMD Plus reduce falsas alarmas filtrando hojas y lluvia. Compatible con cámaras de terceros mediante ONVIF, ofrece una interfaz web intuitiva y acceso móvil desde iOS y Android para un control total de tu sistema de videovigilancia.
Especificaciones técnicas
General
AI by RecorderFace detection, face recognition, perimeter protection, and SMD PlusAI by CameraFace detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat mapPerimeter Performance AI by Recorder (Number of Channels)2 channels, 10 IVS rules for each channelPerimeter Performance of AI by Camera (Number of Channels)4 channelsFace AttributesGender; age group; glasses; expressions; face mask; beardSMD Plus by Recorder4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition changeSMD Plus by Camera4 channelsAccess Channel4 channelsDecoding CapabilityAI disabled: 2-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 4-channel 8 MP@30 fps AI enabled: 1-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 3-channel 8 MP@30 fps; 4-channel 5 MP@30 fpsThird-party Camera AccessPanasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, CanonMobile Phone AccessiOS; AndroidMulti-channel PlaybackUp to 4 channelsRecord ModeGeneral, motion detection; intelligent; alarmBackup MethodUSB device and networkPlayback ModeInstant playback, general playback, event playback, tag playback, smart playbackDisk GroupSíHDMI1VGA1Face Database CapacityUp to 10 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image.Resolución16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIFMulti-screen Display1st Screen: 1/4 2nd Screen: 1/4CertificationsFCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
Condiciones de uso
Temperatura de funcionamiento–10 °C to +55 °C (14 °F to +131 °F)Temperatura de almacenamiento–20 °C to +60 °C (–4 °F to +140 °F)Humedad de funcionamiento10%–93% (RH)
Alimentación
Alimentación53 VDC, 1.81 AConsumoTotal output of NVR is <10 W(without HDD) Total output power of PoE is 48W,the maximum output power of asingle port is 25.5W
Red y protocolos
Operating InterfaceWeb; Local GUINetwork Bandwidth80 Mbps incoming, 80 Mbps recording and 80 Mbps outgoingProtocolos de redHTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto registerInteroperabilidadONVIF 22.06(Profile T; Profile S; Profile G); CGI; SDKNavegadorChrome; IE9 and later; FirefoxHDD Interface2 SATA ports, up to 16 TB.The maximum HDD capacity varies with environment temperature.USB2 (1 front USB 2.0 port, 1 rear USB 2.0 port)Puerto de red1 (10/100 Mbps Ethernet port, RJ-45)PoE Port4 ports, 10/100 Mbps, IEEE 802.3 af/at
Detección y alarmas
Alarmas generalesMotion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarmAnomaly AlarmCamera disconnection; storage error; disk full; IP conflict; MAC conflict; login locked; and cybersecurity exceptionIntelligent AlarmFace detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat mapAcciones ante alarmaRecord; snapshot; IPC external alarm output; audio; buzzer; log; preset; emailEntrada de alarma4 channelsSalida de alarma2 channels
Vídeo y audio
Salida de vídeo1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable.Compresión de vídeoSmart H.265+; H.265; Smart H.264+; H.264; MJPEGCompresión de audioG.711a; G.711u; PCM; G726Entrada de audio1-channel RCASalida de audio1-channel RCA
Dimensiones y montaje
Peso neto1.58 kg (3.48 lb)Peso bruto2.95 kg (6.50 lb)Dimensiones375 mm × 284.3 mm × 53 mm (14.76" × 11.19" × 2.09") (W × L × H)Packaging Dimensions433 mm × 141 mm × 366 mm (17.05" × 5.55" × 14.41") (W × L × H)InstalaciónRack or desktop
Sistema
Main ProcessorIndustrial-grade processorSistema operativoEmbedded Linux
