‡Use of WiFi 6 (802.11ax) and its features, including OFDMA, HE160, and 1024-QAM, require clients to support the corresponding features. The 160 MHz bandwidth is only available on the 6 GHz band. It may be unavailable in some regions/countries due to regulatory restrictions.
§Omada Mesh, Seamless Roaming, and Captive Portal require the use of Omada SDN controllers. Go to to find all the models supported by Omada mesh technology to find all the models supported by Omada mesh technology, and refer to the User Guides of Omada SDN controllers for configuration methods.
*Zero-Touch Provisioning and Auto Channel Selection and Power Adjustment require the use of Omada Cloud-Based Controller. Go to to confirm which models are compatible with Omada Cloud-Based Controller.

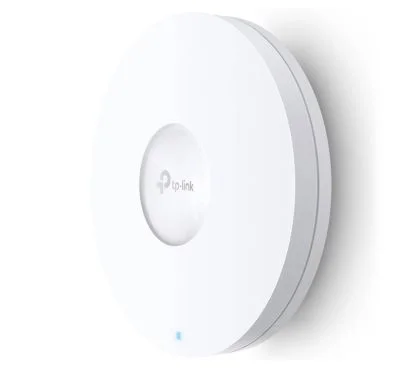

TP-Link EAP690E HD
Access Point de techo con Wi-Fi 6E y puerto 10G para entornos densos
Wi-Fi 6E10G RJ45PoE++Omada MeshRoaming1024-QAM
Disfruta de una conectividad sin precedentes con la tecnología WiFi 6E, que ofrece velocidades de hasta 1201 Mbps en la banda de 6 GHz. Este punto de acceso está diseñado para entornos con alta densidad de dispositivos, minimizando la congestión y garantizando conexiones rápidas y estables gracias a sus antenas internas omnidireccionales de alto rendimiento.
Integrado en la plataforma Omada SDN, permite una gestión centralizada y remota desde la nube o localmente, facilitando el mantenimiento de toda la red. Su puerto Ethernet de 10 Gbps y alimentación PoE++ aseguran un rendimiento óptimo, mientras que funciones como el balanceo de carga y la asignación automática de canales optimizan la experiencia de usuario en cualquier lugar.
Especificaciones técnicas
WIRELESS FEATURES
Wireless StandardsIEEE 802.11ax/ac/n/g/b/aFrequency2.4 GHz • 5 GHz • 6 GHzSignal Rate6 GHz: 4× 1201 Mbps • 5 GHz_1: 4× 600 Mbps • 5 GHz_2: 4× 600 Mbps • 2.4 GHz: 4× 287 MbpsWireless Functions1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • MU-MIMO • HE160 (160 MHz Bandwidth) ‡ • Seamless Roaming § • Omada Mesh § • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/ClientWireless SecurityCaptive Portal Authentication § • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/EnterpriseTransmission PowerCE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz_1, EIRP) <30 dBm(5 GHz_2, EIRP) <23 dBm(6 GHz, EIRP) • FCC: <26 dBm (2.4 GHz) <26 dBm (5 GHz_1) <26 dBm (5 GHz_2) <25 dBm (6 GHz)Omada AppSíCentralized ManagementOmada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based ControllerCloud AccessYes (Through OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller)Email AlertsSíLED ON/OFF ControlSíManagement MAC Access ControlSíSNMPv1, v2c, v3System Logging Local/Remote SyslogLocal/Remote SyslogSSHSíWeb-based ManagementHTTP/HTTPSL3 ManagementSíMulti-site ManagementSíManagement VLANSíCertificacionesCE, FCC, RoHS, ICPackage ContentsEAP690E HD • Power Adapter • Ceiling/Wall Mounting Kits • Installation GuideEnvironmentOperating Temperature: 0–40 ? (32–104 ?) • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
Características
WiFi6 on 6 GHz BandAX11000 Quad-Band WiFi 6High-Efficiency WiFi 6Centralized Cloud Management10GE Wired PerformanceAuto Channel Selection and Power AdjustmentOmada Mesh TechnologySeamless RoamingPoE++ Powered
HARDWARE FEATURES
Interfaz1× 10 Gigabit Ethernet (RJ45) Port (supports IEEE802.3bt PoE++)ButtonResetAlimentación802.3bt PoE++ • 12 V DCConsumoEU: 47 W • US: 51 WDimensiones11.0 × 11.0 × 2.3 in (280 × 280 × 59.1 mm)Antenna TypeInternal Omni • 2.4 GHz: 4× 4 dBi • 5 GHz_1: 4× 5 dBi • 5 GHz_2: 4× 5 dBi • 6 GHz: 4× 4.5 dBiMountingCeiling /Wall Mounting (Kits included)
