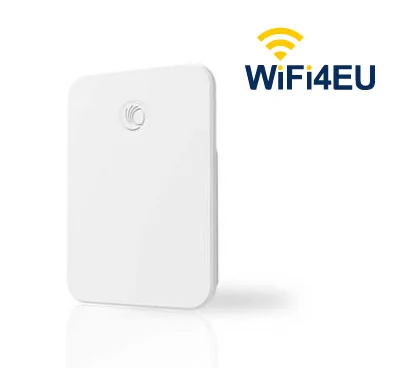

Cambium PL-E510X00A-EU cnPilot e510 Outdoor APV(EU) 802.11ac wave 2, 2x2, 8 dBi, INYECTOR POE NO INCLUIDO

Cambium PL-E510X00A-EU Punto de acceso WLAN para exteriores con estándar 802.11ac Wave 2 y tecnología MIMO 2x2 802.11ac Wave 2 MIMO 2x2 Antena 8 dBi IP67 Roaming 802.11r PoE 802.3af/at El cnPilot e510 es un punto de acceso diseñado para exteriores que soporta hasta 256 clientes y 16 SSIDs simultáneos. Cuenta con tecnología AutoRF para optimizar el entorno de radiofrecuencia sin necesidad de controlador, garantizando una conexión estable y eficiente en entornos industriales o públicos. Gracias a su certificación IP67 y resistencia a vientos de hasta 224 km/h, este dispositivo opera en temperaturas extremas entre -40 y 65 grados. Incluye filtros LTE en bandas 38 y 40, protección contra sobretensiones y herramientas de diagnóstico remoto para facilitar el mantenimiento y la detección de interferencias. Especificaciones técnicas General Max Phy Rate 2.4 GHz radio: 400 Mbps 5 GHz radio: 867 Mbps Max EIRP 2.4 GHz: 32 dBm 5 GHz: 34.5 dBm EIRP may be limited by individual country regulation Controller modes Controller-less standalone AutoPilot heterogeneous network Cloud managed cnMaestro On-premises cnMaestro VM WLAN 256 clients, 16 SSIDs WPA-TKIP, WPA2 AES, 802.1x 802.11w PMF WPA2 (802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK, Open Captive Portal Hosted on cnMaestro Controller On-AP hosted guest portal Redirect to HTTP/RADIUS Server DNS logging Authentication Hotspot 2.0/Passpoint 2.0 802.1x EAP-SIM/AKA, EAP-PEAP, EAP-TTLS, EAP-TLS MAC authentication to local database or external RADIUS Accounting Yes. Supports RADIUS based accounting to multiple AAAs Scheduled SSID Turn SSID ON/OFF on a daily/weekly/time of day basis Guest Access Vouchers, Rate Limit, Splash page hosted on AP or cnMaestro Client isolation per SSID, per network Data Limit Client rate limit per SSID QoS WMM Fast Roaming 802.11r, OKC, Enhanced roaming Mesh Multi-hop, either band Channel Selection autoTune: Manual, or automatic Selectable off-channel scan Tunnel L2TP, L2oGRE, PPPoE Tools Remote Packet capture, Channel/noise/interference analyzer, auto logging, ZapD performance test tool, rogue AP detection Services NTP, Syslog, SNMP traps, DNS proxy, auto-off on WAN failure Operating temp 40C - +65C Physical Environmental IP67 rated housing Wind Resistance 224 kph 320mm x 215mm x 65mm 1100g Kensington lock slot Two multi-color status LEDs -40C - + 65C ambient op temp -40C - + 70C storage temperature 95% RH non-condensing Overvoltage protection, category 1 Certifications WiFi Alliance 80211a/b/g/n/ac, Passpoint 2.0 FCC, ETSI, CE, EN 60601-1-2, IEC60950, EN50121-1 Railway EMC EN50121-4 Railway Immunity IEC 61373 Railway Shock & Vibration Red y protocolos Ethernet Ports One IEEE Gigabit Ethernet auto sensing Network NAT, NAT logging firewall, DHCP server L2, L3 or DNS based access control VLAN Pooling, RADIUS attribute VID VLAN per SSID per user API RESTful management and statistics API Presence location APIs Inalámbrico Antenna Integrated dual polarized, omni direction 8dBi (2.4GHz) 9dBi (5GHz) LTE Filter LTE bands 38, 40 Band Street Load Balance Sí Alimentación Alimentación 802.3af or 802.3at Powered Device Max 12.95w (802.3af) Auto Tx Power AutoRF: controller-less transmit power
