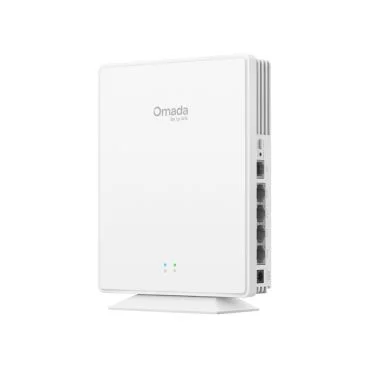

TP-Link EAP603GP-DESKTOP
Punto de acceso Wi-Fi 6 de banda dual para escritorio con puerto GPON integrado y cuatro puertos Gigabit
Wi-Fi 6 AX1800Puerto GPON SC-APC4 puertos GigabitMU-MIMORoaming sin interrupcionesControl Omada
Este dispositivo combina la potencia de la tecnología Wi-Fi 6 con la capacidad de llevar internet a través de fibra óptica gracias a su puerto GPON integrado. Ideal para oficinas o hogares que requieren conectar múltiples dispositivos a alta velocidad mediante sus cuatro puertos Ethernet Gigabit, ofreciendo una cobertura de hasta 1500 pies cuadrados con antenas internas omnidireccionales de alto rendimiento.
Gestiona todos tus equipos de red de forma centralizada a través de la suite Omada, permitiendo configuraciones avanzadas como redes de malla, control de acceso y seguridad robusta. Su diseño compacto permite instalarlo fácilmente sobre un escritorio o en la pared, facilitando la expansión de tu red inalámbrica con velocidades de hasta 1201 Mbps en la banda de 5 GHz y 574 Mbps en la de 2,4 GHz.
Especificaciones técnicas
WIRELESS FEATURES
Coverage140?(1500ft²)Concurrent Clients120+Wireless StandardsIEEE 802.11 a/b/g/n/ac/axFrequency2.4 GHz and 5 GHzSignal Rate5 GHz: 1201 Mbps † • 2.4 GHz: 574 MbpsWireless Functions2×2 (2.4G & 5G) MU-MIMO ‡ • HE80 (80 MHz Bandwidth) ‡ • OFDMA ‡ • Seamless Roaming § • Mesh § • Enable/Disable SSID Broadcast • Enable/Disable Wireless Radio • Guest Network • Automatic Channel Assignment • Beamforming • Rate Limit • Band Steering • Load Balance • Airtime Fairness • Transmit Power Control (Adjust Transmit Power on dBm) • QoS (WMM) • RADIUS Accounting • MAC Authentication • Reboot Schedule • Wireless Schedule and Statistics • Static IP/Dynamic IPWireless SecurityCaptive Portal Authentication § • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/EnterpriseTransmission PowerCE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, band1 & band2, EIRP) <27 dBm(5 GHz, band3, EIRP) • FCC: <25 dBm (2.4 GHz) <25 dBm (5 GHz)Omada AppSíCentralized ManagementOmada Hardware Controller (OC300, OC200) • Omada Software Controller • Omada Cloud-Based ControllerCloud AccessYes. Require the use of an Omada controller.Email AlertsSíLED ON/OFF ControlSíManagement MAC Access ControlSíSNMPv1, v2c, v3System Logging Local/Remote SyslogSystem LogSSHSíWeb-based ManagementSíZero-Touch ProvisioningYes. Require the use of Omada Cloud-Based Controller.CertificacionesCE, FCC, RoHS, ICPackage ContentEAP603GP-Desktop • Desktop/Wall Mounting Kit • Installation GuideSystem RequirementsMicrosoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, LinuxEnvironmentOperating Temperature: 0–40 ? (32–104 ?) • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
HARDWARE FEATURES
Interfaz1x GPON Port • 1x FXS Port • 4x Gigabit Ethernet PortsGPON InterfacePort Type: SC-APC • Standards and Protocols: ITU-984.x, G.988, Class B+ • Data Rate: 2.488 Gbps (Downstream); 1.244 Gbps (Upstream) • Fiber Type: 9/125 um Single mode • Max. Cable Length: 20 kmButtonReset • LEDAlimentación12V/1.5A DCMax. Power Consumption15.5 WPeso437gDimensiones6.9 × 5.5 × 1.3 in (175 × 140 × 33 mm)AntennaInternal Omni • 2.4 GHz: 2× 5 dBi • 5 GHz: 2× 4.5 dBiMountingDesktop / Wall mouting (Kits included)
Características
Seamless 1.8 Gbps WiFi 6 Speeds1201 Mbps on 5 GHz & 574 Mbps on 2.4 GHz†Multiple Ports for More Devices: 1× GPON port for high-speed, long-range access and 4× Gigabit RJ45 ports provide high-speed connections to more devicesOne Fiber for Multiple ServicesWired, wireless, voice, data, and HD video servicesEasy UseOne-click pairing and automatic adoptionHigh FlexibilitySupports both desktop and wall mounting setups
