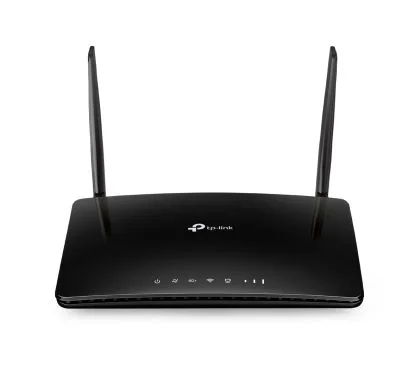

TP-Link Archer MR500
Enrutador Gigabit 4G Cat6 LTE avanzado AC1200 con módem integrado de 300 Mbps
4G Cat6AC1200Dual BandGigabitPoEeSIMRoHSCE
Disfruta de una conexión móvil de alta velocidad con este dispositivo que combina un módem avanzado de 300 Mbps y una red Wi-Fi AC1200. Su diseño compacto y las dos antenas LTE externas desmontables garantizan una señal estable y eficiente para todos tus dispositivos, incluso en zonas con cobertura limitada.
Configurado para funcionar sin complicaciones, este enrutador es compatible con más de 100 países y asegura la compatibilidad de las tarjetas SIM. Además, puedes conectarlo mediante cable Ethernet para acceder a la red de forma flexible, sirviendo como una opción de respaldo fiable si la conexión 4G falla.
Especificaciones técnicas
WIRELESS FEATURES
Wireless StandardsIEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHzFrequency2.4 GHz and 5 GHzSignal Rate300 Mbps at 2.4 GHz, 867 Mbps at 5 GHzReception Sensitivity5 GHz: 11a 54M: -77 dBm 11ac HT20: -73 dBm 11ac HT40: -68 dBm 11ac HT80 : -64 dBm 11n HT20: -77 dBm 11n HT40: -73 dBm 2.4 GHz: 11g 54M: -74 dBm 11n HT20: -72 dBm 11n HT40: -69 dBmTransmit Power< 20 dBm (2.4 GHz), < 23 dBm (5 GHz)Wireless FunctionsEnable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless StatisticsWAN FailoverSíWireless Security64/128-bit WEP, WPA/WPA2 Personal, WPA/WPA2 EnterpriseNetwork TypeCompatible with the majority of mobile operators and supports 4G/3G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz) TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz) DC-HSPA+/HSPA/UMTS: B1/B3/B5/B8 (2100/850/900 MHz)
Características
Interfaz1 × 10/100/1000 Mbps LAN/WAN Port 3 × 10/100/1000 Mbps LAN Ports 1 × Nano SIM Card SlotDimensiones202 × 141 × 33.6 mm (7.95 × 5.55 × 1.32 in)Antenna2 Detachable External LTE Antennas
SOFTWARE FEATURES
Quality of ServiceQuality of Service Prioritizes network traffic by device Parental Controls URL Filtering, Time ControlsSecurityDoS, IPv4 SPI Firewall, IPv6 Firewall, IP and MAC Address Binding, Access Control, Service FilteringWAN TypeDynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)ManagementTP-Link Cloud, Local Management, Remote ManagementDHCPServer, DHCP Client List, Address ReservationPort ForwardingALG, Virtual Server, Port Triggering, UPnP, DMZDynamic DNSTP-Link, DynDns, NO-IPVPNVPN Server: PPTP VPN, OpenVPNParental ControlsURL Filtering, Time ControlsProtocolosIPv4, IPv6Guest Network2.4 GHz Guest Network x 1, 5 GHz Guest Network x 1CertificacionesCE, RoHSPackage Contents4G+ Cat6 300 Mbps LTE AC1200 Wireless Dual Band Gigabit Router Archer MR500 Power Adapter RJ45 Ethernet Cable Quick Installation GuideEnvironmentOperating Temperature: 0?~40? (32? ~104?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
