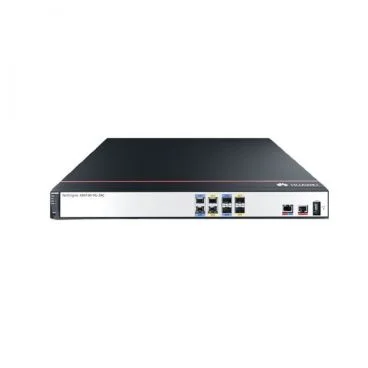

Huawei AR6140E-9G-2AC Router de alto rendimiento con procesador multicore y estructura non-blocking switching, Forwarding

Huawei Enterprise AR6140E-9G-2AC
Router de alto rendimiento con procesador multicore y estructura non-blocking switching

Forwarding performance 2Gbps5x GE RJ454x GE SFP1x USB 3.04x SICProcesador 1.4 GHz4 GB de memoriaDual power supply

Descubre la potencia de la familia AR de Huawei, diseñada para ofrecer funciones esenciales como SD-WAN, enrutamiento, conmutación, VPN y seguridad. Este dispositivo de próxima generación actúa como un router y puerta de enlace versátil, capaz de gestionar voz y MPLS con una fiabilidad de clase de operador, garantizando que tu red opere sin interrupciones.

Con una estructura non-blocking switching y un rendimiento de reenvío de 2 Gbps, este router asegura una transmisión de datos rápida y eficiente. Cuenta con alimentación redundante y módulos intercambiables en caliente, lo que protege tu infraestructura contra fallos y permite actualizaciones de software sin detener el servicio, ideal para entornos empresariales exigentes.

Especificaciones técnicas

Alimentación

Consumo máximo28 WModo de alimentaciónAC built-inNumber of power modules2Tensión de entrada100 V to 240 V, 50 Hz/60 HzRango de tensión de entrada90 V to 264 V, 47 Hz to 63 HzMaximum input current [A]2 AMaximum output power [W]70 WRedundant power supplyDual power supplies in 1:1 backup modePoENo compatibleThe ARs support redundant power supply units. If one power supply unit is faulty, the device will still be able to operate.

Dimensiones y montaje

Installation typeRackDimensions without packaging (H x W x D) [mm(in.)]Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 428.2 mm (1.75 in. x 17.4 in. x 16.86 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 431.2 mm (1.75 in. x 17.4 in. x 16.98 in.)Dimensions with packaging (H x W x D) [mm(in.)]175 mm x 710 mm x 550 mm (6.89 in. x 27.95 in. x 21.65 in.)Weight with packaging [kg(lb)]7.75 kg (17.09 lb)Weight without packaging [kg(lb)]5.35 kg (11.79 lb)

Sistema

Procesador1.4 GHz, 4 CoresMTBF64.50 yearsThe ARs support in-service patching so that the system software can be upgraded during system operation.

Almacenamiento

Memory4 GBNAND Flash1 GB

General

NOTEWhen the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).ItemSpecificationChassis height [U]1 URTCCompatibleType of fansIntegradoNumber of fan modules0Heat dissipation modeAir coolingAirflow directionLeft to rightNumber of service board slots4MTTR [hours]2 hoursAvailability0.9999964601The ARs protect networks against attacks.

Condiciones de uso

Noise at normal temperature (acoustic power) [dB(A)]49.9 dB(A)Temperatura de funcionamiento0°C to 45°C (32°F to 113°F)Temperatura de almacenamiento40°C to +70°C (-40°F to +158°F)Long-term operating relative humidity [RH]5% RH to 95% RH, non-condensingLong-term operating altitude [m(ft.)]< 5000 m (16404.2 ft.)

Red y protocolos

Console portRJ45The ARs provide hot swappable interface cards, standby SRU, power module, fan module, and optical module, ensuring carrier-class reliability.

Certificaciones

Extended slots (standard configuration)4 x SICThe ARs are designed to provide quality service and comply with telecommunication standards.
