Huawei AR6121E Router alto rendimiento, procesador multicore y non-blocking switching, Forwarding 2 Gbps, Puertos 1x combo GE o SFP WAN, 1x 10GE(SFP+) WAN, 1x GE WAN, 8x GE LAN, 2x USB 2x SI

Name: Huawei AR6121E Router alto rendimiento, procesador multicore y non-blocking switching, Forwarding 2 Gbps, Puertos 1x combo GE o SFP WAN, 1x 10GE(SFP+) WAN, 1x GE WAN, 8x GE LAN, 2x USB 2x SI
Brand: Huawei Enterprise
SKU: IBT-INB28455
Price: 568.95 EUR
Availability: InStock

Fabricante Huawei Enterprise

568,95 €

Base imponible 470,21 € + 21 % de IVA

SKUIBT-INB28455

Envíos a toda EspañaEntrega según disponibilidad

Pago seguroTarjeta mediante Redsys

IVA incluidoPrecio final con impuestos

Características

Información relevante para otros productos

Ver 3 características técnicas adicionales

Velocidad de red: 1 Gbps
Número de puertos: 8 puertos
PoE: Sí

Descripción

Port	Connector Type	Description	Available Components
Console interface	RJ45	The console interface can connect to an operation terminal for onsite configuration. Standards compliance: RS232 Working mode: duplex Universal Asynchronous Receiver/Transmitter (UART) Data equipment type: Data Circuit-terminating Equipment (DCE)	Console cable
LAN interfaces: eight GE electrical interfaces	RJ45	A GE electrical interface (10/100/1000 Mbit/s auto-sensing) transmits and receives services at 10 Mbit/s, 100 Mbit/s, or 1000 Mbit/s. Standards compliance: IEEE802.3, IEEE802.3u, and IEEE802.3ab Working mode: full-duplex (10/100/1000 Mbit/s auto-sensing) Maximum distance: 100 m NOTE: GE0 is a management interface and is used for web-based management and email-based deployment. All LAN-side GE interfaces can be configured as WAN-side interfaces.	Ethernet cable
LAN interfaces: GE combo interface	GE electrical interface: RJ45 GE optical port: LC/PC	A GE combo interface consists of an optical Ethernet interface and an electrical Ethernet interface on the panel. The two interfaces have only one internal forwarding interface. The electrical and optical interfaces are multiplexed, and only either of them can work at a time. When either of the Ethernet interfaces is working, the other interface is shut down. The GE electrical interface (10/100/1000 Mbit/s auto-sensing) transmits and receives services at 10 Mbit/s, 100 Mbit/s, or 1000 Mbit/s. The GE optical interface (100/1000 Mbit/s auto-sensing) transmits and receives services at 100 Mbit/s or 1000 Mbit/s. NOTE: By default, a combo interface works in auto mode and automatically works as an optical or electrical interface. GE8 is the BootROM management network port on a device and is used to upgrade the device software through the BootROM menu.	GE electrical port: Ethernet cable GE optical interface: optical module The following optical modules are supported: FE SFP&eSFP Optical Modules GE eSFP Optical Modules GPON&EPON Optical Modules (Available in V300R023C00 and Later Versions) GE SFP Copper Modules (Available in V300R023C00 and Later Versions)
WAN interfaces: two GE combo interfaces	GE electrical interface: RJ45 GE optical port: LC/PC	A GE combo interface consists of an optical Ethernet interface and an electrical Ethernet interface on the panel. The two interfaces have only one internal forwarding interface. The electrical and optical interfaces are multiplexed, and only either of them can work at a time. When either of the Ethernet interfaces is working, the other interface is shut down. The GE electrical interface (10/100/1000 Mbit/s auto-sensing) transmits and receives services at 10 Mbit/s, 100 Mbit/s, or 1000 Mbit/s. The GE optical interface (100/1000 Mbit/s auto-sensing) transmits and receives services at 100 Mbit/s or 1000 Mbit/s. NOTE: By default, a combo interface works in auto mode and automatically works as an optical or electrical interface.	GE electrical port: Ethernet cable GE optical interface: optical module The following optical modules are supported: FE SFP&eSFP Optical Modules GE eSFP Optical Modules GPON&EPON Optical Modules (Available in V300R023C00 and Later Versions) GE SFP Copper Modules (Available in V300R023C00 and Later Versions)
WAN interface: one 10GE optical interface	LC/PC	The 10GE optical interfaces (1/10 Gbit/s auto-sensing) can work in GE mode and can transmit and receive service traffic at 1 Gbit/s or 10 Gbit/s. Optical interface attributes: The optical interface attributes vary according to the optical module used. Standards compliance: IEEE 802.3ae	Optical module The following optical modules are supported: GE eSFP Optical Modules 10GE SFP+ Optical Modules GPON&EPON Optical Modules (Available in V300R023C00 and Later Versions) GE SFP Copper Modules (Available in V300R023C00 and Later Versions) 10GE SFP+ Copper Modules (Available in V300R023C10 and Later Versions)
USB 3.0 port (host)	USB 3.0 Type A	A USB 3.0 interface provides up to 5 Gbit/s upload and download rates. Standards compliance: USB 3.0 and USB 2.0 Working mode: Host	USB 2.0-compliant USB flash drive USB 3.0-compliant USB flash drive
USB interface 2.0 (host)	USB 2.0 Type A	A USB 2.0 interface provides up to 480 Mbit/s upload and download rates. Standards compliance: USB 2.0 Working mode: Host	USB 2.0-compliant USB flash drive

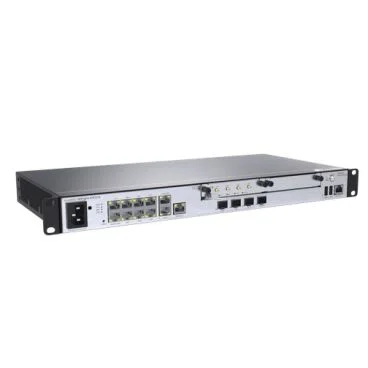

Huawei Enterprise AR6121E
Router empresarial de alto rendimiento con procesador multicore de 1.4 GHz y conmutación non-blocking

Forwarding 2 Gbps8 puertos GE LAN1 puerto 10GE SFP+2 ranuras SIC2 puertos USBRanuras combo GE

El Huawei AR6121E es la solución ideal para sedes y sucursales que requieren una conectividad robusta y escalable. Gracias a su arquitectura non-blocking y su capacidad de forwarding de 2 Gbps, garantiza un rendimiento óptimo para las operaciones diarias de tu empresa. Su diseño versátil permite configurar interfaces LAN como WAN, adaptándose perfectamente a las necesidades cambiantes de tu red.

Este router empresarial integra funciones clave como SD-WAN, enrutamiento avanzado y seguridad, facilitando la gestión centralizada de múltiples enlaces físicos. Con soporte para túneles VPN seguros y acceso híbrido, protege tus datos mientras optimiza el tráfico de aplicaciones. Ideal para conectar sucursales con la sede o permitir el acceso remoto a socios autorizados de forma rápida y fiable.

Especificaciones técnicas

Alimentación

Consumo máximo33 WModo de alimentaciónAC built-inNumber of power modules1Tensión de entrada100 V to 240 V, 50 Hz/60 HzRango de tensión de entrada90 V to 264 V, 47 Hz to 63 HzMaximum input current [A]2 AMaximum output power [W]70 WRedundant power supplyNo compatiblePoENo compatible

Dimensiones y montaje

Installation typeRack Work bench Against the wallDimensions without packaging (H x W x D) [mm(in.)]Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 220.4 mm (1.75 in. x 17.4 in. x 8.68 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 225.2 mm (1.75 in. x 17.4 in. x 8.87 in.)Dimensions with packaging (H x W x D) [mm(in.)]90 mm x 390 mm x 570 mm (3.54 in. x 15.35 in. x 22.44 in.)Weight with packaging [kg(lb)]4.6 kg (10.12 lb)Weight without packaging [kg(lb)]3.2 kg (7.04 lb)

Condiciones de uso

Noise at normal temperature (acoustic power) [dB(A)]52.3 dB(A)Temperatura de funcionamiento0°C to 45°C (32°F to 113°F)Temperatura de almacenamiento40°C to +70°C (-40°F to +158°F)Long-term operating relative humidity [RH]5% RH to 95% RH, non-condensingLong-term operating altitude [m(ft.)]< 5000 m (16404.2 ft.)

Sistema

Procesador1.4 GHz, 4 CoresMTBF30.05 years

General

NOTEWhen the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).ItemDetailsDescriptionAR6121E, 2*GE combo WAN, 1*10GE(SFP+) WAN, 8*GE LAN, 1*GE combo LAN, 2*USB, 2*SICPart Number02353TBHModelAR6121EFirst supported versionV300R019C13RemarksWhen configuring cards, ensure that the total power of the configured cards does not exceed 37 W or contact technical support engineers to obtain more suggestions.ItemSpecificationChassis height [U]1 URTCCompatibleType of fansIntegradoNumber of fan modules0Heat dissipation modeAir coolingAirflow directionLeft to rightNumber of service board slots2RPS inputNo compatibleMTTR [hours]2 hoursAvailability0.9999924012Console portRJ45Extended slots (standard configuration)2 x SIC
