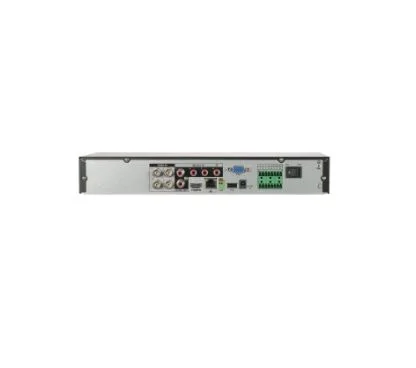

Dahua XVR7104HE-4K-I2
Grabadora de video híbrida 4K con procesador integrado y sistema operativo Linux
Entradas IP hasta 8 canalesEntradas analógicas hasta 4 canalesCompresión H.265+Reconocimiento facialDetección de movimientoAlmacenamiento SATA hasta 10 TB
Esta grabadora híbrida Dahua combina la máxima resolución 4K con una versatilidad de entradas sin precedentes. Soporta simultáneamente cámaras IP de hasta 8 megapíxeles y tecnologías analógicas como HDCVI, AHD, TVI y CVBS. Su procesador embebido optimiza el rendimiento para ofrecer un flujo de trabajo fluido en entornos de seguridad complejos.
Equipada con funciones avanzadas de inteligencia artificial, permite la clasificación de objetos y el reconocimiento facial para identificar extraños o buscar rostros específicos en la base de datos. La compresión eficiente H.265+ maximiza el espacio de almacenamiento, mientras que la interfaz HDMI de alta definición garantiza una visualización nítida de las imágenes capturadas.
Especificaciones técnicas
General
Performance2 channels, 10 IVS for each channelObject classificationHuman/Vehicle secondary recognition for tripwire and intrusionAI SearchSearch by target classification (Human, Vehicle)PerformanceMax 12 face pictures/sec processingStranger ModeDetect strangers' faces (not in device's face database). Similarity threshold can be set manually.AI SearchUp to 8 target face images search at same time, similarity threshold can be set for each target face image.Database ManagementUp to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries®ions and state can be added to each face picture.Database ApplicationEach database can be applied to video channels independently .Trigger EventsBuzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc.Performance4 channelsAnalog Camera Input4 channels, BNCHDCVI Camera Input4K, 6MP, 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fpsAHD Camera Input4K, 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fpsTVI Camera Input4K, 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fpsCVBS Camera InputPAL/NTSCIP Camera Input4+4 channels, each channel up to 8MPTwo-way TalkReuse audio in/out, RCARecord RateMain stream: 4K (1fps–15fps); 6MP/5MP(1fps–20fps); 4K-N/4MP/3MP/1080P/720P/960H/D1/CIF (1fps–25/30fps) Sub steram:960H(1fps–15fps); D1/CIF(1fps–25/30fps)Record ModeManual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, StopRecord Interval1 – 60 min (default: 60 min), Pre-record: 1 s–30 s, Post-record: 10 s–300 sMax. User Access128 usersSmart PhoneiPhone, iPad, AndroidTrigger EventsRecording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen TipsRelay Output3Playback1/4Search ModeTime /Date, Alarm, MD and Exact Search (accurate to second)Playback FunctionPlay, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital ZoomBackup ModeUSB Device/NetworkInternal HDD1 SATA Port, up to 10TB capacityeSATANo aplicaRS4851 Port, for PTZ ControlRS232No aplicaCondiciones de funcionamiento10°C to +55°C (+14°F to +131°F), 0–90% RHThird-party SupportDahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and moreMulti-screen DisplayWhen IP extension mode not enabled: 1/4 When IP extension mode enabled: 1/4/8/9Entrada de alarma8Storage Conditions20°C to +70°C (-4°F to +158°F) , 0–90% RH
Vídeo y audio
Audio In/Out4/1, RCACompresiónAI Coding/H.265+/H.265/H.264+/H.264Bit Rate32 Kbps–8192 Kbps Per ChannelCompresión de audioG.711A, G.711U, PCMAudio Sample Rate8 KHz, 16 bit Per ChannelTasa de bits de audio64 Kbps Per ChannelVideo DetectionMotion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
Red y protocolos
Interfaz1 HDMI ,1 VGAInterfaz1 RJ-45 Port (1000 MB)Network FunctionHTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)InteroperabilidadONVIF 16.12, CGI ConformantUSB2 USB Ports (1 USB 2.0 , 1 USB 3.0)
Dimensiones y montaje
DimensionesMini 1U, 325 mm × 257 mm × 55 mm (12.80'' × 10.11'' × 2.17'')Peso neto1.2 kg (2.6 lb)Peso bruto1.9 kg (4.2 lb)InstalaciónDesktop installation
Imagen y óptica
Resolución4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 1080P, 720P, 960H, D1, CIFResoluciónHDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720Menú en pantalla (OSD)Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Certificaciones
CertificationsFCC: Part 15 Subpart BCECE-LVD: EN 60950-1/IEC 60950-1CE-EMCEN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
Sistema
Main ProcessorEmbedded ProcessorSistema operativoEmbedded LINUX
Alimentación
AlimentaciónDC 12V/2AConsumo<10W
