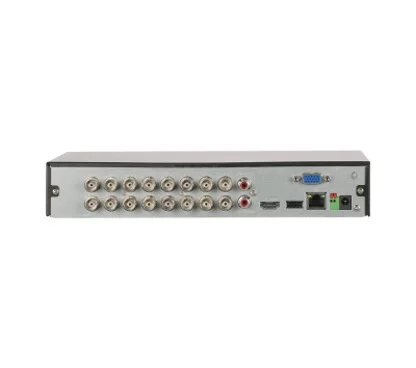

Dahua DH-XVR5116HS-I3/T
Grabador híbrido analógico-IP de sobremesa con 16 canales BNC 1080P y soporte para 8 cámaras IP hasta 5MP
Procesador industrialSistema Linux embebidoCompresión H.265+16 puertos BNCAncho de banda 128 MbpsFace Recognition
Este grabador híbrido de sobremesa integra tecnología de procesamiento industrial y sistema Linux para ofrecer un rendimiento fiable en entornos exigentes. Su arquitectura permite conectar hasta 16 cámaras analógicas con detección de movimiento y 8 canales IP, gestionando un ancho de banda total de 128 Mbps para asegurar una transmisión fluida y una grabación eficiente sin cuellos de botella.
Equipado con inteligencia artificial avanzada, el dispositivo destaca por sus capacidades de reconocimiento facial, protección perimetral y detección de intrusos en canales analógicos. Gracias a su compresión H.265+ y codificación inteligente, optimiza el almacenamiento y el uso de la red manteniendo la calidad de la imagen, ideal para instalaciones de seguridad profesionales que requieren análisis de vídeo detallado y gestión centralizada.
Especificaciones técnicas
General
Perimeter Performance AI by Recorder (Number of Channels)4 channels, 10 IVS rules for each channelFace Attributes6 attributesSMD Plus by Recorder16 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition changeSMD by Camera24 channelsScene Changing by Recorder1 channelIrregular Black Block Masking by Recorder1 channelAnalog Camera Input16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detectCamera Input1. CVI: 5 MP@25 fps; 5 MP@20 fps; 5 MP@10/12.5 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@50/60 fps; 720p@25/30fps. 2. TVI: 5 MP(2560 × 1944)@20 fps; 5 MP(2960 × 1665)@20/25 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps. 3. AHD: 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.IP Camera InputUp to 24 channels of IPC access 8 IP channels by default + 16 channels (analog channels are converted to IP channels) Incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps *After IP extension is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, Perimeter Protection and AcuPick cannot be used.Third-party Camera AccessPanasonic; Sony; Hanwha; Axis; Arecont; ONVIFMobile Phone AccessiOS; AndroidRecord ModeGeneral; alarm; motion detection; intelligentRecording Playback1/4/9/16 It changes to 1/4/9 split when Face or IVS&SMD or AcuPick is selected in AI Mode.Backup MethodUSB device and networkPlayback ModeInstant playback; general playback; event playback; tag playback; smart playbackTwo-way TalkCoaxial two-way talk: 16-channel BNC Local and network user two-way talk: Shares the same audio input with the first channelRS-4851HDMI1VGA1Multi-screen DisplayWhen IP extension mode not enabled: 1/4/8/9/16 When IP extension mode enabled: 1/4/8/9/16/25CertificationsCE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
Dimensiones y montaje
Peso neto1.00 kg (2.20 lb)Peso bruto1.58kg (3.48 lb)Dimensiones260.0 mm × 237.8 mm × 47.6 mm (10.24" × 9.36" × 1.87") (W × D × H)Packaging Dimensions344.0 mm × 89.0 mm × 287.0 mm (13.54" × 3.50" × 11.30") (W × D × H)InstalaciónDesktop
Sistema
Main ProcessorIndustrial-grade processorSistema operativoEmbedded Linux
Alimentación
Alimentación12 VDC, 2 AConsumo<12 W (without HDD)
Vídeo y audio
AI Video Quality Analytics by Recorder16 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white.Dual-streamSíTasa de bits de vídeo32 kbps–6144 kbpsAudio Sampling8 kHz, 16 bitTasa de bits de audio64 kbpsSalida de vídeo1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 It changes to 1920 × 1080, 1280 × 1024, 1280 × 720 when Face, IVS&SMD or AcuPick is selected in AI Mode.Compresión de vídeoAI Coding; Smart H.265+; H.265; Smart H.264+; H.264Compresión de audioG.711a; G.711u; PCMEntrada de audio1-channel RCA 16-channel BNC (Coaxial Audio)Salida de audio1-channel RCA
Red y protocolos
Operating InterfaceWeb; Local GUIProtocolos de redHTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)InteroperabilidadONVIF 24.12 (Profile T; Profile S; Profile G); CGI; SDKNavegadorChrome; IE; Safari; Edge; FirefoxDisk Interface1 SATA port, up to 16 TB. This limit varies depending on the environment temperature.USB2 (1 front USB 2.0 port, 1 rear USB 3.0 port)Puerto de red1 (10/100/1000 Mbps Ethernet port, RJ-45)
Detección y alarmas
Alarmas generalesMotion detection; alarm box; HDCVI alarm; camera external alarm; network alarm; PIR alarmAnomaly AlarmError (no disk; disk error; low space; low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offlineIntelligent AlarmFace detection; face recognition; perimeter protection; SMD PlusAcciones ante alarmaRecord; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email
Condiciones de uso
Temperatura de funcionamiento–10 °C to +55 °C (+14 °F to +131 °F)Temperatura de almacenamiento–20 °C to +60 °C (–4 °F to +140 °F)Humedad de funcionamiento10%–90% (RH), non-condensing
Almacenamiento
Face Database CapacityUp to 10 face databases with 10,000 images.Encoding CapacityEncode Enhancement disabled： Main stream: Channels 1-4 5M-N@(1 fps–25 fps), others 5M-N@(1 fps–12 fps); Channels 1-4 4M-N/1080p@(1 fps–30 fps), others 4M-N/1080p@(1 fps–15 fps); 1080N/720p/960H/D1/CIF@(1 fps–30 fps); Sub stream: D1/CIF@(1 fps–15 fps); Encode Enhancement enabled： Main stream: Channels 1-8 5M-N@(1 fps–20 fps), others 5M-N@(1 fps-12 fps); (4 channels can be transformed to 5MP@6 fps) Channels 1-8 4M-N/1080p@(1 fps–25 fps), others 4M-N/1080p@(1 fps–15 fps); 1080N/720p/960H/D1/CIF@(1 fps–30 fps); Sub stream: D1/CIF@(1 fps–15 fps); *When Encode Enhancement is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, Perimeter Protection and AcuPick cannot be used.
