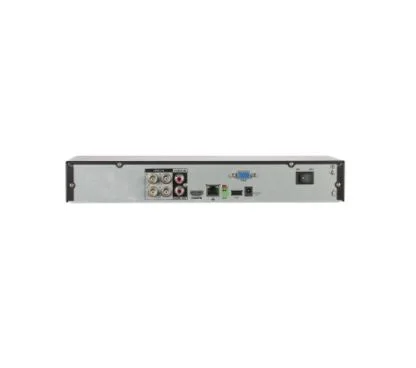

Dahua XVR5104H-I2
Grabadora híbrida 5 en 1 con procesador embebido para gestionar hasta 4 cámaras analógicas y 6 IP de 6MP
HDCVI/HDTVI/AHD/CVBS6MP IP CameraH.265+WizSenseReconocimiento Facial1U Mini
Esta grabadora Dahua combina la versatilidad de las entradas analógicas con la potencia de las cámaras IP de alta resolución. Su arquitectura híbrida permite integrar sistemas de seguridad existentes o expandirlos con tecnología moderna sin complicaciones técnicas.
Equipada con el sistema operativo LINUX embebido y el algoritmo WizSense, ofrece capacidades avanzadas de análisis de video. Detecta intrusiones, clasifica objetivos y reconoce rostros en tiempo real, enviando alertas inmediatas para una respuesta rápida ante cualquier incidente de seguridad.
Especificaciones técnicas
General
Performance2 channels, 10 IVS for each channelObject classificationHuman/Vehicle secondary recognition for tripwire and intrusionAI SearchSearch by target classification (Human, Vehicle)PerformanceMax 8 face pictures/sec processingStranger ModeDetect strangers' faces (not in device's face database). Similarity threshold can be set manually.AI SearchUp to 8 target face images search at same time, similarity threshold can be set for each target face image.Database ManagementUp to 10 face databases with 10,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries®ions and state can be added to each face picture.Database ApplicationEach database can be applied to video channels independently .Trigger EventsBuzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc.Performance4 channelsAnalog Camera Input4 channels, BNCHDCVI Camera Input5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fpsAHD Camera Input5MP, 4MP, 1080P@25/30, 720P@25/30fpsTVI Camera Input5MP, 4MP, 1080P@25/30, 720P@25/30fpsCVBS Camera InputPAL/NTSCIP Camera Input4+2 channels, each channel up to 6MPTwo-way TalkReuse audio in/out, RCARecord RateMain stream: All channel 5M-N (1fps–10fps); 4M-N/1080P (1fps–15fps); 1080N/720P/960H/ D1/CIF (1fps–25/30fps) Sub stream: D1/CIF (1fps–15fps)Record ModeManual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, StopRecord Interval1 – 60 min (default: 60 min), Pre-record: 1 s–30 s, Post-record: 10 s–300 sMax. User Access128 usersSmart PhoneiPhone, iPad, AndroidTrigger EventsRecording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen TipsRelay OutputNo aplicaPlayback1/4Search ModeTime /Date, Alarm, MD and Exact Search (accurate to second)Playback FunctionPlay, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital ZoomBackup ModeUSB Device/NetworkInternal HDD1 SATA Port, up to 6TB capacityeSATANo aplicaRS4851 Port, for PTZ ControlRS232No aplicaCondiciones de funcionamiento10°C to +55°C (+14°F to +131°F), 0–90% RHThird-party SupportDahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and moreMulti-screen DisplayWhen IP extension mode not enabled : 1/4 When IP extension mode enabled : 1/4/6Entrada de alarmaNo aplicaStorage Conditions20°C to +70°C (-4°F to +158°F) , 0–90% RH
Vídeo y audio
Audio In/Out1/1, RCACompresiónAI Coding/H.265+/H.265/H.264+/H.264Bit Rate32 Kbps–6144 Kbps Per ChannelCompresión de audioG.711A, G.711U, PCMAudio Sample Rate8 KHz, 16 bit Per ChannelTasa de bits de audio64 Kbps Per ChannelVideo DetectionMotion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
Red y protocolos
Interfaz1 HDMI ,1 VGAInterfaz1 RJ-45 Port (100 MB)Network FunctionHTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)InteroperabilidadONVIF 16.12, CGI ConformantUSB2 USB Ports (USB 2.0)
Dimensiones y montaje
DimensionesMini 1U, 325 mm × 257 mm × 55 mm (12.80'' × 10.10'' × 2.17'')Peso neto1.1 kg (2.5 lb)Peso bruto1.8 kg (4.0 lb)InstalaciónDesktop installation
Imagen y óptica
Resolución5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIFResolución1920 × 1080, 1280 × 1024, 1280 × 720Menú en pantalla (OSD)Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Certificaciones
CertificationsFCC: Part 15 Subpart BCECE-LVD: EN 60950-1/IEC 60950-1CE-EMCEN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
Sistema
Main ProcessorEmbedded ProcessorSistema operativoEmbedded LINUX
Alimentación
AlimentaciónDC 12V/1.5AConsumo<4W
