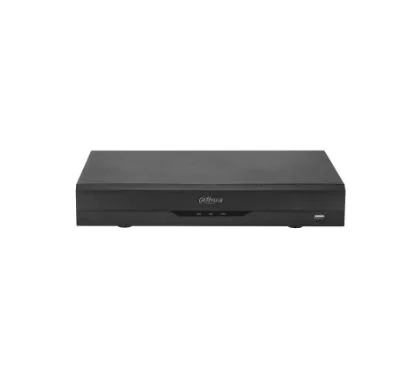

Dahua DH-XVR5104H-I3(V3.0)
Grabador de vídeo digital WizSense de 4 canales con entrada híbrida para cámaras analógicas e IP
Procesador industrialSistema Linux embebidoEntrada analógica 4 canalesEntrada IP hasta 6 canalesQuickPick 2.0 IASMD Plus analógico
Este grabador de vídeo Dahua combina potencia y versatilidad en un formato compacto de 1U. Gracias a su procesador industrial y sistema operativo Linux embebido, garantiza un funcionamiento estable en entornos exigentes. Soporta una mezcla de cámaras analógicas y IP, ofreciendo flexibilidad para actualizar tu sistema de seguridad sin necesidad de reemplazar toda la infraestructura existente.
Equipado con tecnologías de inteligencia artificial como QuickPick 2.0 y SMD Plus, el dispositivo filtra falsas alarmas causadas por hojas o lluvia, centrándose en personas y vehículos. Su compresión inteligente de vídeo reduce el uso de almacenamiento y ancho de banda, mientras que la detección facial y la protección perimetral permiten una vigilancia proactiva y detallada de las áreas más críticas.
Especificaciones técnicas
General
QuickPick 2.0 AI by Recorder (Number of Channels)1 channelPerimeter Performance AI by Recorder (Number of Channels)Advanced Mode: 2 channels, 10 IVS rules for each channel General Mode: 4 channels, 10 IVS rules for each channelFace Attributes6 attributesSMD Plus by Recorder4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition changeSMD Plus by Camera6 channelsScene Changing by Recorder1 channelIrregular Black Block Masking by Recorder1 channelAnalog Camera Input4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detectCamera Input1. CVI: 5 MP@25 fps; 5 MP@20 fps; 5 MP@10/12.5 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@50/60 fps; 720p@25/30fps. 2. TVI: 5 MP(2560 x 1944)@20 fps; 5 MP(2960 x 1665)@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps. 3. AHD: 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.IP Camera InputUp to 6 channels of IPC access 2 IP channels by default +4 channels (analog channels are converted to IP channels) incoming bandwidth: 32 Mbps, recording bandwidth: 32 Mbps and outgoing bandwidth: 32 Mbps *After IP extension is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, SMD, Perimeter Protection and QuickPick 2.0 cannot be used.Third-party Camera AccessPanasonic; Sony; Hanwha; Axis; Arecont; ONVIFMobile Phone AccessiOS; AndroidRecord ModeGeneral; alarm; motion detection; intelligent; POSRecording Playback1/4Backup MethodUSB device and networkPlayback ModeInstant playback; general playback; event playback; tag playback; smart playbackTwo-way TalkYes (share the same audio input with the first channel)RS-4851HDMI1VGA1The information below only applies to hardware version 3.0. of the product.Multi-screen DisplayWhen IP extension mode not enabled: 1/4 When IP extension mode enabled: 1/4/6CertificationsCE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
Dimensiones y montaje
Peso neto1.29 kg (2.84 lb)Peso bruto1.74 kg (3.84 lb)Dimensiones325.0 mm × 257.1 mm × 55.0 mm (12.80" × 10.12" × 2.17") (W × D × H)Packaging Dimensions372.0 mm × 117.0 mm × 308.0 mm (14.65" × 4.61" × 12.13") (W × D × H)InstalaciónDesktop
Condiciones de uso
Temperatura de funcionamiento–10 °C to +55 °C (+14 °F to +131 °F)Temperatura de almacenamiento–20 °C to +60 °C (–4 °F to +140 °F)Humedad de funcionamiento10%–90% (RH), non-condensing
Vídeo y audio
AI Video Quality Analytics by Recorder4 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and whiteDual-streamSíTasa de bits de vídeo32 kbps–6144 kbpsAudio Sampling8 kHz, 16 bitTasa de bits de audio64 kbpsSalida de vídeo1 HDMI, 1 VGA HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720Compresión de vídeoAI Coding; Smart H.265+; H.265; Smart H.264+; H.264Compresión de audioG.711a; G.711u; PCMEntrada de audio1-channel RCA 4-channel BNC (Coaxial Audio)Salida de audio1-channel RCA
Red y protocolos
Operating InterfaceWeb; Local GUIProtocolos de redHTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)InteroperabilidadONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDKNavegadorChrome; IE; Safari; Edge; FirefoxDisk Interface1 SATA port, up to 16 TB. This limit varies depending on the environment temperature.USB2 (1 front USB 2.0 port, 1 rear USB 2.0 port)Puerto de red1 (10/100 Mbps Ethernet port, RJ-45)
Detección y alarmas
Alarmas generalesMotion detection; alarm box; HDCVI alarm; camera external alarm; network alarm; PIR alarmAnomaly AlarmError (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offlineIntelligent AlarmFace detection; face recognition; perimeter protection; SMD PlusAcciones ante alarmaRecord; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email
Sistema
Main ProcessorIndustrial-grade processorSistema operativoEmbedded Linux
Almacenamiento
Face Database CapacityUp to 10 face databases with 10,000 images.Encoding CapacityEncode Enhancement disabled： Main stream: Channels 1-2 5M-N@(1 fps–25 fps), others 5M-N@(1 fps–12 fps); Channels 1-2 4M-N/1080p@(1 fps–30 fps), others 4M-N/1080p@(1 fps–15 fps); 1080N/720p/960H/D1/CIF@(1 fps–30 fps); Sub stream: D1/CIF@(1 fps–15 fps); Encode Enhancement enabled： Main stream: 4-ch 5M-N@(1 fps-25 fps);(4 channels can be transformed to 5MP@6 fps) 4-ch 4M-N/1080p@(1 fps–25 fps); 1080N/720p/960H/D1/CIF@(1 fps–30 fps); Sub stream: D1/CIF@(1 fps–15 fps); *When Encode Enhancement is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, Perimeter Protection and QuickPick 2.0 cannot be used.
Alimentación
Alimentación12 VDC, 1.5AConsumo<5 W(without HDD)
