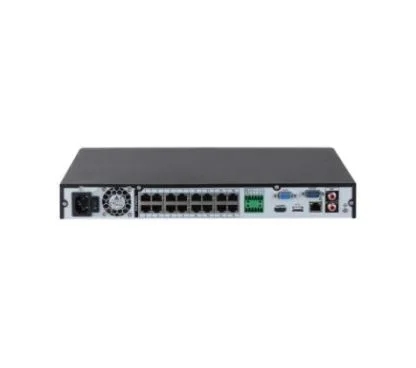

Dahua DHI-NVR2216-16P-I2
Grabador de vídeo de red inteligente con 16 puertos PoE, detección facial y protección de perímetro
16 puertos PoEProcesador industrialDetección facialReconocimiento facialProtección de perímetroSMD Plus
Este grabador de vídeo de red Dahua integra capacidades avanzadas de inteligencia artificial directamente en el dispositivo. Cuenta con 16 puertos PoE para alimentar hasta 16 cámaras IP y ofrece un rendimiento de decodificación de hasta 6 canales en 1080p. Su sistema operativo embebido Linux garantiza una gestión estable y eficiente de los flujos de vídeo.
La tecnología SMD Plus y las funciones de detección facial permiten filtrar falsas alarmas causadas por hojas o lluvia, protegiendo eficazmente el perímetro. Con soporte para múltiples bases de datos faciales y reconocimiento de atributos, este equipo es ideal para instalaciones de seguridad que requieren control de acceso y vigilancia perimetral inteligente.
Especificaciones técnicas
General
AI by CameraFace detection; face recognition; perimeter protection; SMD PlusAI by DeviceFace detection; face recognition; perimeter protection; SMD PlusPerimeter Performance AI by Device(Number of Channels)1Perimeter Performance of AI by Camera (Number of Channels)4Face Attributes6 attibutes: Gender; age group (6); glasses; expressions (8); mouth mask; beardSMD Plus by Device4SMD Plus by Camera6-channel SMD Plus (AI by camera): Detects tripwire and intrustion of human or vehicle; filters false alarms caused by leaves, raindrops and change of brightness awayAccess Channel16 channelsDecoding CapabilityAI disabled: 1-channel 12MP@30 fps; 1-channel 8MP@30 fps; 2-channel 5MP@30 fps; 3-channel 4MP@30 fps; 6-channel 1080p@30 fps AI enabled: 1-channel 8MP@30 fps; 1-channel 5MP@30 fps; 2-channel 4MP@30 fps; 4-channel 1080p@30 fpsThird Party Camera AccessOnvifMobile Phone AccessAndroid; iOSMulti-channel PlaybackUp to 16 channelsRecord ModeManual record; alarm recordings; motion detection recordings; scheduled recordingsBackupUSB devicePlayback Function1. Play; pause; stop; fast forward; fast backward; rewind; play by frame 2. Full screen; backup (vide clip/file); partially zom in; audio on/offHDD2 SATA ports, up to 10 TB. The maximum HDD capacity varies with environment temperatureHDMI1 (max. resolution: 4K)VGA1RCA Input1RCA Output1> Max. decoding capability6 × 1080p@30 fps. Supports adaptive decoding> AI by cameraFace detection and recognition, perimeter protection, and SMD PlusResolución12MP; 8MP; 5MP; 4MP; 3MP; 2MP; 720p; D1Multi-screen Display1, 4, 8, 9, 16 viewsCertificationsFCC:47 CFR FCC Part15,SubpartB,Class A CE-EMC:EN 55032:2015,Class A;EN IEC 61000-3-2:2019;EN 61000-3-3:2013+A1:2019;EN 55024:2010+A1:2015;EN 55035:2017;EN 50130-4:2011+A1:2014 CE-LVD:EN 62368-1:2014+A11:2017
Vídeo y audio
Salida de vídeo1 × VGA, 1 × HDMI (simultaneous)VideoSmart H.265+; H.265; Smart H.264+; H.264; MJPEGAudioPCM; G711A; G711U; G726
Sistema
Main ProcessorIndustrial-grade embedded processorSistema operativoEmbedded Linux
Red y protocolos
Operation InterfaceWeb; local GUINetwork BandwidthAI off: Access: 144 Mbps; Storage: 144 Mbps; Forward: 72 Mbps AI on: Access: 72 Mbps; Storage: 72 Mbps; Forward: 36 MbpsProtocolos de redHTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); P2P;Auto RegistrationInteroperabilidadONVIF (profile T; profile S; profile G); CGI; SDKNavegadorChrome; IE9 or later; FirefoxUSB1 × front USB2.0; 1 × back USB2.0Network1 × RJ-45, 10/100/1,000 Mbps
Detección y alarmas
Alarmas generalesMotion detection; privacy masking; video loss; PIR alarm; IPC alarmAnomaly AlarmCamera offline; storage error; disk full; IP conflict; MAC conflict; login lock; cyber security exceptionIntelligent AlarmFace detection; face recognition; perimeter protection (intrusion and tripwire); IVS; SMD PlusAcciones ante alarmaRecording; snapshot; buzzer; log; preset; email; tourEntrada de alarma4Salida de alarma2
Dimensiones y montaje
Peso neto2.63 kg (5.80 lb)Peso bruto3.91 kg (8.62 lb)Dimensiones375 mm × 329.3 mm × 53 mm (14.76" × 12.96" × 2.09") (W × L × H)Package Dimensions148 mm × 449 mm × 421 mm (5.83" × 17.68" × 16.57") (W × L × H)InstalaciónDesktop
Condiciones de uso
Temperatura de funcionamiento–10 °C to +55 °C (+14 °F to +131 °F)Temperatura de almacenamiento0 °C to 40 °C (32 °F to 104 °F)Humedad de funcionamiento10%–93%Humedad de almacenamiento30%–85%Operating Altitude3,000 m (9,842.52 ft)
Alimentación
PoE16 × PoE ports, 10/100 MbpsAlimentación100-240V, 47-63HZ, 3.5AConsumoTotal output of NVR is ≤ 10W (without HDD)Total output power of PoE is 130W, the maximum output power of a single port is 25.5W
Almacenamiento
Face Database CapacityUp to 10 face databases with 5,000 imagesAlmacenamientoLocal HDD and network
