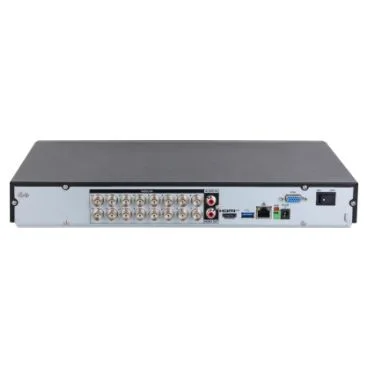

Dahua DH-XVR5216AN-4KL-I3/T
Grabador híbrido analógico-IP de sobremesa con procesador industrial y sistema operativo Linux
16 canales BNChasta 32 canales IPhasta 8 MPH.265+Ancho de banda 128 Mbps2 puertos SATA
Este grabador híbrido de sobremesa combina la flexibilidad de las cámaras analógicas con la potencia de las cámaras IP. Cuenta con un procesador industrial diseñado para entornos exigentes y soporta hasta 32 canales de entrada IP de alta resolución. Su capacidad de compresión inteligente optimiza el almacenamiento y el ancho de banda sin perder detalles.
Gracias a sus funciones de inteligencia artificial, este equipo ofrece detección de perimetro, reconocimiento facial y filtrado avanzado de falsas alarmas. La comunicación bidireccional por cable coaxial permite una interacción fluida entre las cámaras y el usuario. Ideal para instalaciones que requieren versatilidad y rendimiento superior en un formato compacto.
Especificaciones técnicas
General
AcuPick AI by Recorder (Number of Channels)8 channelsPerimeter Performance AI by Recorder (Number of Channels)8 channels, 10 IVS rules for each channelFace Attributes6 attributesSMD Plus by Recorder16 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition changeSMD by Camera32 channelsScene Changing by Recorder1 channelIrregular Black Block Masking by Recorder1 channelEPTZ by Recorder1 channelAnalog Camera Input16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detectCamera Input1. CVI: 4K@25/30 fps; [email protected]/15 fps; 6 MP@20 fps; 5 MP@25 fps; 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps; 720p@50/60 fps. 2. TVI: 4K@15 fps; 5 MP(2560 x 1944)@20 fps; 5 MP(2960 x 1665)@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps. 3. AHD: 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.IP Camera InputUp to 32 channels of IPC access 16 IP channels by default + 16 channels (analog channels are converted to IP channels) Incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps *After IP extension is enabled, EPTZ, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, Perimeter Protection, AcuPick and Privacy Protection cannot be used.Third-party Camera AccessPanasonic; Sony; Hanwha; Axis; Arecont; ONVIFMobile Phone AccessiOS; AndroidRecord ModeGeneral; alarm; motion detection; intelligent; POSRecording Playback1/4/9/16Backup MethodUSB device and networkPlayback ModeInstant playback; general playback; event playback; tag playback; smart playbackDisk GroupSíTwo-way TalkCoaxial two-way talk: 16-channel BNC Local and network user two-way talk: Shares the same audio input with the first channelRS-4851HDMI1VGA1Multi-screen DisplayWhen IP extension mode not enabled: 1/4/8/9/16 When IP extension mode enabled: 1/4/8/9/16/25/36CertificationsCE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
Dimensiones y montaje
Peso neto1.75 kg (3.86 lb)Peso bruto2.90 kg (6.39 lb)Dimensiones375.0 mm × 289.6 mm × 53.0 mm (14.76" × 11.40" × 2.09") (W × D × H)Packaging Dimensions427.0 mm × 137.0 mm × 356.0 mm (16.81" × 5.39" × 14.02") (W × D × H)InstalaciónDesktop
Sistema
Main ProcessorIndustrial-grade processorSistema operativoEmbedded Linux
Alimentación
Alimentación12 VDC, 5 AConsumo< 15 W (without HDD)
Vídeo y audio
AI Video Quality Analytics by Recorder16 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white.Dual-streamSíTasa de bits de vídeo32 kbps–6144 kbpsAudio Sampling8 kHz, 16 bitTasa de bits de audio64 kbpsSalida de vídeo1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable.Compresión de vídeoAI Coding; Smart H.265+; H.265; Smart H.264+; H.264Compresión de audioG.711a; G.711u; PCMEntrada de audio1-channel RCA 16-channel BNC (Coaxial Audio)Salida de audio1-channel RCA
Red y protocolos
Operating InterfaceWeb; Local GUIProtocolos de redHTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)InteroperabilidadONVIF 25.06 (Profile T; Profile S; Profile G); CGI; SDKNavegadorChrome; IE; Safari; Edge; FirefoxDisk Interface2 SATA ports. Each disk can contain up to 16 TB. This limit varies depending on the environment temperature.USB2 (1 front USB 2.0 port, 1 rear USB 3.0 port)Puerto de red1 (10/100/1000 Mbps Ethernet port, RJ-45)
Detección y alarmas
Alarmas generalesMotion detection; alarm box; HDCVI alarm; camera external alarm; network alarm; PIR alarmAnomaly AlarmError (no disk; disk error; low space; low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offlineIntelligent AlarmFace detection; face recognition; perimeter protection; SMD PlusAcciones ante alarmaRecord; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email
Condiciones de uso
Temperatura de funcionamiento–10 °C to +55 °C (+14 °F to +131 °F)Temperatura de almacenamiento–20 °C to +60 °C (–4 °F to +140 °F)Humedad de funcionamiento10%–90% (RH), non-condensing
Almacenamiento
Face Database CapacityUp to 10 face databases with 20,000 images.Encoding CapacityEncode Enhancement disabled: Main stream: the 1st, 9th channel 4K@(1 fps–15 fps), others 4K@(1 fps–7 fps); the 1st, 9th channel 6 MP@(1 fps–20 fps), others 6 MP@(1 fps–10 fps); the 1st, 9th channel 5 MP@(1 fps–25 fps), others 5 MP@(1 fps–12 fps); the 1st, 9th channel 4 MP/3 MP@(1 fps–25/30 fps), 4 MP/3 MP@(1 fps–15 fps); 4K@(1 fps–8 fps); 4K-N/5 MP@(1 fps-15 fps);4M-N/1080p/720p/960H/D1/CIF@(1 fps–25/30 fps) Sub stream: 960H@(1 fps–15 fps); D1/CIF@(1 fps–25/30 fps) Encode Enhancement enabled: Main stream: the 1st, 5th, 9th, 13th channel 4K@(1 fps–15 fps), others 4K@(1 fps–7 fps); the 1st, 5th, 9th, 13th channel 6 MP@(1 fps–20 fps), others 6 MP@(1 fps–10 fps); the 1st, 5th, 9th, 13th channel 5 MP@(1 fps–25 fps), others 5 MP@(1 fps–12 fps); the 1st, 5th, 9th, 13th channel 4 MP/3 MP@(1 fps–25/30 fps), 4 MP/3 MP@(1 fps–15 fps); 4K/6 MP@(1 fps–10 fps); 4K-N/5 MP@(1 fps-15 fps); 1080p/720p/960H/D1/CIF@(1 fps–25/30 fps) Sub stream: 960H@(1 fps–15 fps); D1/CIF@(1 fps–25/30 fps) *When Encode Enhancement is enabled, EPTZ, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, Perimeter Protection, AcuPick and Privacy Protection cannot be used.
