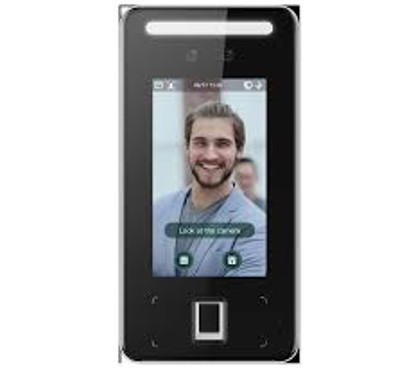

Dahua DHI-ASI6214J-MFW
Terminal de control de accesos Dahua con detección facial y pantalla táctil de 4,3 pulgadas
Detección facialLectura de huellasLectura de tarjetasContraseñaProtocolo OSDPIP65
Este dispositivo integra una cámara de 2 MP y un procesador embebido para gestionar accesos mediante rostro, huella dactilar, tarjeta o contraseña. Su pantalla táctil de 4,3 pulgadas permite una configuración intuitiva y una supervisión en tiempo real, ideal para entradas y salidas de oficinas o edificios.
Con una precisión de verificación facial del 99,50% y una capacidad de almacenamiento de 6000 registros, garantiza una seguridad robusta sin depender de una conexión constante a internet. Su carcasa metálica y certificación IP65 lo hacen resistente a las condiciones ambientales, funcionando correctamente en interiores y exteriores.
Especificaciones técnicas
ASI6214J-MFW
Main ProcessorEmbedded ProcessorInternet ProtocolIPv4; RTSP; RTP; TCP; UDP; P2POSDP ProtocolSupportInteroperabilidadCGISDKSupportDisplay4.3 inch TFT screenScreen TypeCapacitive touch screenScreen Resolution480 × 272Camera2 MP CMOS high definition cameraRango dinámico amplio (WDR)DWDRLight CompensationAuto white light Auto IR lightVoice PromptSupportCarcasaPC Metal rear caseUnlock ModeCard/Password/Fingerprint/Face unlock and unlock through their combinationsCard Reading TypeIC cardPeriod List128Holiday Period128First-Card UnlockSupportRemote VerificationSupportPeripheral Card Reader1 RS-485 1 WiegandMultiple User UnlockSupportReal-Time SurveillanceSupportWeb ConfigurationSupportFace Recognition Height0.9 m–2.4 mFace Recognition Distance0.3 m–1.5 mFace Verification Accuracy99.50%Fingerprint Sensor TypeCapacitiveFingerprint Verification Mode1:NFingerprint Comparison Time1.0 sFingerprint Recognition Time0.5 sUser Capacity6,000Face Image Capacity6,000Fingerprint Capacity6,000Card Capacity6,000Password Capacity6,000Record Capacity150,000RS-4851Wiegand1USB1 × USB2.0 portNetwork1 × RJ-45, 10/100 Mbps self-adaptionEntrada de alarma1Acciones ante alarmaSupportExit Button1Door Status Detection1Lock Control1Anti-PassbackSupportTamperSupportDuressSupportDoor Sensor TimeoutSupportIntrusionSupportIllegal Card Exceeding ThresholdSupportDuress FingerprintSupport
General
Modo de alimentación12V DC; 2AProtection GradeIP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick startguide.)Consumo≤ 24WDimensiones174.0 mm × 87.5 mm × 22.5 mm (6.85" × 3.44" × 0.88" ) (H × W × D)Temperatura de funcionamiento–30°C to 60°C (–22°F to 140°F)Humedad de funcionamiento5%RH–95%RH (non-condensing)Working EnvironmentIndoor OutdoorPeso bruto0.78 kg (1.72 lb)AccessoryBracket (provided)Installation MethodSurface mountCertificacionesCE FCC
Características
FACT Access Control Terminal4.3-inch LCD touch screen; resolution 480 × 2722MP wide-angle dual lens camera; support DWDR, white light fill light and IR fill lightSupport face, card, password ,fingerprint unlock and unlock through their combinations; support unlock by periodUser data can be stored at the access controller; can hold 6000 face images and work without networkFace-camera distance0.3 m-1.5 mFace verification accuracy99.5%; face comparison speed 0.3s per person; low false recognition rate; support liveness detection
