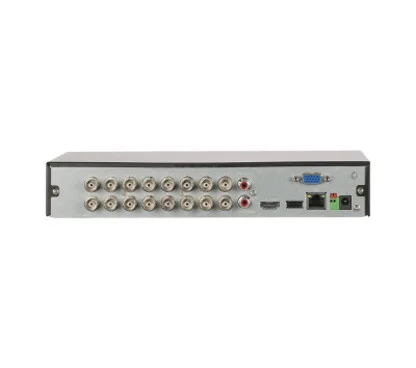

Dahua DH-XVR5116HS-I3
Grabador híbrido de sobremesa con 16 canales analógicos y 8 canales IP, capaz de gestionar hasta 6 megapíxeles por cámara y soporte para disco duro de hasta 16 terabytes
16 canales BNC8 canales IPH.265+WizSenseReconocimiento facialSMD PlusPerimeter ProtectionAncho de banda 128 Mbps
Este grabador híbrido compacto de 1U combina la versatilidad de las cámaras analógicas con la potencia de la tecnología IP. Gracias a su procesador integrado y sistema Linux, ofrece un rendimiento superior para la gestión de video de alta definición, permitiendo la compresión eficiente H.265+ y la transmisión de múltiples flujos de video simultáneamente.
Equipado con las funciones avanzadas de IA WizSense, este dispositivo no solo graba, sino que analiza el video en tiempo real. Detecta rostros, identifica perfiles y protege perímetros con precisión, reduciendo las alarmas falsas causadas por condiciones ambientales. Ideal para instalaciones que requieren seguridad inteligente y gestión centralizada de múltiples cámaras en un solo equipo.
Especificaciones técnicas
General
Perimeter Performance AI by Recorder (Number of Channels)Advanced Model: 2 channel, 10 IVS for each channel General Model: 4 channels, 10 IVS for each channelFace Attributes6 attributes: Gender, age groups (6), glasses, expressions (8), face mask, beard, with up to four detection panels displayed at the same time.SMD Plus by RecorderFull-channel SMD Plus (AI by recorder), secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition changeAnalog Camera Input16 channels, BNC: adaptive access by default; HDCVI, AHD, TVI and CVBS access can be configured.Camera Input1. CVI: 5MP, 4MP, 1080p@25/30 fps, 720p@50/60 fps, 720p@25/30 fps. 2. TVI: 5MP, 4MP, 1080p@25/30, 720p@25/30 fps. 3. AHD: 5MP, 4MP, 1080p@25/30, 720p@25/30 fps.IP Camera Input16+8 channels, each channel up to 6MPThird-party Camera AccessOnvif, RTSP, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung;Mobile Phone AccessiPhone, iPad, AndroidRecord ModeManual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, StopRecording Playback1/4/9/16 It changes to 1/4/9 split when Face or IVS&SMD is selected in AI Mode.Backup MethodUSB Device/NetworkPlayback ModeInstant playback, general playback, event playback, tag playback, smart playback (face and motion detection)Two-way TalkYes (share the same audio input with the first channel)RS-4851 Port, for PTZ ControlHDMI1VGA1Multi-screen DisplayWhen IP extension mode not enabled: 1/4/8/9/16 When IP extension mode enabled: 1/4/8/9/16/25CertificationsCE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B
Dimensiones y montaje
Peso neto1.17 kg (2.58 lb)Peso bruto1.57 kg (3.46 lb)DimensionesCompact 1U, 260.0 mm × 237.4 mm × 47.6 mm (W × D × H) 10.24" × 9.35" × 1.87" (W × D × H)Packaging Dimensions333.0 mm × 89.0 mm × 315.0 mm (L × W × H) 13.11" × 3.50" × 12.40" (L× W × H)InstalaciónDesktop
Almacenamiento
Face Database CapacityUp to 10 face databases and 10,000 pictures.Encoding CapacityAll channel 5M-N (1 fps–10 fps); 4M-N/1080p (1 fps–15fps); 1080N/720p/960H/D1/CIF (1fps–25/30 fps)
Vídeo y audio
Dual-streamSupported (D1/CIF (1 fps–15 fps)).Fotogramas por segundoPAL: 1 fps–25 fps. NTSC: 1 fps–30 fps.Tasa de bits de vídeo32 Kbps–6144 Kbps Per ChannelAudio Sampling8 KHz, 16 bit Per ChannelTasa de bits de audio64 Kbps Per ChannelBit Rate TypeVideo stream and composite stream.Salida de vídeo1 HDMI ,1 VGA VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 It changes to 1920 × 1080, 1280 × 1024, 1280 × 720 when Face or IVS&SMD is selected in AI Mode.Compresión de vídeoAI Coding/H.265+/H.265/H.264+/H.264Compresión de audioG.711A/G.711u/PCMEntrada de audio1, RCA (external) 16, BNC (coaxial)Salida de audio1, RCA
Red y protocolos
Protocolos de redHTTP, HTTPS, TCP / IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2PInteroperabilidadONVIF 16.12, CGI ConformantNavegadorChrome, IE9 or above, FirefoxNetwork ModeSingle-address modeHDD Interface1 SATA Port, up to 16TB for a single HDD, the maximum HDD capacity varies with environment temperatureUSB2 USB Ports (1 USB 2.0 , 1 USB 3.0)Puerto de red1 (10/100/1000 Mbps Ethernet port, RJ-45)
Detección y alarmas
Alarmas generalesMotion detection, Video Loss, tamperingAnomaly AlarmNo disk, disk error, low space, offline, ip conflict, MAC conflictIntelligent AlarmFace detection, face recognition, perimeter protectionAcciones ante alarmaRecord, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email
Sistema
Main ProcessorEmbedded processorSistema operativoEmbedded Linux
Alimentación
AlimentaciónDC12V, 2AConsumoLower than 12 W
Condiciones de uso
Temperatura de funcionamiento–10 °C to +55 °C (+14 °F to +131 °F)Humedad de funcionamiento10%–90%
