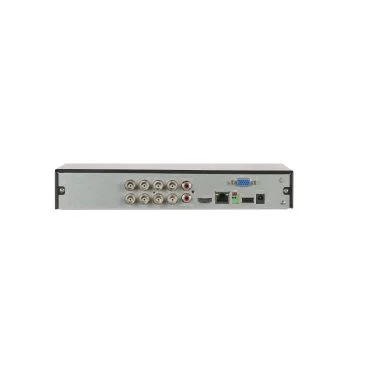

Dahua DH-XVR4108HS-I/T
Grabador híbrido analógico-IP de sobremesa para 8 canales BNC y 2 IP
8 canales BNC2 canales IPH.265+SMD PlusDoble víaONVIF
Este grabador híbrido de sobremesa combina la versatilidad de las cámaras analógicas con la potencia de las cámaras IP. Dispone de 8 entradas BNC con detección automática de formatos y hasta 2 canales IP nativos, permitiendo una expansión flexible hasta 10 cámaras IP. Su procesador industrial garantiza un rendimiento estable en entornos exigentes.
Optimiza el almacenamiento y el ancho de banda gracias a la compresión inteligente H.265+ y el codificador AI Coding, que reducen el ruido de fondo sin perder detalles. Cuenta con detección avanzada SMD Plus para filtrar falsas alarmas y comunicación bidireccional por coaxial, ideal para sistemas de seguridad profesionales y escalables.
Especificaciones técnicas
Vídeo y audio
Dual-streamSíTasa de bits de vídeo32 kbps–4096 kbpsAudio Sampling8 kHz, 16 bitTasa de bits de audio64 kbpsSalida de vídeo1 HDMI, 1 VGA HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720Compresión de vídeoAI Coding; Smart H.265+; H.265; Smart H.264+; H.264Compresión de audioG.711a; G.711u; PCMEntrada de audio1-channel RCA 8-channel BNC (Coaxial Audio)Salida de audio1-channel RCA
Red y protocolos
Operating InterfaceWeb; Local GUIProtocolos de redHTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)InteroperabilidadONVIF 24.12 (Profile T; Profile S; Profile G); CGI; SDKNavegadorChrome; IE; Safari; Edge; FirefoxDisk Interface1 SATA port, up to 16 TB. This limit varies depending on the environment temperature.USB2 (1 front USB 2.0 port, 1 rear USB 2.0 port)Puerto de red1 (10/100 Mbps Ethernet port, RJ-45)
Dimensiones y montaje
Peso neto0.92 kg (2.03 lb)Peso bruto1.49 kg (3.28 lb)Dimensiones260.0 mm × 237.8 mm × 47.6 mm (10.24" × 9.36" × 1.87") (W × D × H)Packaging Dimensions344.0 mm × 89.0 mm × 287.0 mm (13.54" × 3.50" × 11.30") (W × D × H)InstalaciónDesktop
Condiciones de uso
Temperatura de funcionamiento–10 °C to +55 °C (+14 °F to +131 °F)Temperatura de almacenamiento–20 °C to +60 °C (–4 °F to +140 °F)Humedad de funcionamiento10%–90% (RH), non-condensing
Sistema
Main ProcessorIndustrial-grade processorSistema operativoEmbedded Linux
Alimentación
Alimentación12 VDC, 1.5 AConsumo<7 W (without HDD)
General
SMD Plus by Recorder8 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition changeSMD by Camera10 channelsIrregular Black Block Masking by Recorder1 channelAnalog Camera Input8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detectCamera Input1. CVI: 1080p@25/30 fps; 720p@25/30 fps. 2. TVI: 1080p@25/30 fps; 720p@25/30 fps. 3. AHD: 1080p@25/30 fps; 720p@25/30 fps.IP Camera InputUp to 10 channels of IPC access 2 IP channel by default + 8 channels (analog channels are converted to IP channels) Incoming bandwidth: 32 Mbps, recording bandwidth: 32 Mbps and outgoing bandwidth: 32 MbpsThird-party Camera AccessPanasonic; Sony; Hanwha; Axis; Arecont; ONVIFMobile Phone AccessiOS; AndroidRecord ModeGeneral; alarm; motion detectionRecording Playback1/4/9Backup MethodUSB device and networkPlayback ModeInstant playback; general playback; event playback; tag playback; smart playbackTwo-way TalkCoaxial two-way talk: 8-channel BNC Local and network user two-way talk: Shares the same audio input with the first channelRS-4851HDMI1VGA1Dolynk cloud version: DMSS 2.0.30 and above, Dolynk Care 2.50.20 and above.Encoding CapacityMain stream: the 1st channel 1080N/720p@(1 fps–25/30 fps), others 1080N/720p@(1 fps–15 fps); 960H/D1/CIF@(1 fps–25/30 fps) Sub stream: CIF@(1 fps–7 fps)Multi-screen DisplayWhen IP extension mode not enabled: 1/4/8/9 When IP extension mode enabled: 1/4/8/9/16CertificationsCE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
Detección y alarmas
Alarmas generalesMotion detection; alarm box; HDCVI alarm; camera external alarm; network alarm; PIR alarmAnomaly AlarmError (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offlineIntelligent AlarmSMD PlusAcciones ante alarmaRecord; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email
