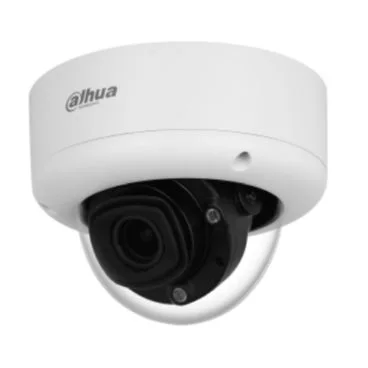

Dahua DH-IPC-HDBW7842E1P-Z-0832-DC12AC24V-X
Cámara IP de 8 MP con sensor CMOS de 1/1.8 pulgadas y sensor infrarrojo para visión nocturna hasta 40 metros
8 MP1/1.8" CMOSP-IrisSmart H.265+Face RecognitionANPRPeople CountingPPE Detection
Esta cámara de vigilancia inteligente de Dahua ofrece una resolución de 8 megapíxeles y un sensor de baja luminosidad ideal para entornos con poca luz. Cuenta con un sistema de iluminación infrarroja que alcanza hasta 40 metros, permitiendo capturar imágenes claras en la oscuridad total. Su lente vari-focal motorizada y el control P-Iris aseguran un enfoque preciso y un campo de visión ajustable para cubrir diferentes ángulos de seguridad.
Equipada con algoritmos de aprendizaje profundo, gestiona funciones avanzadas como reconocimiento facial, detección de matrículas ANPR y control de aforos mediante people counting. Además, permite la detección de EPP (equipo de protección personal) y protección de perímetro. Su compresión Smart H.265+ optimiza el ancho de banda y el almacenamiento, mientras que las múltiples funciones de detección de anomalías garantizan una seguridad perimetral robusta y eficiente.
Especificaciones técnicas
General
IVSAbandoned object; missing objectEPTZSíIVS (Perimeter Protection)Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection;privacy protectionFace RecognitionThere are two modes: General mode and counting mode. General mode: Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face or one inch photo; snapshot strategies (recognition priority and optimization snapshot); face angle filter; optimization time setting; privacy protection. Supports adding 5 group face databases; registering person one by one or in batches; setting face similarity; and supports face comparison with the face database containing up to 200,000 face pictures. Counting mode: Offers advanced customer counter, filters out specified faces from the face database, and exports reports both before and after removing duplicate faces.People CountingTripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management, generating and exporting report (day/week/month); 4 rules can be set for tripwire people counting, people counting in area and queue management; privacy protectionHeat MapSíANPRANPR: ANPR, track, priority, snapshot. Vehicle attributes: License plate, vehicle type, vehicle color. Other attributes: Seat belt, smoking, calling. Suppor up to 10,000 blocklist records and 10,000 allowlist records. The camera can recognize plate numbers of vehicles moving at speeds of up to 60km/h.Parking Space ManagementParking Space Management: Manage outdoor and planned parking lots; manage parking spaces in multiple areas; display the total number of parking spaces and parking spaces that are available; trigger alarms based on a predefined number of vehicles.Smart SearchWork together with Smart NVR to perform refine intelligent search, event extraction and merging to event videosScene Self-adaptation (SSA)SíLDCSíUser/Host20 (Total bandwidth: 340 M)Cyber SecurityConfiguration encryption;Trusted execution;Digest;Security logs;WSSE;Account lockout;syslog;Video encryption;802.1x;IP/MAC filtering;HTTPS;Trusted upgrade;Trusted boot;Firmware encryption;Generation and importing of X.509 certificationRS-4851 (baud rate range:1200 bps–115200 bps)Analog Output1 channel (CVBS output: BNC)Software de gestiónSmartPSS Lite; DSS; DMSSCertificationsCE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Vídeo y audio
Video MetadataMotor vehicle, non-motor vehicle, face, and human body detection; snapshot; snapshot optimization; optimal face snapshot upload.Motor vehicle attributes: License plate, vehicle type, vehicle color, vehicle logo, seatbelt, smoking, and calling.Generates flow statistics for people, motor vehicles and non-motor vehicles based on the direction, and exports reports.Non-motor vehicle attributes: Type, vehicle color, number of people, top type and color, and hat.Human body attributes: Top and bottom type and color, bag, hat, gender and umbrella.privacy protectionCompresión de vídeoH.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)Smart CodecSmart H.265+; Smart H.264+Fotogramas por segundoDefault: Main Stream: 3840 × 2160@(1–25/30 fps) Sub stream: 1920×1080@(1–25/30 fps) Third stream: 1920 × 1080@(1–25/30 fps) Fourth stream: 1920 × 1080@(1–25/30 fps) Fifth stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) High Frame Rate: Main Stream: 3840 × 2160@(1–50/60 fps) Sub stream: 1920×1080@(1–25/30 fps)Stream Capability5 streamsControl de tasa de bitsCBR/VBRTasa de bits de vídeoH.264: 32 kbps–16384 kbps; H.264: 12 kbps–12800 kbpsMicrófono integradoDual MICsBuilt-in SpeakerSíCompresión de audioG.711a; G.711Mu; PCM; G.726; G.723Entrada de audio1 channel (RCA port)Salida de audio1 channel (RCA port)
Dimensiones y montaje
Ajuste de ánguloPan: 0-355° Tilt: 0-90° Rotation: 0-355°Casing MaterialMetal + plasticDimensiones118.0 mm × Φ159.0 mm (4.65" × Φ6.26")Peso neto1.16 kg (2.56 lb)Peso bruto1.36 kg (3.00 lb)
Condiciones de uso
Temperatura de funcionamiento–40 °C to +65 °C (–40 °F to +149 °F)Humedad de funcionamiento≤95%Temperatura de almacenamiento–40 °C to +65 °C (–40 °F to +149 °F)Humedad de almacenamiento10–95%Grado de protecciónIP67, IK10, Anti-Corrosion Protection (optional)
Imagen y óptica
Sensor de imagen1/1.8" CMOSResolución máxima3840 (H) × 2160 (V)Sistema de exploraciónProgressiveObturador electrónicoAuto/Manual 1/3 s–1/100,000 sIluminación mínima0.0006 [email protected] (Color, 30 IRE) 0.0003 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on)Relación señal/ruido>56 dBDistancia de iluminaciónUp to 40 m (131.23 ft) (IR)Control de iluminadoresAutoNúmero de iluminadores3 (IR LED)Tipo de objetivoMotorized vari-focalMontura del objetivoφ16Distancia focal2.7 mm–12 mmApertura máximaF1.2Ángulo de visiónH: 105°–48°; V: 55°–27°; D: 124°–55°Control de irisAutoIris Control TypeP-IrisDistancia mínima de enfoque1.8 m (5.91 ft)Resolución8M (3840 × 2160); 6M (3072 × 2048); 5M (3072×1728); 5M (2592 × 1944); 4M (2688 × 1520); 3M (2048 × 1536); 3M (2304 × 1296) 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)Día y nocheAuto(ICR)/Color/B/WCompensación de contraluz (BLC)SíAtenuación de luces intensas (HLC)SíRango dinámico amplio (WDR)120 dBBalance de blancosAuto; natural; street lamp; outdoor; manual; regional customControl de gananciaAutoReducción de ruido3D NRRegion of Interest (RoI)Yes (4 areas)Image StabilizationElectronic Image Stabilization (EIS)Smart IlluminationSíAntinieblaSíImage Rotation0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)EspejoSíMáscara de privacidad8 areas
Red y protocolos
Puerto de redRJ-45 (10/100/1000 Base-T)SDK and APISíProtocolos de redIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2PInteroperabilidadONVIF (Profile S/Profile G/Profile T); CGI; P2PNavegadorIE: IE11 and later; Chrome: Chrome 88.0.4324.190 and later; Firefox: Firefox 47.0.2 and laterMobile ClientiOS; Android
Detección y alarmas
Face DetectionFace detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face or one inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting; privacy protectionPPE DetectionTriggers alarms when the detected object matches or does not match all of the configured attributes (workwear,hat,face mask,apron,gloves,shoe covers,boots,seatbelt,safety vest); privacy protectionDetección de movimientoOFF/ON (4 areas, rectangular)Alarm EventNo SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; parking space management; scene changing; audio detection; defocus detection; external alarm; face detection; face recognition; video metadata; ANPR; people counting in area; stay alarm; people counting; people number error detection; people stay detection; security exception; PPE detectionEntrada de alarma3 channels in: wet contact, 5mA 3V–5V DCSalida de alarma2 channels out: dry contact, 1,000mA 30V DC/500mA 50V AC
Almacenamiento
Memoria ROM8 GBMemoria RAM4 GBAlmacenamientoFTP;SFTP; Micro SD card (support max. 512 GB); NAS
Alimentación
Power Output12 VDC power output, max. current 165 mA, peak current 700 mAAlimentación12 VDC/24 VAC/PoE+ (802.3at)/ePoEConsumoBasic: 6.6 W (12 VDC); 9.3 W (24 VAC); 9.8 W (PoE) Max. (ICR switch + IR intensity): 18.7 W (12 VDC); 24.8 W (24 VAC); 25.2 W (PoE) Heating: 3 W (12 VDC); 4.6 W (24 VAC); 5.47 W (PoE)
