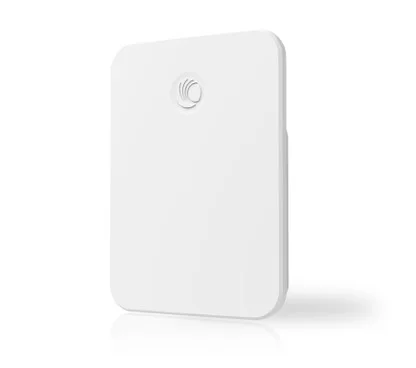

Cambium C050910A233A ePMP 5 GHz MP 3000 MicroPOP Radio (EU) (EU cord)

Cambium C050910A233A Radio exterior de 5 GHz con antena omnidireccional integrada para ampliar la cobertura de redes Wi-Fi 2x2 MIMO 600 Mbps PoE 802.3at IP55 AES 128 bit cnMaestro El MicroPOP MP 3000 utiliza tecnología 802.11ac Wave 2 para ofrecer capacidades de hasta 600 Mbps con soporte de 256QAM. Gracias a su diseño compacto y robusto, es ideal para despliegues en lugares inalcanzables por la torre principal o para añadir cobertura adyacente a nuevos suscriptores con menor densidad de usuarios. Esta radio soporta hasta 64 módulos de suscriptores de la serie ePMP Force 300 y garantiza una gestión de red flexible mediante cnMaestro, ya sea en la nube o en el propio local. Su carcasa resistente y su rango de temperatura de 30 a 55 grados Celsius aseguran un funcionamiento fiable en exteriores durante todo el año. Especificaciones técnicas Inalámbrico Frequency Range 5150 - 5970 MHz (exact frequencies as allowed by local regulations) Nominal Receive Sensitivity (w/FEC) @20MHz Channel MCSO = -93 dBm to MCS15 = -69 dBm (per branch) Nominal Receive Sensitivity (w/FEC) @40MHz Channel MCSO = -90 dBm to MCS15 = -66 dBm (per branch) Sector Antenna ePMP Sector Antenna (C050900D021A) available ePMP 2000 Smart Antenna ePMP 2000 Smart Antenna (C050900D020A) available (complimentary does not replace Sector Antenna) Sector Antenna Connection 2 x 50 ohm, RP (reverse polarity) SMA Beamforming Antenna Connection 2 x 50 ohm, RP (reverse polarity) SMA, DC coupled (powering antenna) GPS Antenna Connection 1 x 50 ohm, RP (reverse polarity) SMA Backhaul for Outdoor Wi-Fi Access Points: deploy the MP 3000 and ePMP Subscriber modules to create a hub-and-spoke backhaul for multiple wi-fi access points. 256QAM-5/6, 80 MHz support Supports a wide frequency range 4910 to 5950 MHz Alimentación Powering Methods Supported 56 V PoE (included), standard 802.3at PoE Supply, or CMM4 with 56 V and 5 pin to 7 pin cross over cable adapter Transmit Power Range 0 to +30 dBm (combined, to regional EIRP limit) (1 dB interval) Consumo 20 W Maximum [1] Input Voltage 44 V to 59 V Dimensiones y montaje Peso 0.7 kg (1.54 lbs.) without brackets Dimensiones 125 x 210 x 37 mm (4.9 x 8.3 x 1.5 in.) without brackets Pole Mount Included Sí Condiciones de uso Environmental IP55 Temperature 30°C to +55°C (-22°F to +131°F) Environmental Cover Included Sí General Channel Spacing Configurable on 5 MHz increments Channel Width 5 I 10 I 20 I 40 MHz MAC (Media Access Control) Layer Cambium proprietary and optionally standard 802.lln Physical Layer 2x2 MIMO/OFDM VLAN 802.lQ with 802.lp priority Subscribers per Sector Up to 120 Lite version limited to 10 ARQ Sí Modulation Levels (Adaptive) MCSO (BPSK) to MCS15 (640AM 5/6) GPS Synchronization Yes, via internal GPS or CMM4 with 56 V and 5 pin to 7 pin cross over cable adapter Quality of Service Three-level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast, and Station Priority Surge Suppression 1 Joule Integrated Encryption 128 bit AES (CCMP mode) FCCID Z8H80FT0020 Industry Canada Cert 109W-0020 Extend Coverage Areas: deploy the MP 3000 in places unreachable by the main tower or to add adjacent coverage for new subscribers with lower overall density Supports up to 64 subscriber modules Integrated 9 dBi Dual-Polarity Omni-directional antenna CE EN 301 893 V2.1.1 EN 302 502 V2.1.1 Inject New Capacity: deploy the MP 3000 to a set of customers demanding especially high capacity services Red y protocolos Ethernet Interfaced 100/lOOOBaseT, rate auto negotiated, 802.3at compliant Protocols Used IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH Network Management IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks CnMaestro™ 2X2 MIMO support with peak throughput of 600 Mbps Cloud or on-premises network management with cnMaestro
