Cambium Networks C050940A223A ePMP 4500 5 GHz 8x8 Access Point Radio (EU) EU cord)

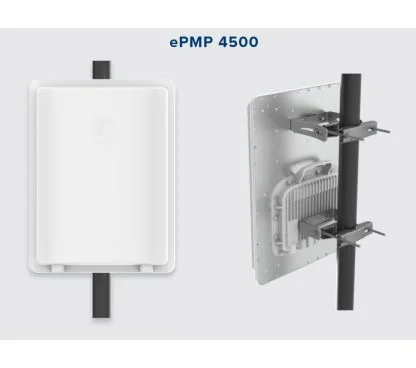

C050940A223A / ePMP4500 ePMP 4500 5 GHz 8x8 Access Point Radio (EU) EU cord), Integrated 90º 17 dbi Sector • High-performance, scalable and reliable access points for fixed wireless broadband • ePMP 4500 features MU-MIMO and up to 4 Gbps in performance • Low TCO with three-year hardware warranty • Interoperable with all Force 400 and 4500 Subscriber Modules The ePMP 4500 delivers more than 4 Gbps and supports up to 120 subscriber modules. Featuring 8x8 MU-MIMO, the 5 GHz ePMP 4500 can transmit to four Force 400 SM’s at the same time. This effectively quadruples the capacity of 2x2 systems and in the process, increases link budgets by 6 dB with downlink beamforming. The ePMP 4500 has an integrated 90º 8x8 MU-MIMO sector antenna. With TDD synchronization, ePMP 4500 networks can scale to thousands of end users leveraging a small number of channels. Antenna Integrated 8x8 MU-MIMO 90º Sector 17 dBi gain Channel Width 20 | 40 | 80 MHz Proprietary Physical Layer 8x8 MU-MIMO/OFDMA based on 802.11ax underlying technology Channel Spacing Configurable in 5 MHz increments Frequency Range Wide band operation 4910–6135 MH. (Note: Allowable frequencies and bands are dictated by individual country regulations.) MAC Layer (Media Access Control) Cambium proprietary Ethernet Interfaced 100/1000 BaseT, rate auto negotiated, 802.3bt compliant & Aux SFP+ port Supported Powering Methods 56V 60W PoE (included), standard 802.3bt PoE Supply, or cnMatrix Tower Switch, or wired DC input Protocols Used IPv4/IPV6, UDP, TCP, IP, ICMP,SNMPv2c, HTTPs, STP, SSH, IGMP snooping Network Management HTTPS, SNMPv2c, SSH VLAN 802.1Q with 802.1p priority Subscribers per Sector Up to 120 ARQ Yes Weight 14.66 kg (32.32 lb) with clamp Dimensions (H x W x D) 643 x 487 x 157 mm (25.3 x 19.2 x 6.2 in) GPS Antenna Connection 1 x 50 ohm, SMA Integrated GPS Antenna
